Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-006
Certification :
CE, SGS, UL, ROHS
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Connector Type :
E2000
Polish Type :
APC
Color :
Green
Insertion Loss :
0.35dB
Return Loss :
55dB
Cable OD :
2.0x3.0
Housing :
Plastic
Ferrule :
Cameric
Description

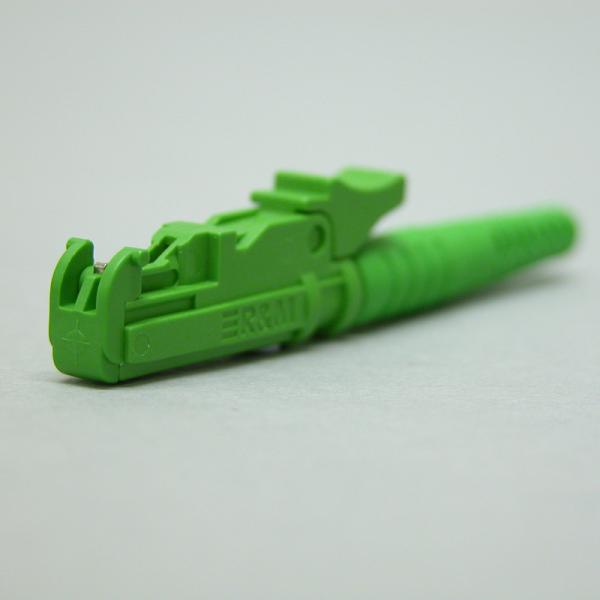

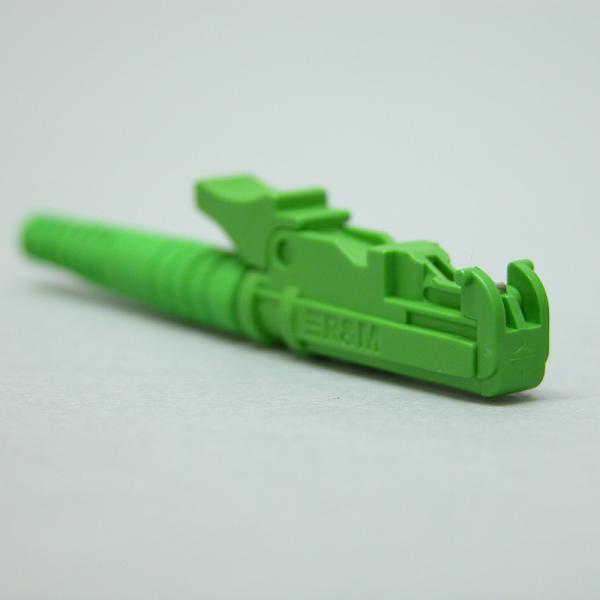

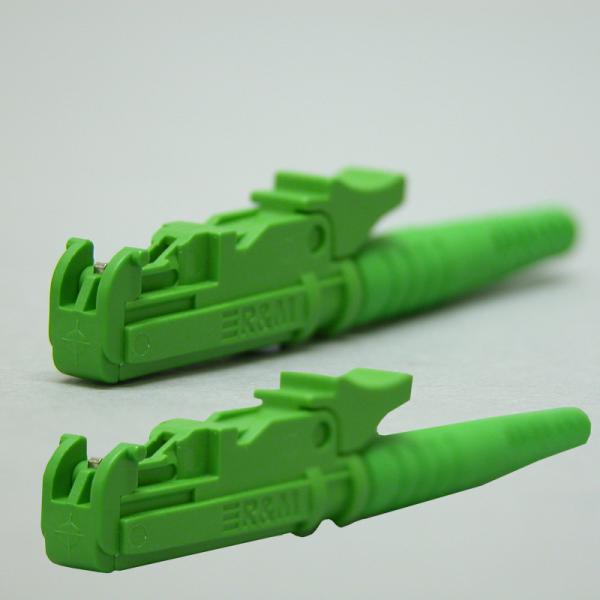

3.0mm E2000 APC Fiber Optic Field Assembly Connector

Field assembly connector is very easy installable and re-usable field assembly connector which the fiber can be connected/disconnected only by on/off of a small latch attached on connector body, which is composed of two parts of a connector body and a boot it is designed to have the structure and the function to construct the more economic FTTH network. FTTX is the common abbreviation for several configurations of fiber networks, that can be organized in two groups: FTTP/FTTH/FTTB (Fiber the premises (home or building)) and FTTC/N (fiber to the node, with copper wires completing the connection).

Features / Benefits

● No need to use special Jig for assembling;
● Can be reusable about 10 times;
● Various cable can be acceptable with one type FAC (Ø250-900μm,1.6×2.0mm,2.0×3.0mm,3.0mm);
● RoHS compliant;
● Reusable termination capability [Up to 5 times];
● Easy to deploy fiber solution;
● High success rate of connections;
● Low Insertion & Back Reflection;
● No special tools required.

Application

● FTTH end user termination;
● Patch panels;
● Rapid repair of optical networks;
● Direct equipment termination.

Technical Parameter

Category Specification
Applicable for Ф2.0 x 3.0mm Indoor Drop Cable
Fiber mode 9/125μm Singlemode
Polish Type APC / UPC
Dimension 55mm
Housing Green / Blue PC Plastic
Ferrule Material Ceramic(Zirconia)
Operation time S About 50(no fiber cut)
Insertion Loss dB ≤ 0.50
Insertion Loss Typical value dB ≤ 0.30
Return Loss dB ≥ 45.0
Fastening strength of naked fiber N ≥ 5
Tensile strength N ≥ 50
Reusable Time ≥ 10 times
Operating Temperature -40~+75
On-line tensile strength (10N) dB ΔIL≤ 0.3
Mechanical durability (500 times) dB ΔIL≤ 0.3

Drop-off test

(drop-off height4m,once per direction,totally 3 times)

dB ΔIL≤ 0.3
Conformance TIA/EIA 604-3

3.0mm E2000 APC Fiber Optic Field Assembly Connector 0.35dB Insertion Loss

Hangalaxy Workshop

3.0mm E2000 APC Fiber Optic Field Assembly Connector 0.35dB Insertion Loss

Hangalaxy Exhibition Activities

3.0mm E2000 APC Fiber Optic Field Assembly Connector 0.35dB Insertion Loss

Advantages of Mechanical Splicer


> Mechanical splices require no power supplies;
> Many mechanical fiber splice designs require no extra tools beyond a fiber stripper and fiber cleaver;
> They can be used in situations where fusion splicing is not practical or impossible;
> Mechanical splices can be made within a couple of minutes, this makes it ideal for temporary connections.

Packing Details for Reference (or Meet Customized Standard)

Outer Packing

Size (cm) 49*32*32.5 49*32*17
QTY (Gift Box/Box) 50 50
QTY (Pcs/Box) 1000 1000
N.W (KG/Box) 6.8 3.4
G.W (KG/Box) 12 6.5kg

Applicable for 3.1 x 2.0mm Drop cable,φ0.25 mm & φ0.90 mm Fiber
Optical fiber diameter 125μm (652 & 657)
Tight buffer diameter (μm) 250 μm
Fiber mode Single & multi mode
Operation time About 60s (no fiber cut)
Insert loss ≤ 0.15dB (1310nm & 1550nm)
Return loss ≤ -40dB
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Repeatability (10 times) △ IL ≤ 0.2dB △ RL ≤ 5dB

Notes:

All materials are picked up from the source, 100% factory tested to ensure quality products.
