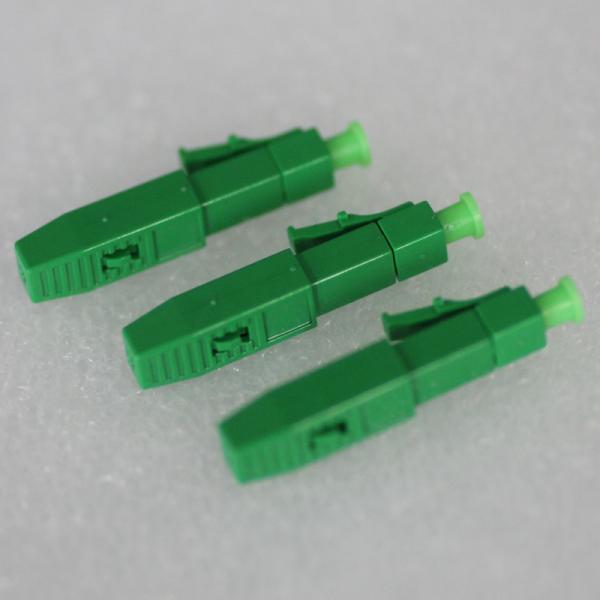

0.9 LC APC Singlemode Fiber Optic Field Assembly Connector

The Field Assembly Connectors feature a pre-polished ferrule that couples to the fiber being terminated by precision mechanical alignment, insuring low loss with a proprietary gel. Compared with pre-polished field assembly connector, straight-through field assembly connector lessens one joint point and achieves low loss. Ferrule in optical fiber straight-through fast connector have no reserved fiber, there is no splice point in V-Groove, fiber end can be checked when construction, and without intermittent points in it. This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field. Assembly of the LC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. No electrical power supply is needed. Just Strip the buffer, cleave and clean the fiber and then insert the fixed-length fiber through the ferrule of the connector without matching gel and pre-embedded fiber. Installation takes just minutes and couldn't be easier.

Keyed Characteristics

● Easy assembly process;
● Available in LC, SC, and ST connector styles;
● Available in multimode or singlemode versions;
● Factory polishing eliminates loss concerns;
● Fiber can be reseated;
● No expensive tools required;
● No epoxy required;
● Anaerobic adhesive-style, field-installable connectors;
● Most robust connection, ideal for indoor and outside plant applications.

Technical Parameter

Application

● Fiber optic communication system and telecommunication networks;
● Fiber optic data transmission;
● Optical access network;
● Fibre to the Subscriber (FTTx) applications;
● Optical cable interconnection;
● Maintenance or emergency restoration of fiber networks;
● Repair/replacement requirements ; Fiber optic equipment.
