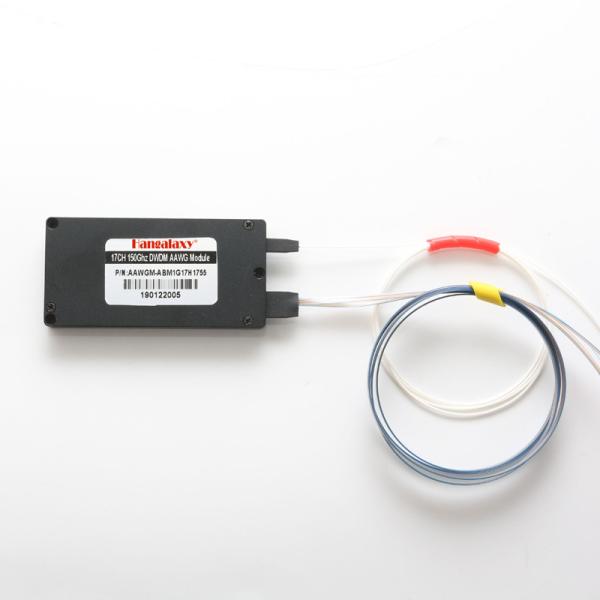

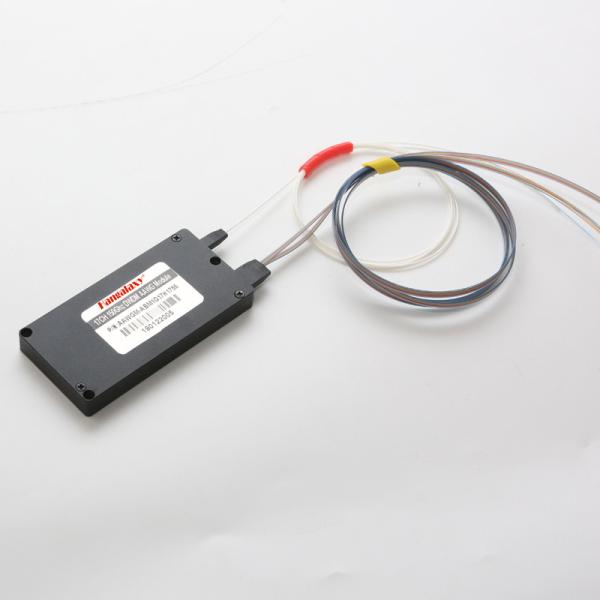

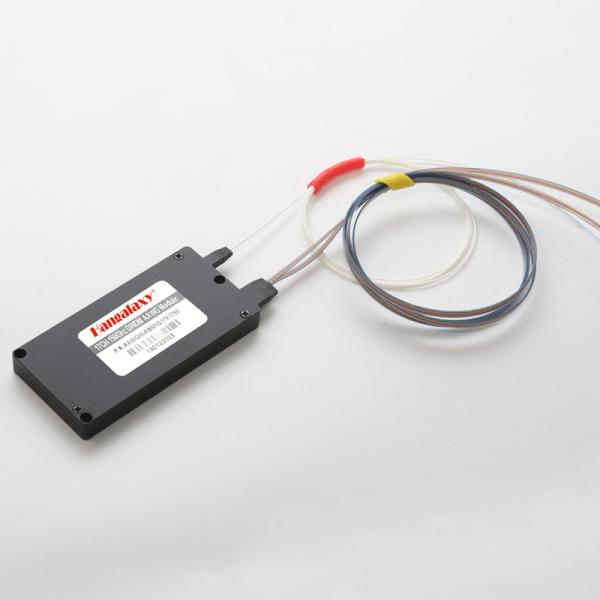

150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module
150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module
150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module
150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module
150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module
150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module
150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module
150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-051
Certification :
CE, FDA, RoHs, SGS
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5055PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Pass Band Type :
Gaussian
Channel Spacing :
150GHz
Channel Number :
17CH
Wavelength Accuracy :
0.05nm
1dB Pass Band :
0.2nm
Non-adjacent Crosstalk :
35dB
Adjacent Crosstalk :
26dB
Return Loss :
40dB
Description

150Ghz 17CH Athermal AAWG Module Fiber Optic PLC Splitter Module

The Hangalaxy Athermal AWG (Arrayed Waveguide Grating) is a high performance DWDM mux/demux device operating on 150GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics. These AWGs offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. Hangalaxy’s athermalization technology simplifies deployment of AWG multiplexers/demultiplexers by DWDM network providers.

Feature

• 17 Channels x 150GHz Mux/Demux;
• Flat-top Passband;
• Fully Passive Module;
• Operating Temperature Range from -40ºC to 85ºC;
• Low Insertion Loss & PDL;
• Low Crosstalk;
• High Uniformity;
• No Electronics Required;
• Compact Footprint;
• Telcordia GR-1209/GR-1221 Qualified.

Operating & Storage Conditions

Parameter Unit Min Max
Operating Temperature ℃ -40 85
Operating Humidity (non-condensing) % R.H. 0 90
Storage Temperature ℃ -40 85
Storage Humidity (non-condensing) % R.H. 0 90

Absolute Maximum Ratings

Parameter Conditions Unit Min Max
Optical Power at common port dBm 23

Physical Parameters

Parameter Min Type Max Unit
Length 80 mm
Width 40 mm
Height 9.6 mm
Fiber Type SMF-28e
Connector Type Single-mode LC/UPC

150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module

AAWG Module Workshop

150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module

150Ghz 17CH Athermal Fiber Optic CWDM DWDM AAWG Module / Fiber Optic PLC Splitter Module

Quality Guarantee

Hangalaxy has this fiber optical termination box in stock and ready to ship. This ABS box for FTTH network is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.
