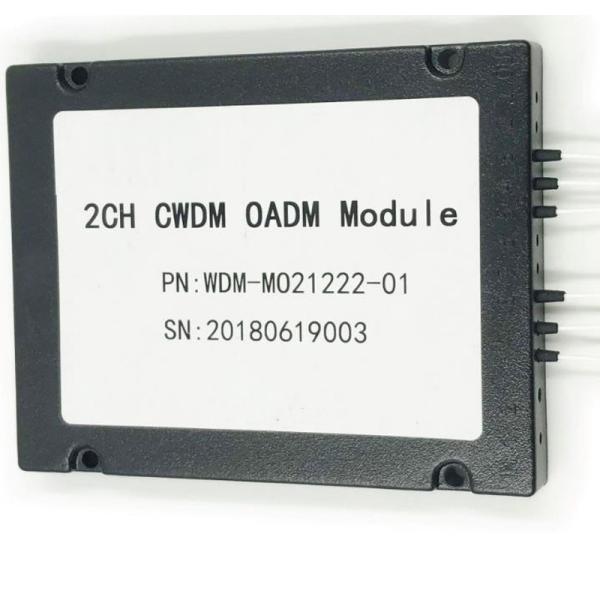

100G 96CH Fiber Optic CWDM DWDM AAWG Module Arrayed Waveguide Grating

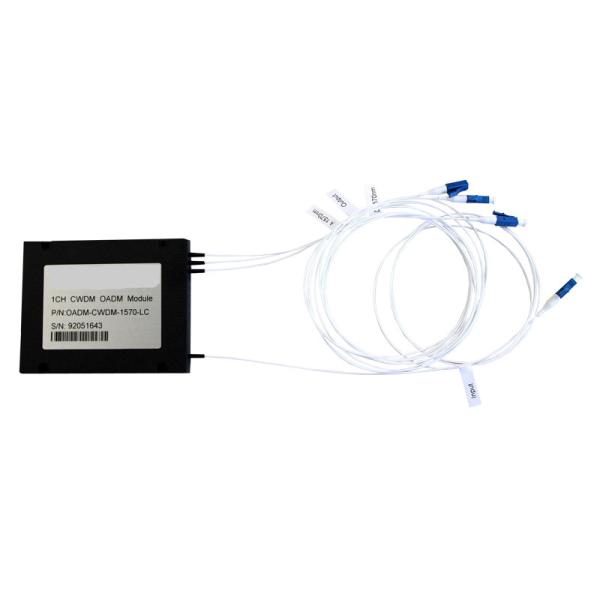

100G 96CH Fiber Optic CWDM DWDM AAWG Module Arrayed Waveguide Grating
100G 96CH Fiber Optic CWDM DWDM AAWG Module Arrayed Waveguide Grating
100G 96CH Fiber Optic CWDM DWDM AAWG Module Arrayed Waveguide Grating
100G 96CH Fiber Optic CWDM DWDM AAWG Module Arrayed Waveguide Grating
100G 96CH Fiber Optic CWDM DWDM AAWG Module Arrayed Waveguide Grating
100G 96CH Fiber Optic CWDM DWDM AAWG Module Arrayed Waveguide Grating
100G 96CH Fiber Optic CWDM DWDM AAWG Module Arrayed Waveguide Grating
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-201
Certification :
CE, FCC, RoHs, SGS, ISO9001
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5055PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Operating Wavelength :
1270 ~ 1611nm
Channel Spacing :
20nm
Channel Passband :
CWL±6.5nm
Adjacent Channel Isolation :
30dB
Directivity :
55dB
PDL :
0.2dB
Connector Type :
LC
Polish Type :
UPC
Description

100G 96CH Fiber Optic AAWG DWDM Mux Demux Module Arrayed Waveguide Grating

Hangalaxy's AWG Module Offers Accurate Channel and High Reliability Based on the Silica Which is from Silicon Technology and Complemented with Automated and Robust Packaging.

Keyed Characteristics


1. MUX/DEMUX Functionality;
2. Athermal Design, Electrical Power is Not Required;
3. Compact Package;
4. Multi-channel Number;
5. Gaussian, and Flat-top Filter Shape;
6. Low Insertion Loss,Low PDL,High Channel Isolation.

Application


1. Broadband Systems;
2. Optical Add/Drop Multiplexing;
3. Metro/Access Communication Networks;
4. Fiber Optic Instruments.

Technical Parameter

Parameter Unit Value
Pass Band Type - Flat-top Gaussian
Channel Spacing GHz 150
Channel Number CH 17
Wavelength Accuracy nm ±0.05
1dB Pass Band nm ≥0.38 ≥0.2
3dB Pass Band nm ≥0.58 ≥0.4
Insertion Loss1 dB ≤6.0 Typ.4.5 ≤3.5 Typ.2.8
Ripple dB ≤0.5 ≤1.5
Uniformity dB ≤1.5 ≤1.5
Adjacent Crosstalk dB ≥23 ≥26
Non-adjacent Crosstalk dB ≥29 ≥35
Total Crosstalk dB ≥21
Polarization Dependent Loss(PDL) dB ≤0.5 Typ.0.25 ≤0.7 Typ.0.35
PMD2 ps ≤0.5
Chromatic Dispersion2 ps/nm ±20
Return Loss dB ≥40

Fiber

 Input Port mm Φ0.9
Output Ribbon - -
Fan Out mm Φ0.9
Operation Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85
Package mm 80×40×9.6

Parameter Unit 16CH 18CH
Operating Wavelength nm 1270 ~ 1611
Channel Spacing nm 20
Channel Passband nm CWL±6.5
Insertion Loss (Without Connectors) Max. dB 1.6 1.8
Adjacent Channel Isolation Min. dB 30
Non-Adjacent Channel Isolation Min. dB 45
Directivity Min. dB 55
Return Loss Min. dB 45
Polarization Dependent Loss Max. dB 0.2
Polarization Mode Dispersion Max. dB 0.3
Passband Ripple Max. ps 0.5
Tensile Load Min. N 5
Power Handing Min. mW 300
Operating/Storage Temperature ℃ -40 ~ +80
Package Dimension (L x W x H) mm 50*50*6.6

100G 96CH Fiber Optic CWDM DWDM AAWG Module Arrayed Waveguide Grating

100G 96CH Fiber Optic CWDM DWDM AAWG Module Arrayed Waveguide Grating

Workshop

100G 96CH Fiber Optic CWDM DWDM AAWG Module Arrayed Waveguide Grating

The Hangalaxy Athermal AWG (Arrayed Waveguide Grating) is a high performance DWDM mux/demux device operating on 150GHz channel spacing without the need for temperature stabilization. The planar processed silica-on-silicon chips comprise arrayed channel waveguides to separate or combine multiple wavelengths. Athermal AWG s allow multiplexing and demultiplexing of DWDM signals over a wide operating temperature range, without the need for heater drive and monitoring electronics. These AWGs offer low insertion loss, excellent channel isolation, ease of fiber handling, and long-term reliability in a compact package. Hangalaxy’s athermalization technology simplifies deployment of AWG multiplexers/demultiplexers by DWDM network providers.
