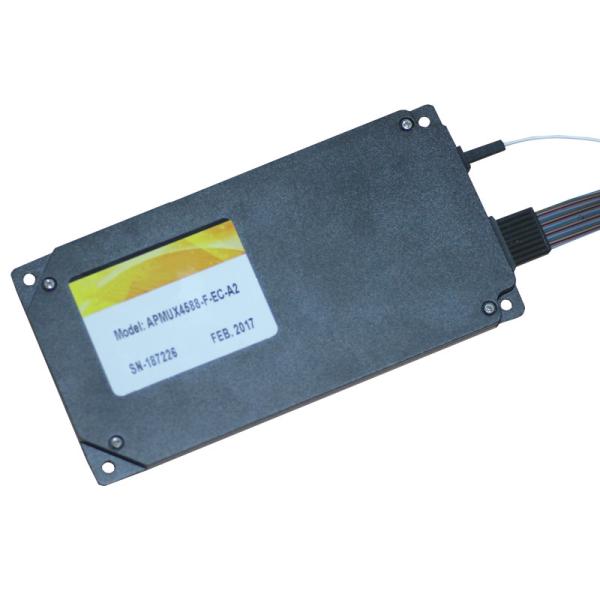

48CH LC UPC Fiber Optic AWG DWDM Demux Mux Optical Mudule

DWDM(Dense Wavelength Division Multiplexing)is a Technology That Puts Data Different Sources Together on an Optical Fiber,with Each Signal Carried at the Same Time on Its Own Separate Light Wavelength.

Keyed Characteristics


1. Low Insertion Loss;
2. High Channel Isolation;
3. Excellent thermal stability;
4. High Stability and reliability;
5. Telcordia compliant;
6. RoHS compliant.

Application


● Metro/Access communication networks;
● Fiber optic instruments;
● Mobile optical networks.

Technical Parameter

Parameter Unit Value
Pass Band Type - Flat-top Gaussian
Channel Spacing GHz 150
Channel Number CH 17
Wavelength Accuracy nm ±0.05
1dB Pass Band nm ≥0.38 ≥0.2
3dB Pass Band nm ≥0.58 ≥0.4
Insertion Loss1 dB ≤6.0 Typ.4.5 ≤3.5 Typ.2.8
Ripple dB ≤0.5 ≤1.5
Uniformity dB ≤1.5 ≤1.5
Adjacent Crosstalk dB ≥23 ≥26
Non-adjacent Crosstalk dB ≥29 ≥35
Total Crosstalk dB ≥21
Polarization Dependent Loss(PDL) dB ≤0.5 Typ.0.25 ≤0.7 Typ.0.35
PMD2 ps ≤0.5
Chromatic Dispersion2 ps/nm ±20
Return Loss dB ≥40

Fiber

 Input Port mm Φ0.9
Output Ribbon - -
Fan Out mm Φ0.9
Operation Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85
Package mm 80×40×9.6

Parameter Unit 16CH 18CH
Operating Wavelength nm 1270 ~ 1611
Channel Spacing nm 20
Channel Passband nm CWL±6.5
Insertion Loss (Without Connectors) Max. dB 1.6 1.8
Adjacent Channel Isolation Min. dB 30
Non-Adjacent Channel Isolation Min. dB 45
Directivity Min. dB 55
Return Loss Min. dB 45
Polarization Dependent Loss Max. dB 0.2
Polarization Mode Dispersion Max. dB 0.3
Passband Ripple Max. ps 0.5
Tensile Load Min. N 5
Power Handing Min. mW 300
Operating/Storage Temperature ℃ -40 ~ +80
