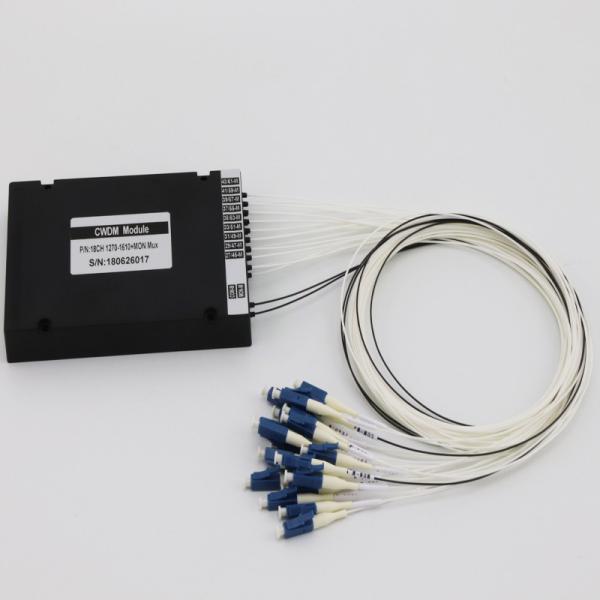

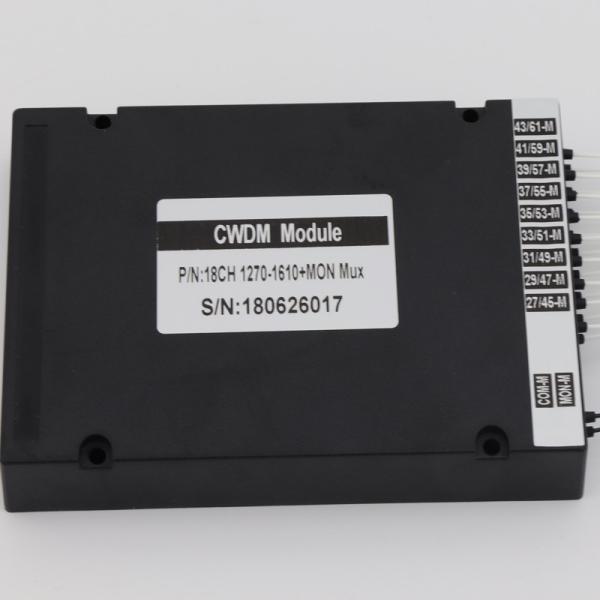

18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-115
Certification :
CE, FCC, RoHs, SGS, ISO9001
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5055PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Operating Wavelength :
1270 ~ 1611nm
Channel Spacing :
20nm
Channel Passband :
CWL±6.5nm
Adjacent Channel Isolation :
30dB
Directivity :
55dB
PDL :
0.2dB
Description

18CH LC UPC CWDM Demux Mux Optical Mudule

DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 100GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Fixed Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application.

Keyed Characteristics


● Telcordia GR-1221 compliance;
● High temperature stability;
● Low insertion loss;
● Epoxy-free optical path;
● Compact size.

Application


● Metro/Access communication networks;
● Fiber optic instruments;
● Mobile optical networks.

Technical Parameter

Parameter Unit 16CH 18CH
Operating Wavelength nm 1270 ~ 1611
Channel Spacing nm 20
Channel Passband nm CWL±6.5
Insertion Loss (Without Connectors) Max. dB 1.6 1.8
Adjacent Channel Isolation Min. dB 30
Non-Adjacent Channel Isolation Min. dB 45
Directivity Min. dB 55
Return Loss Min. dB 45
Polarization Dependent Loss Max. dB 0.2
Polarization Mode Dispersion Max. dB 0.3
Passband Ripple Max. ps 0.5
Tensile Load Min. N 5
Power Handing Min. mW 300
Operating/Storage Temperature ℃ -40 ~ +80
Package Dimension (L x W x H) mm 50*50*6.6

18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength

18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength

18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength

Hangalaxy Factory

18CH LC UPC Fiber Optic CWDM DWDM AAWG Module 1270 ~ 1611nm Operating Wavelength
