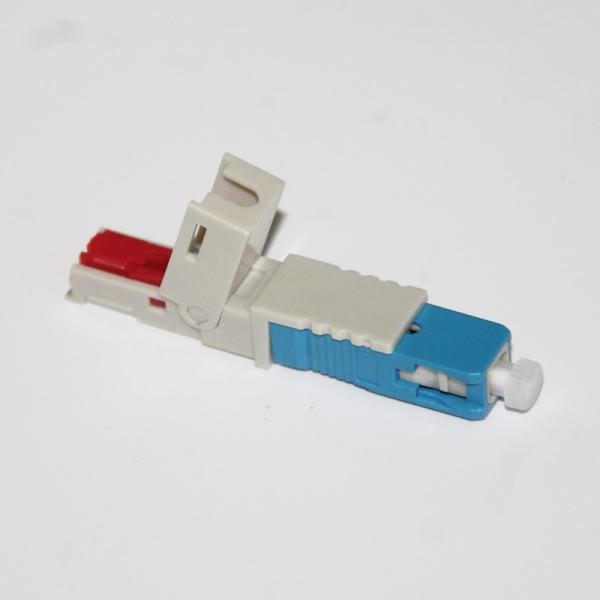

SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-990
Certification :
CE, UL, FCC, RoHs
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Housing :
Plastic
Fiber Mode :
Singlmode, OS2
Fiber Count :
1
Cable OD :
2.0x3.0mm
Color :
Blue
Connector Type :
SC
Ferrule :
Cameric
Length :
10mm
Description

3.0mm SC APC Singlemode SOC Fiber Optic Field Assembly Connector

Hangalaxy offers a board variety of fiber optic cable for all indoor access and structure cabling application such as simplex, duplex, tight buffer, distribution, breakout and ribbon cable. Fitting most of the indoor application environment , whatever for short distance cabling or premises structure cabling. G652D, G657A1/A2, OM1 62.5/125μm, OM2 50/125μm, OM3 and OM4 fibers are available. Hangalaxy also provides the customization service on the fiber, colours and construction of the cables for catering different cases.

Keyed Characteristics


● Patchcord preparation;
● Indoor short distance cabling;
● Small bending, light weight and highly flexible;
● Easy to Install and terminate;
● Flame retardant or LSZH jacket is available;
● Comply to TIA/EIA568b-3 and ISO/IEC11801.

Application


● Telecommunication networks;
● Wide Area Networks;
● Industrial, medical & military;
● Local Area Networks;
● Test equipment;
● Active device termination;
● Data processing networks.

Cable Technical Datasheet

No. Items Unit Specification
Single-mode
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation(max.) 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
10 Fiber Type Corning SMF28-e

Technical Parameter

Cable Design
Fiber Count 1
Buffering Diameter 900μm
Tight Buffer Type Standard – strip up to 10cm or Easy strip
Tight Buffer Colour White (standard)
Tensile Strength Elements and/or Armored Layer 1 Aramid yarn
Outer Jacket Material

PVC/Flame-retardant, non-corrosive / low-smoke, zero-halogen

(FRNC / LSZH)
Outer Jacket Colour Yellow / Orange / Aqua
Outer Jacket Nominal Thickness 0.35mm

SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm

SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm

SC APC Field Assembly Connector Singlemode SOC Cameric Ferrule 2.0x3.0mm

Hangalaxy provides fast fiber optical pre-installed connector for both MultiMode as SingleMode fiber, compatible with most of today’s switch vendors. Hangalaxy’s Dual Fiber SFP’s support data ranges between 100 Mbit/s and 4.25 Gbps and distances up to 160 km. Go to the Hangalaxy SFP product range.
