Pre Installed Fiber Optic Field Assembly Connector / Fc Apc Fiber Connector
Pre Installed Fiber Optic Field Assembly Connector / Fc Apc Fiber Connector
Pre Installed Fiber Optic Field Assembly Connector / Fc Apc Fiber Connector
Pre Installed Fiber Optic Field Assembly Connector / Fc Apc Fiber Connector
Pre Installed Fiber Optic Field Assembly Connector / Fc Apc Fiber Connector
Pre Installed Fiber Optic Field Assembly Connector / Fc Apc Fiber Connector
Pre Installed Fiber Optic Field Assembly Connector / Fc Apc Fiber Connector
Pre Installed Fiber Optic Field Assembly Connector / Fc Apc Fiber Connector
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-95
Certification :
CE, UL, FCC, RoHs
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Housing :
Plastic
Fiber Mode :
Singlmode, OS2
Fiber Count :
1
Cable OD :
2.0x3.0mm
Color :
Black
Connector Type :
FC
Ferrule :
Cameric
Insertion Loss :
0.35dB
Description

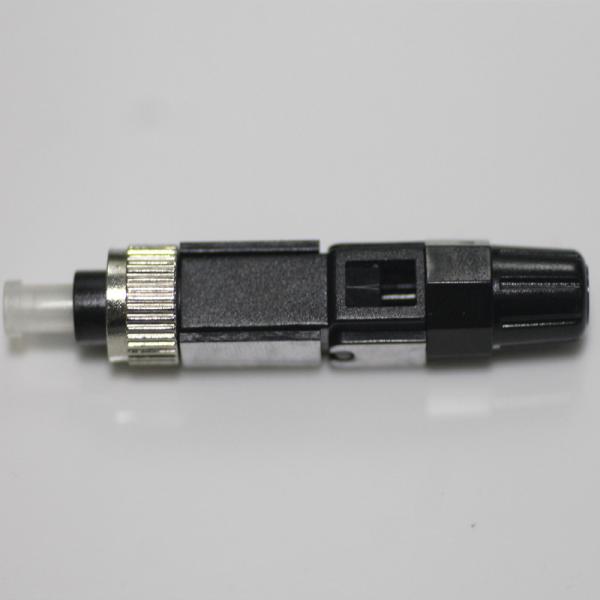

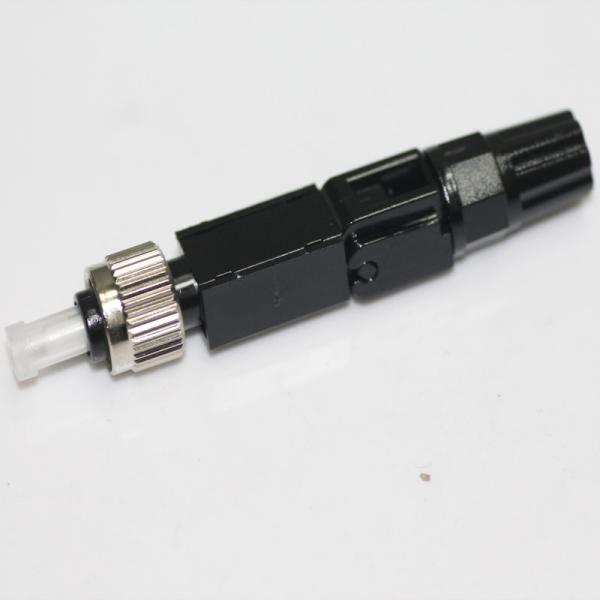

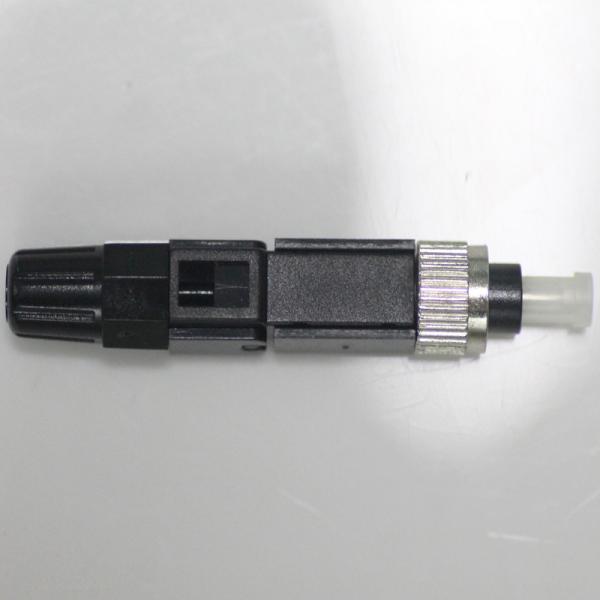

FC APC Singlemode Pre-installed Fiber Optic Field Assembly Connector

The FTTH service nowadays has stretched its reach all around the world, and continues to expand. Naturally, optical fiber constructed to the home is expected to increase in various areas. Under such circumstance, a field assembly connector is commonly employed to streamline the installation process and simplify fiber storage. Thus field assembly connectors have found their position in the following occasions: inside closure, outside cabinet of home, inside ONU, and in premise cabinet. Then, how exactly installers can benefit from field assembly connector? This article will explain it in details.

What Is Field Assembly Connector?


Field assembly connector, also known as fast/quick connector, is a pre-polished, field installable connector that designed for simple and fast field termination of single fibers. Eliminating the need for time-consuming polishing or adhesives. The heart of this fast connector is a pre-polished ferrule, and there exists a mechanical splice inside the connector body. Which enables a positive connection in the mechanical splice, thus achieving low insertion loss termination.

Keyed Characteristics

√ 12 Tight Buffered Fiber;
√ Ruggedized versions with additional jacketing are available;
√ Environmentally Stable;
√ Excellent Uniformity.

Cable Technical Datasheet

No. Items Unit Specification
Single-mode
1 Mode Field Diameter 1310nm μm 9.2±0.4
1550nm 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation(max.) 1310nm dB/km ≤0.4
1550nm dB/km ≤0.3
10 Fiber Type Corning SMF28-e

Technical Parameter

Cable Design
Fiber Count 1
Buffering Diameter 900μm
Tight Buffer Type Standard – strip up to 10cm or Easy strip
Tight Buffer Colour White (standard)
Tensile Strength Elements and/or Armored Layer 1 Aramid yarn
Outer Jacket Material

PVC/Flame-retardant, non-corrosive / low-smoke, zero-halogen

(FRNC / LSZH)
Outer Jacket Colour Yellow / Orange / Aqua
Outer Jacket Nominal Thickness 0.35mm

Pre Installed Fiber Optic Field Assembly Connector / Fc Apc Fiber Connector

Pre Installed Fiber Optic Field Assembly Connector / Fc Apc Fiber Connector

Pre Installed Fiber Optic Field Assembly Connector / Fc Apc Fiber Connector

Hangalaxy provides fast fiber optical pre-installed connector for both MultiMode as SingleMode fiber, compatible with most of today’s switch vendors. Hangalaxy’s Dual Fiber SFP’s support data ranges between 100 Mbit/s and 4.25 Gbps and distances up to 160 km. Go to the Hangalaxy SFP product range.
