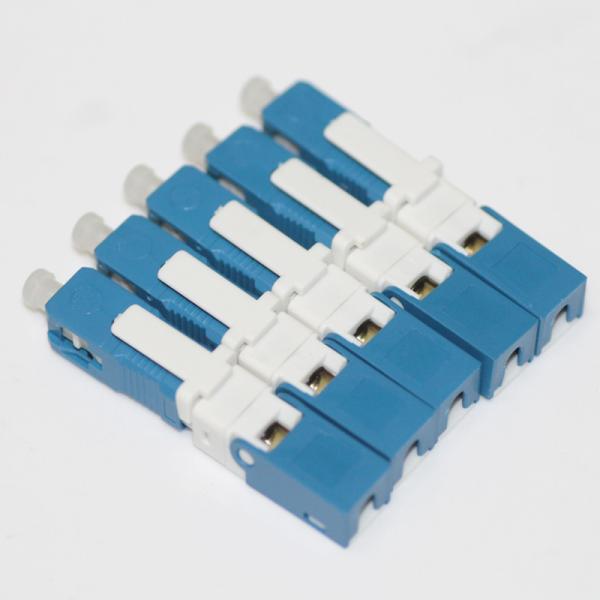

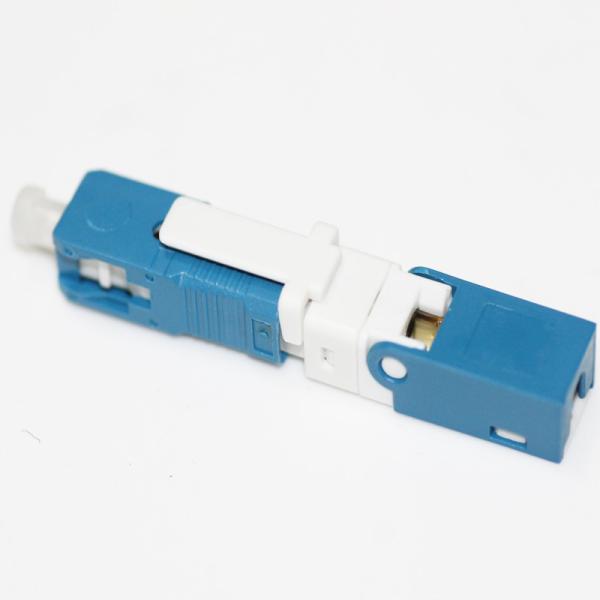

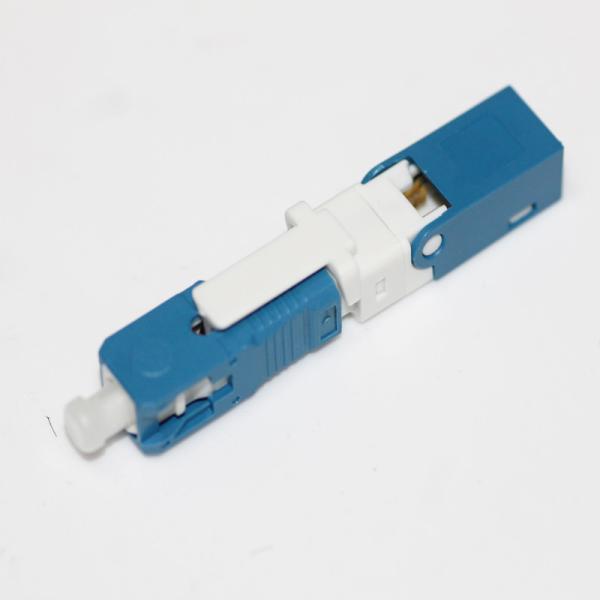

SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly
SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly
SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly
SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly
SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly
SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly
SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly
SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-0589
Certification :
CE, UL, FCC, RoHs
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Connector Type :
SC
Polish Type :
UPC
Color :
Blue
Cable OD :
2.0x3.0mm
Fiber Mode :
Singlemode
Fiber Count :
1
Insertion Loss :
0.35dB
Return Loss :
45dB
Description

Drop Cable SC UPC Fiber Optic Singlemode Pre-terminated Field Assembly Connectors

Hangalaxy provides an array of Fiber Connector FC, SC, ST, LC, MU, MTRJ, E2000 configurations. We Supply Single-mode, Multi-mode, Angle-polished Fiber Connector assemblies with stable qualities that use high quality Ceramic Ferrules. Ferrule -Two main Ceramic Ferrulesizes are used for Fiber Connectors. The ferrule OD size f2.5mm is for ST, FC and SC Fiber Connectors. The ferrule OD size f1.25 mm is for the MU and LC Fiber Connector Versions. PC or UPC or APC refer to how we polish the ferrule of the Fiber Connectors. Single mode fiber connectors can be with PC, or UPC or APC polish, while Multimode Fiber Connectors only with PC or UPC polish.

Features & Applications

1. No epoxy and polishing required;

2. No expensive tools required;

3. Quick and easy fiber termination;

4. Precision mechanical alignment insures low insertion loss;

5. Superior optical performance;

6. Streamlined component design, convenient operation.

Application

1. Uses proven, molded v-groove technologies;

2. Allow optical continuity to be verified by use of visual fault locator (VFL);

3. Fiber optic communication system and telecommunication networks;

4. Fiber optic data transmission;

5. CATV;

6. Optical access.

Technical Parameter

Part No. HGYN-0589
Interferometer UPC Type APC Type
Radius Of Curvature 7mm~25mm 5mm~12mm
Apex Offset Max. 50µm Max. 50µm
Fiber Height -50nm~50nm -50nm~50nm
Tile Error on APC 8˚ None ±0.3
Operating temp. -40℃～+70℃
Storage temp. -40℃～+80℃

Connector Type SC
Conformance TIA/EIA 604-3
Ferrule Ceramic(Zirconia)
Housing Color

Single Mode PC type: Blue

Single Mode APC type: Green
Cable type Ф3.0mm
Dimension 58mm

SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly

SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly

For More Items Related Fast Connector as bellow

SC UPC Fiber Optic Drop Cable Singlemode Pre Terminated Field Assembly
