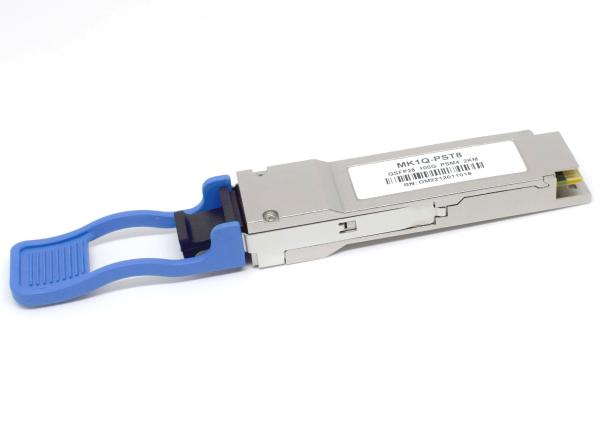

100G QSFP28 transceiver 100G PSM4 10km Module Optical Transceiver Module
100G QSFP28 transceiver 100G PSM4 10km Module Optical Transceiver Module
Specifications
Brand Name :
Optowix
Model Number :
MK1Q-LRTA
Certification :
CE
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MK1Q-PSTA
Product Name :
100G QSFP28 PSM4 10km module
SpeedRate :
100G
TX :
4X25G DML Laser
RX :
4X25G PIN receiver
Distrance :
10km
Warranty :
12 Months
Application :
Datacenter
Interface :
LC duplex
Description

Features

  • MPO-12 optical interface
  • Maximum link length up to 10km
  • Up to 25.78125Gb/s data links per lane
  • +3.3 V power supply
  • QSFP28 MSA compliant package
  • Hot Pluggable
  • High performance signal mode DML transmitter
  • High sensitivity PIN/TIA optical receiver
  • Single Mode operation
  • Case Operating Temperature: 0 to 70ºC
  • Data and Control Interfaces

Applications

  • 100G BASE Ethernet
  • InfiniBand EDR interconnects
  • Enterprise networking

Standards

  • QSFP28 MSA
  • SFF-8436,8636
  • IEEE802.3ba-2018

Ordering Information

Part Number Product Description
MK1Q-PSTA QSFP28, 100Gbps, PSM4, SM, 10km, 0ºC ~ +70ºC

Product Description

The MK1Q-PSTA QSFP28 optical transceiver is intended for up to 10km reach service with four-lane
25.78125G data rate. It is based on 3.3V DC power supply and operates in the commercial temperature range. It is
compliant with QSFP MSA , SFF-8436 , SFF-8636 and PSM4 MSA. Digital diagnostic functions are available via
I2C interface, and the control functions can be achieved by LVTTL interfaces on the host, mainly including Module
Select(ModSelL), Module Reset(ResetL), Low Power Mode(LPMode). The transceiver incorporates a four-laser
array which is usually DFB , four-PIN diode array , a high performance CDR integrated four drivers and TIAs IC
separately. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device can operate in
Class IV safely>

Absolute Maximum Ratings

Parameter Symbol Min Typ Max Unit
Power Supply Voltage Vcc -0.3 3.6 V
Storage Temperature Range Ts -40 85 °C
Relative Humidity - Storage RHS 5 95 %
Relative Humidity - Operating RHO 5 85 %

Recommended Operating Conditions

Parameter Symbol Min Typ Max Unit
Case Operating Temperature Range Tc 0 - 70 °C
Power Supply Voltage Vcc 3.135 - 3.465 V
Module Supply Current IIN - - 1000 mA
