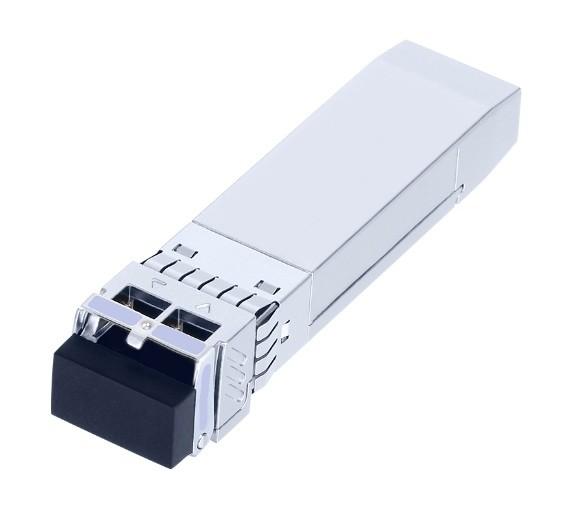

10G SFP+ CWDM 1470nm~1610nm 40km Transceiver Fiber Optic Transceiver Module
10G SFP+ CWDM 1470nm~1610nm 40km Transceiver Fiber Optic Transceiver Module
Specifications
Brand Name :
Optowix
Model Number :
MF1H-CWTE-Cxx
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MF1H-CWTE-Cxx
Product Name :
10.3Gbps SFP+ CWDM Transceiver, Single Mode, 40km Reach, Module
SpeedRate :
10G
Distrance :
40km
Interface :
duplex LC
Wavelength :
CWDM, 1470nm~1610nm
Environment :
0ºC ~ 70ºC
Description

10.3Gbps SFP+ CWDM Transceiver, Single Mode, 40km Reach

Features
  • Supports up to 10.7Gbps bit rates
  • Hot-pluggable SFP+ footprint
  • CWDM Cooled EML laser and PIN photodiode, Up to 40km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real Time Digital Diagnostic Monitoring
  • Operating case temperature: Standard: 0 to +70°C​

Applications

  • 10Gbps CWDM Optical systems
  • 10GBASE-ER at 10.3125Gbps
  • 10GBASE-EW at 9.953Gbps
  • LTE systems
  • Other Optical links​
Standards
  • SFP+ MSA
  • SFF-8472
Ordering Information
Part NumberProduct Description
MF1H-CWTE-CxxSFP+ 10G CWDM 1470nm~1610nm 40km 0ºC ~ +70ºC,
λC Wavelength Guide
CodeλCUnitCodeλCUnitCodeλCUnitCodeλCUnit
C111470nmC121490nmC131510nmC141530nm
C151550nmC161570nmC171590nmC181610nm



Description

  • The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF.
  • The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
  • The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings
10G SFP+ CWDM 1470nm~1610nm 40km Transceiver Fiber Optic Transceiver Module

Recommended Operating Conditions
ParameterSymbolMinTypicalMaxUnit
Operating CaseTc0 +70°C
Power Supply VoltageVcc3.1353.303.465V
Power Supply CurrentIcc 320mA
Data Rate 1.010.310.7Gbps

Optical and Electrical Characteristics
10G SFP+ CWDM 1470nm~1610nm 40km Transceiver Fiber Optic Transceiver Module
