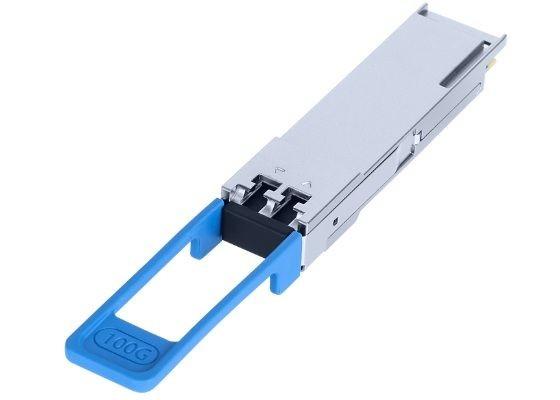

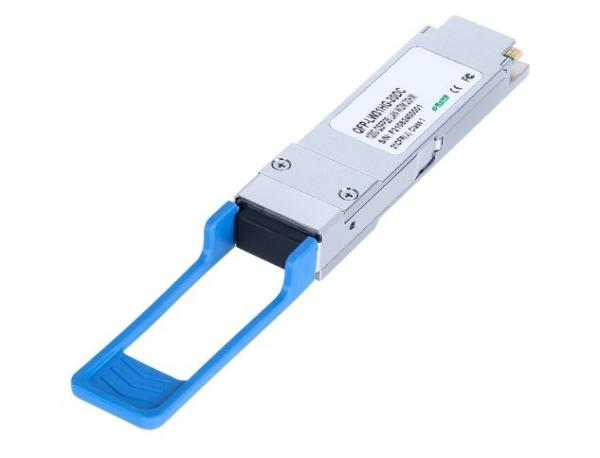

100G QSFP28 LR4 20km Transceiver Fiber Optic Transceiver Module
100G QSFP28 LR4 20km Transceiver Fiber Optic Transceiver Module
100G QSFP28 LR4 20km Transceiver Fiber Optic Transceiver Module
100G QSFP28 LR4 20km Transceiver Fiber Optic Transceiver Module
Specifications
Brand Name :
Optowix
Model Number :
MK1Q-LRTC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MK1Q-LRTC
Product Name :
100Gbps QSFP28 Transceiver, Single Mode, 20km Reach,Module
SpeedRate :
100G
Distrance :
20km
Interface :
Duplex LC
Environment :
0°C~+70°C
Description

100Gbps QSFP28 Transceiver, Single Mode, 20km Reach

Features
  • Hot-pluggable QSFP28 form factor
  • Supports 103.1Gb/s aggregate bit rates
  • Maximum link length of 20km on Single Mode Fiber (SMF)
  • Power dissipation < 3.5W
  • Built-in digital diagnostic functions
  • Built-in CDR
  • 4x25.78Gb/s DFB-based LAN-WDM transmitter
  • Duplex LC receptacles
  • Single 3.3V power supply
  • RoHS compliant
  • Operating case temperature: 0~+70°C

Applications

  • 100GBASE-LR4 100G Ethernet
Standards
  • QSFP28 MSA
  • IEEE 802.3ba
Ordering Information
Part Number Product Description
MK1Q-LRTC 100G QSFP28 LAN WDM4 LC 20km, 0°C~+70°C


Description

  • MK1Q-LRTC is 100Gb/s QSFP28 LR4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 LR4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber
Absolute Maximum Ratings

Module performance is not guaranteed beyond the operating range.

Exceeding the limits below may damage the transceiver module permanently.

100G QSFP28 LR4 20km Transceiver Fiber Optic Transceiver Module

Recommended Operating Condition
100G QSFP28 LR4 20km Transceiver Fiber Optic Transceiver Module

Electrical Specification

100G QSFP28 LR4 20km Transceiver Fiber Optic Transceiver Module

Optical Specification

100G QSFP28 LR4 20km Transceiver Fiber Optic Transceiver Module
