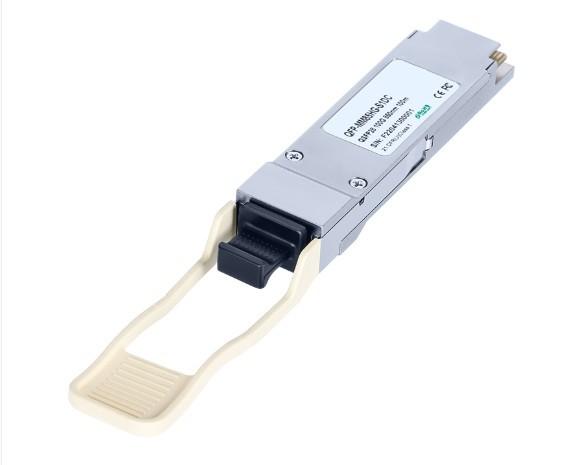

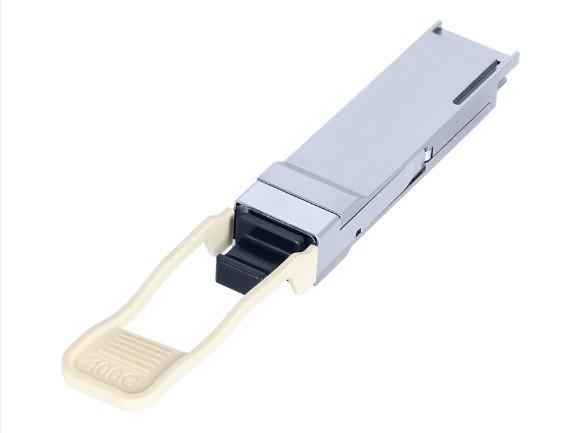

100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module
100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module
100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module
100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module
Specifications
Brand Name :
Optowix
Model Number :
MK1Q-85T3
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MK1Q-85T3
Product Name :
100Gbps QSFP28 Transceiver, Single Mode, 100m Reach,Module
SpeedRate :
100G
Distrance :
100m
Wavelength :
850nm
Interface :
MPO
Environment :
0°C~+70°C
Description

100Gbps QSFP28 Transceiver, Single Mode, 100m Reach

Features
  • Four-channel full-duplex transceiver
  • 25.78Gb/s data rate per channel
  • Maximum link length of 70m on OM3(MMF) ,100m on OM4 (MMF)
  • Power dissipation < 2.5W
  • Built-in digital diagnostic functions
  • Built-in CDR
  • 850nm VCSEL transmitter
  • Good EMI performance
  • Single 3.3V power supply
  • RoHS compliant
  • Operating case temperature: 0~+70°C

Applications

  • 100GBASE-SR4 100G Ethernet
  • 40GBASE-SR4 40G Ethernet
  • High-speed interconnects within/between switches, routers and transport equipment
  • Server-server clusters
  • Super-computinginterconnections
  • Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane
Standards
  • QSFP28 MSA
  • IEEE 802.3bm
Ordering Information
Part Number Product Description
MK1Q-85T3 100G QSFP28 850nm MPO 100m, 0°C~+70°C


Description

  • MK1Q-85T3 is 100Gb/s QSFP28 SR4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3bm. QSFP28 SR4 is an assembly of four full-duplex lanes, where each lane is capable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 103.125Gb/s.
Absolute Maximum Ratings

Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of the data sheet. Exposure to absolute maximum ratings will cause permanent damage and/or adversely affect device reliability.

100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module

Recommended Operating Condition
100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module

Electrical Specification

100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module

Optical Specification

100G QSFP28 850nm 100m Transceiver Fiber Optic Transceiver Module
