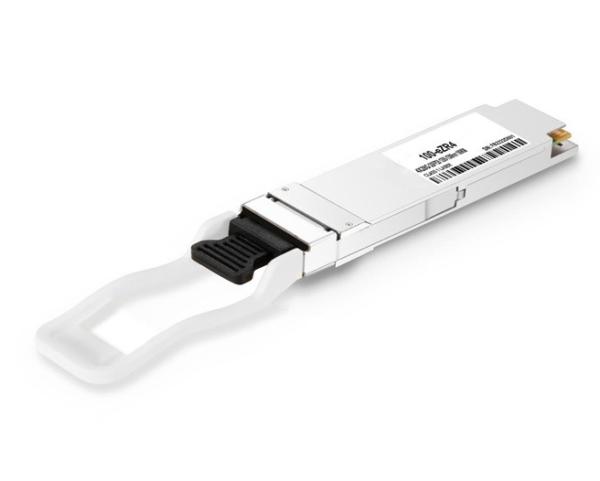

100G QSFP28 Transceiver EZR4 100km Transceiver Module 100GBASE-EZR4
100G QSFP28 Transceiver EZR4 100km Transceiver Module 100GBASE-EZR4
Specifications
Brand Name :
Optowix
Model Number :
MK1Q-ZRTH
Certification :
CE
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MK1Q-ZRTH
Product Name :
100G eZR4 100km QSFP28 module
SpeedRate :
100G
TX :
4X25G EML Laser
RX :
4X25G SOA receiver
Distrance :
100km
Warranty :
12 Months
Application :
Datacenter
Interface :
LC duplex
Description

100G QSFP28 Transceiver EZR4 100km Module Optical Transceiver Module 100GBASE-EZR4

Features

  • Support line rates from 103.125 Gb/s;
  • Lane bit rate 25.78 Gb/s 100GE
  • Up to 100km transmission with KR4-FEC.
  • LAN WDM EML laser and PIN receiver with SOA;
  • Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
  • High speed I/O electrical interface (CAUI-4);
  • I2C interface with integrated Digital Diagnostic monitoring;
  • QSFP28 MSA package with duplex LC connector;
  • Single +3.3V power supply;
  • Maximum power consumption 6 W;
  • Operating case temperature: 0 to +70 °C;
  • Complies with EU Directive 2015/863/EU;
Applications
  • 100GBASE-ZR4 Ethernet
  • 100G Datacom& Telecom connections

Standards

  • SFF8679,SFF-8636
  • SFF-8665, SFF8661
  • IEEE 802.3ba,IEEE 802.3bm

Product Description

MK1Q-ZRTH is designed for 100km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit
Storage Temperature TS -40 85 °C
Maximum Supply Voltage VCC -0.5 3.6 V
Operating Relative Humidity RH 　 85 %
