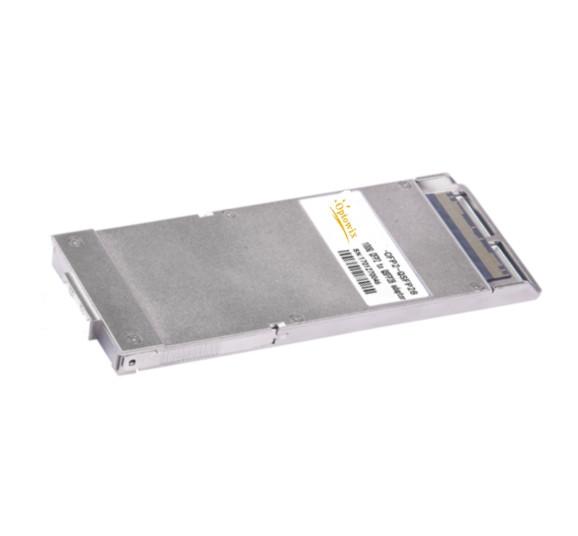

100G Fiber Optical Transceivers 100m CFP2-QSFP28 Adaptor Module
100G Fiber Optical Transceivers 100m CFP2-QSFP28 Adaptor Module
Specifications
Brand Name :
Optowix
Model Number :
MCP-1Q-LR4LR
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Product Name :
CFP2-QSFP28 Adaptor Module
SpeedRate :
100g
TX :
4x25G Vcsel Laser
RX :
4x25G PIN Receiver
Distrance :
100m
Warranty :
12 Months
Application :
Datacenter
Interface :
MPO
Description

CFP2-QSFP28 Adaptor Module
Features
  • CAUI -4 Electrical Interface:4 Lanes @25.78Gbit/s for CFP2 port
  • CAUI -4 Electrical Interface:4 Lanes @25.78Gbit/s for QSFP28 port
  • Hot Pluggable
  • MDIO, I2C Support
  • Compliant to CFP2 MSA
  • RoHS-6 compliant
  • Case operating temperature: -40 to 85 °C

The OW-CFP2-QSFP28 Adaptor Module converts a 100 Gigabit CFP2 port into a 100 Gigabit QSFP28 port. With the Adaptor Module, customers have the flexibility to use the 100 Gigabit CFP2 interface port of a switch with CFP2 modules or QSFP28 modules.

I/O Expansions
CFP2 port MDIO
QSFP28 port I2C
Physical Characteristics
Dimensions 12.4mmHeight x 41.5Width x 108.2 Depth

CAUI-4 Interface (QSFP28 port&CFP2 port)

CAUI Receiver Parameters Symbol Min. Typ. Max. Unit Note
Signal Rate Per Lane 25.78 Gb/s
Differential data output swing per lane Vout,pp

CAUI-4 as defined by IEEE P802.3bm

 mV
Data output rise time tr ps
Data output fall time tf ps
CAUI Transmitter Parameters Symbol Min. Typ. Max. Unit Note
Signal Rate Per Lane 25.78 Gb/s
Frequency offset -100 100 ppm 100G Ethernet
-20 20 ppm OTU4
Input differential impedance Rin

CAUI-4 as defined by IEEE P802.3bm

 Ω
Differential data input swing per lane Vin,pp mV
Data input rise time tolerance tr ps
Data input fall time tolerance tf ps
Ordering Information
Part. No Specifications
Conveter Top Other
(℃)
MCP-1Q-LR4LR CFP2 to QSFP28 Converter 0~70 RoHS
