100G QSFP28 SR4 Optical Engine Module 100m For Infiniband EDR
100G QSFP28 SR4 Optical Engine Module 100m For Infiniband EDR
100G QSFP28 SR4 Optical Engine Module 100m For Infiniband EDR
100G QSFP28 SR4 Optical Engine Module 100m For Infiniband EDR
Specifications
Brand Name :
Optowix
Model Number :
MMK-1Q-850SR-OE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Product Name :
Optical Engine Module
SpeedRate :
100g
TX :
4x25G Vcsel Laser
RX :
4x25G PIN Receiver
Distrance :
100m
Warranty :
12 Months
Application :
Datacenter
Interface :
MPO
Description

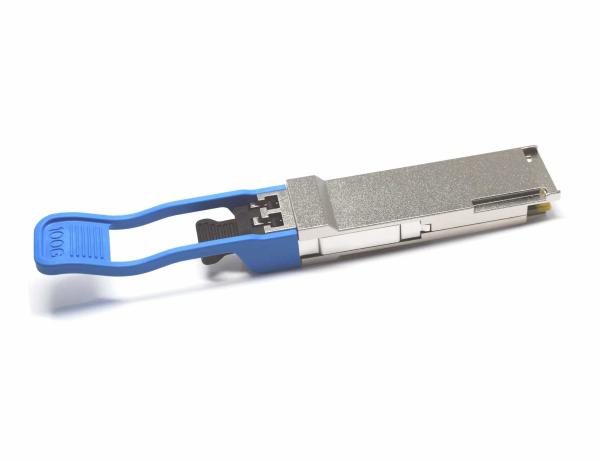

100G QSFP28 SR4 Optical Engine Module
Features
  • Single MPO receptacle
  • Distance up to 100m OM4
  • Up to 103.1Gb/s data rate
  • Single 3.3V Power supply
  • Power consumption<2.5W
  • Hot-Pluggable QSFP28 footprint
  • VCSEL array transmitter and PIN array receiver
  • Case Operating temperature ranges: Commercial:0 to 70℃
  • ROHS Compliance
Applications
  • 100GBASE-SR4 Ethernet
  • Data center
  • Infiniband EDR
Standards
  • SFF-8679
  • SFF-8636
  • IEEE802.3bm
Ordering Information
Part. No Specifications
Pack Rate Tx P Rx S Top Reach Other
(Gbps) (nm) (dBm) (dBm) (℃) (m)
MMK-1Q-850SR-OE QSFP28 4x25.78 850 -8.4~2.4 PIN <-10.3 0~70 100 RoHS
