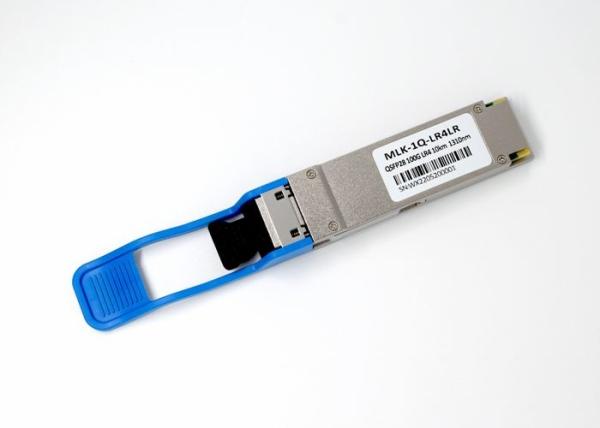

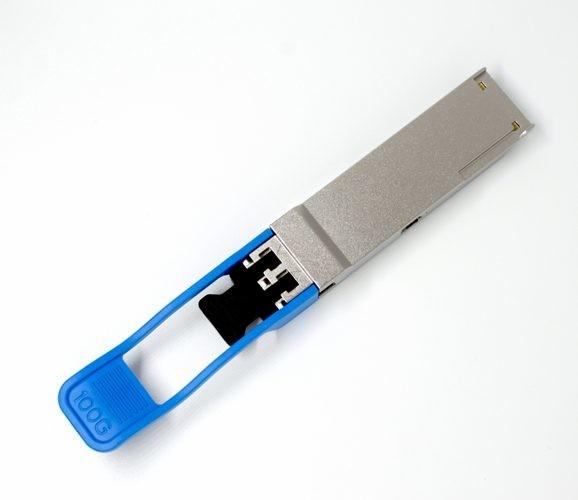

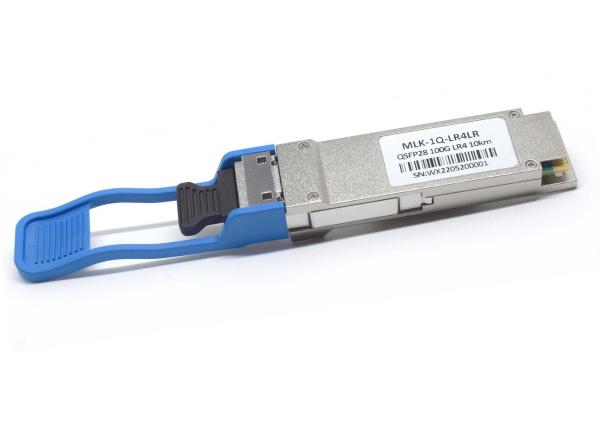

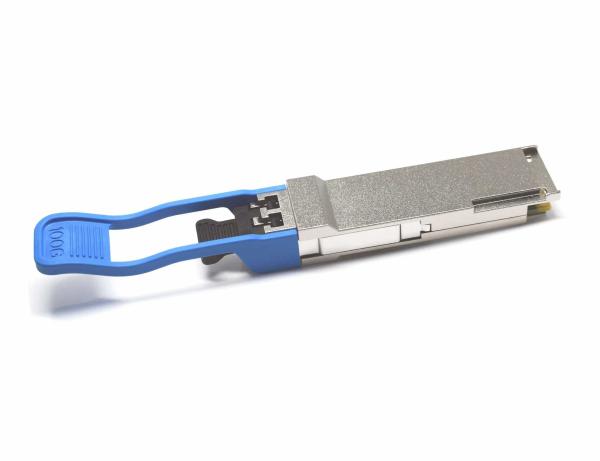

100G LR4 QSFP28 10km Fiber Optical Transceivers For Datacenter
100G LR4 QSFP28 10km Fiber Optical Transceivers For Datacenter
100G LR4 QSFP28 10km Fiber Optical Transceivers For Datacenter
100G LR4 QSFP28 10km Fiber Optical Transceivers For Datacenter
100G LR4 QSFP28 10km Fiber Optical Transceivers For Datacenter
100G LR4 QSFP28 10km Fiber Optical Transceivers For Datacenter
100G LR4 QSFP28 10km Fiber Optical Transceivers For Datacenter
100G LR4 QSFP28 10km Fiber Optical Transceivers For Datacenter
Specifications
Brand Name :
Optowix
Model Number :
MLF-1D-131LR
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
40Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Product Name :
100G LR4 QSFP28
SpeedRate :
100G
TX :
4X25G DML Laser
RX :
4X25G PIN receiver
Distrance :
10km
Warranty :
12 Months
Application :
Datacenter
Interface :
LC duplex
Description
100G LR4 10km QSFP28 Module Optical Transceiver Module
Features
  • Hot Pluggable QSFP28 form factor
  • Supports aggregate bit rate up to 103.125Gb/s
  • LC Duplex optical interface
  • 4x25Gb/s LAN-WDM transmitter, PIN array detector
  • Integrated 4-channel LAN WDM mux/demux for duplex LC operation
  • Operating case temperature:0 to 70 °C
  • Low power consumption <4.5W
  • Applicable for 10km SMF connection
  • All-metal housing for superior EMI performance
  • IIC management interface
  • Single +3.3V power supply
Applications
  • 100G ethernet
  • Other optical links
Standards
  • SFF8679,SFF-8636
  • SFF-8665, SFF8661
  • IEEE 802.3ba
Ordering Information
Part. No Specifications
Pack Rate Tx P Rx S Top Reach Other
(Gbps) (nm) (dBm) (dBm) (℃) (km)
MLK-1Q-LR4LR QSFP28 4x25.78 1295.56 -4.3~4.5 PIN <-8.6 0~70 10 RoHS
1300.05
1304.58
1309.14
