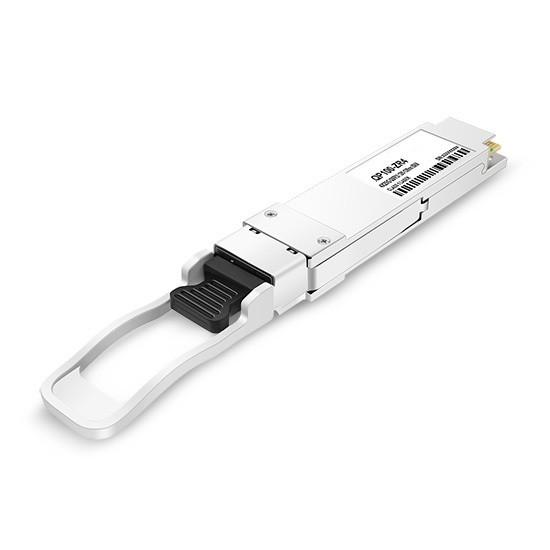

QSFP28 100G ZR4 80km Fiber Optical Transceivers 100GBASE-ZR4
QSFP28 100G ZR4 80km Fiber Optical Transceivers 100GBASE-ZR4
Specifications
Brand Name :
Optowix
Model Number :
MK1Q-LRTG
Certification :
CE
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MK1Q-LRTG/MK2Q-LRTG
Product Name :
100G ZR4 80km QSFP28 module
SpeedRate :
100G
TX :
4X25G EML Laser
RX :
4X25G SOA receiver
Distrance :
80km
Warranty :
12 Months
Application :
Datacenter
Interface :
LC duplex
Description

100G QSFP28 Transceiver ZR4 80km Module Optical Transceiver Module 100GBASE-ZR4

Features

  • Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
  • High speed I/O electrical interface (CAUI-4);
  • I2C interface with integrated Digital Diagnostic monitoring;
  • QSFP28 MSA package with duplex LC connector;
  • Single +3.3V power supply
  • Power dissipation
  • Commercial: < 4.5W
  • Industrial: <6W
  • Temperature Range:
  • Commercial: 0°C ~+70°C
  • Industrial: -40°C ~+85°C
  • Complies with EU Directive 2015/863/EU;
  • Support line rates from 103.125 Gb/s;
  • Lane bit rate 25.78 Gb/s 100GE
  • Up to 80km transmission with KR4-FEC.
  • LAN WDM EML laser and PIN receiver with SOA;

Applications

  • 100G Ethernet
  • Other optical links

Standards

  • SFF8679,SFF-8636
  • SFF-8665, SFF8661
  • IEEE 802.3ba,IEEE 802.3bm

Ordering Information

Part. No Specifications
Pack Rate Tx P Rx S Top Reach Other
(Gbps) (nm) (dBm) (dBm) (℃) (km)
MK1Q-LRTG QSFP28 4x25.78 1295.56 1~6.5 SOA -27 0~70 80 RoHS
1300.05
1304.58
1309.14
MK2Q-LRTG QSFP28 4X25.78 1295.56 1~6.5 SOA -27 -40~85 80 RoHS
1300.05
1304.58
1309.14

Product Description

MK1Q-LRTG is designed for 80km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit
Storage Temperature TS -40 85 °C
Maximum Supply Voltage VCC -0.5 3.6 V
Operating Relative Humidity RH 　 85 %
