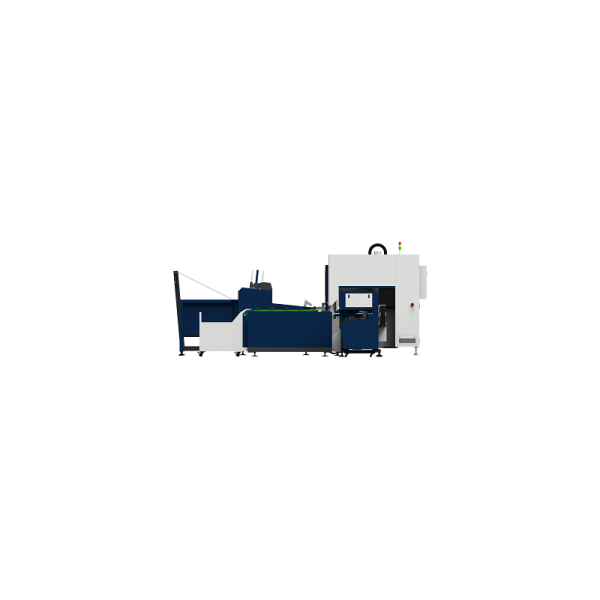

QH-GC3-H High Power 3-Chuck Heavy Duty Tube Cutting Machine Fully-automatic Loading
QH-GC3-H High Power 3-Chuck Heavy Duty Tube Cutting Machine Fully-automatic Loading
Specifications
Brand Name :
QIHAI
Model Number :
QH-GC3-H
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 Set/month
Delivery Time :
50 days
Packaging Details :
WOOD
Cutting Accuracy :
±0.01mm
Cooling :
water cooling
Graphic Format Supported :
AI, DXF,PLT
Description
QH-GC3-H High Power 3-Chuck Heavy Duty Tube Cutting Machine Fully-automatic Loading
QH-GC3-H High Power 3-Chuck Heavy Duty Tube Cutting Machine Fully-automatic Loading

Description​
The QH-GC3-H is a high-power heavy duty tube cutting solution engineered for large-diameter, extra-long 管材 (ideal for wind power towers, oil & gas pipelines, and heavy steel structures), with Fully-automatic Loading as its core design to eliminate manual intervention and boost continuous production efficiency.​
Its fully-automatic loading system integrates seamless workflow: tube materials (round: Φ15-580mm; square: 15×15-580×580mm, length 11500-12500mm) are automatically conveyed from the storage rack to the lathe bed via a dedicated feeding module, followed by auto-precise positioning (aligned with ±0.03mm X/Y-axis accuracy) and 3-chuck auto-clamping—all without manual adjustment.


Quick Detail​

Fully-automatic Loading Core: Auto feeding (from rack to bed) + auto positioning + 3-chuck auto-clamping; no manual operation, cuts loading time by 60% vs. semi-auto setups.​

Key Specs: Φ15-580mm round/15×15-580×580mm square tubes; 11500-12500mm tube length; 6000W-20KW laser (thick-walled cutting); ±0.03mm axis accuracy; 20T machine weight (stabilizes auto-loading).​

Efficiency: Enables 24/7 continuous production; single-tube processing cycle (loading to cutting) reduced to 3-4 mins.​

Fit: Wind power/oil & gas; heavy/extra-long tubes needing high-efficiency, error-free loading.



Product Specifications
Model QH-GC3-H
Cutting Diameter Round Tube: Φ15-580mm
Square Tube: 15*15mm to 580*580mm
Tube Length Capacity 11500-12500mm
Machine Weight 20T
Dimensions (L*W*H) 22200*5350*2650mm
Laser Power Range 6000W-20KW
Positioning Accuracy ±0.03mm (X/Y-axis)
Repositioning Accuracy ±0.03mm (X/Y-axis)
Compatible Tube Types Round Tube / Square Tube


Advantage​

Fully-automatic Loading Drives High Efficiency: The one-click auto-loading workflow (no manual lifting, aligning, or clamping) shortens single-tube preparation time from 5-6 mins (manual) to 1-2 mins, boosting daily output by 45% for medium-batch production. It also supports integration with automated storage systems, realizing lights-out operation for large-scale tube processing.​

Eliminates Manual Errors, Ensures Consistent Precision: Manual loading often causes 0.1-0.3mm positioning deviations for long/heavy tubes, but the fully-automatic system’s ±0.03mm auto-positioning aligns every tube uniformly. This consistency reduces scrap rates by 35% and avoids weld joint rework—critical for high-pressure pipelines where even minor misalignment risks leaks.​

Enhances Safety & Reduces Labor Cost: Fully-automatic loading removes the need for workers to lift or move 12.5m-long, large-diameter tubes (which can weigh hundreds of kg), eliminating workplace injury risks. It also cuts labor demand by 50% (no dedicated loading operators), lowering long-term operational costs while maintaining stable productivity.​

20T Frame Supports Stable Auto-loading: The 20T heavy-duty frame provides a rigid base for the fully-automatic feeding module, preventing vibration during high-speed tube conveyance. When processing Φ580mm, 12.5m-long wind tower tubes, this stability ensures the auto-clamping system holds the tube securely, avoiding shifts during high-power (20KW) cutting—guaranteeing smooth cut edges and precise dimensional accuracy.
