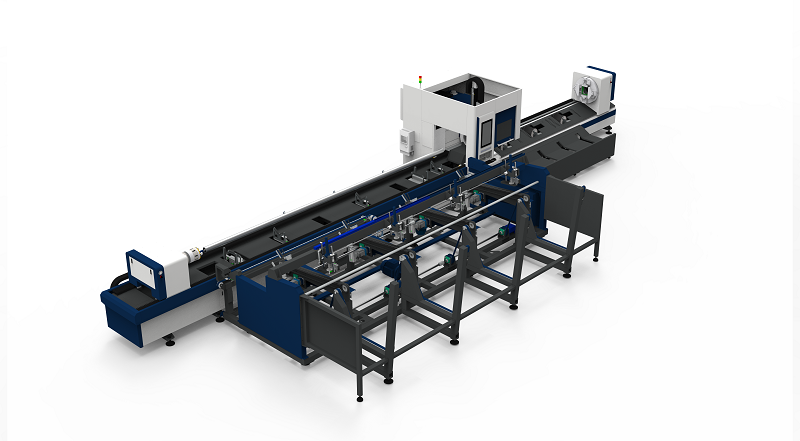

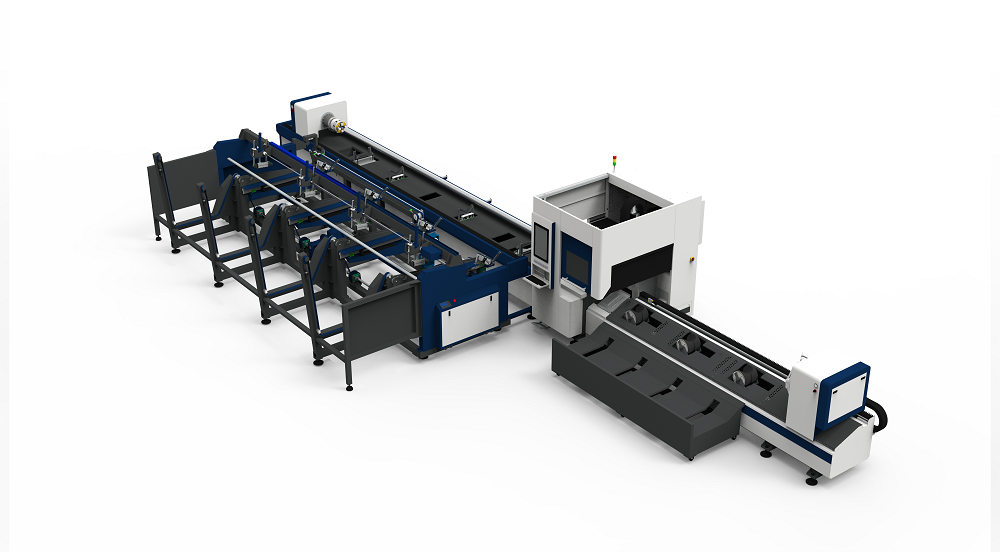

QH-GC3-S 3 Chucks Tube Cutting Machine Standard Model Fully-automatic Loading Beveling Cutting
QH-GC3-S 3 Chucks Tube Cutting Machine Standard Model Fully-automatic Loading Beveling Cutting
Specifications
Brand Name :
QIHAI
Model Number :
QH-GC3-S
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
40 days
Packaging Details :
wood
Laser Source :
IPG/Raycus/Maxphotonics
Control System :
Cypcut/Beckhoff
Positioning Accuracy :
±0.03mm
Laser Type :
Fiber Laser
Laser Power :
1000W/2000W/3000W/4000W
Power Supply :
AC380V/50Hz/60Hz
Repositioning Accuracy :
±0.02mm
Cutting Thickness :
0.5mm-25mm
Tube Length :
6000mm/8000mm/12000mm
Cooling Mode :
Water Cooling
Tube Diameter :
20mm-200mm
Cutting Speed :
0-15m/min
Warranty :
1 years
Automatic Loading :
Fully-automatic Loading
Description
QH-GC3-S 3 Chucks Tube Cutting Machine Standard Model Fully-automatic Loading Beveling Cutting QH-GC3-S 3 Chucks Tube Cutting Machine Standard Model Fully-automatic Loading Beveling Cutting
QH-GC3-S 3 Chucks Tube Cutting Machine Standard Model Fully-automatic Loading Beveling Cutting

Description​
The QH-GC3-S is a high-performance standard-model tube laser cutting machine that integrates three core capabilities—3-chuck tube clamping, fully-automatic loading, and precision beveling cutting—tailored for heavy-duty, high-precision tube processing in industries like large-scale pipeline engineering, heavy machinery, and construction trusses.

Its 3-chuck system delivers uniform clamping force across diverse tube types (round: Φ15-500mm; square: 15×15-500×500mm), preventing deformation or rotation during both straight cutting and beveling, while the fully-automatic loading mechanism streamlines the entire workflow: it auto-feeds tubes (5500-6500mm length capacity), positions them with ±0.03mm X/Y-axis accuracy, and unloads finished parts—eliminating manual handling errors and downtime between batches.
​
Quick Detail​

Triple Core Features: 3-chuck clamping (no deformation, Φ15-500mm/15×15-500×500mm tubes); fully-automatic loading (auto feed/position/unload, cuts manual time by 60%); precision beveling (V/U/Y-type, ±0.5° angle accuracy).

Key Specs: 5500-6500mm tube length, 6000W-20KW laser power, ±0.03mm X/Y accuracy; fits round/square tubes.

Efficiency Edge: One-stop beveling + auto loading reduces total processing time per batch by 50% vs. semi-auto/bevel-less models.

Fit: Pipeline/heavy machinery industries; 380V/50Hz (industrial workshop compatible).


Product Specifications
Model QH-GC3-S
Cutting Diameter Round Tube: Φ15-500mm
Square Tube: 15*15mm to 500*500mm
Tube Length Capacity 5500-6500mm
Machine Weight 6T
Dimensions (L*W*H) 16680*5480*2250mm
Laser Power Range 1500W-20KW
Positioning Accuracy ±0.03mm (X/Y-axis)
Repositioning Accuracy ±0.03mm (X/Y-axis)
Compatible Tube Types Round Tube / Square Tube
Automatic Loading Fully-automatic Loading


Advantage​

3-Chuck Stability Ensures Consistent Bevel Precision: For large-diameter tubes (Φ400-500mm) or thick-walled square tubes (500×500mm), the 3-chuck system distributes clamping force evenly, avoiding tube shift during beveling—critical for maintaining ±0.5° angle accuracy and ±0.03mm positional precision. This eliminates bevel misalignment (common in 2-chuck setups) and reduces weld joint rework rates by 55%, ensuring seamless assembly in pipeline projects.

Fully-Automatic Loading + Beveling Cuts Workflow Steps: The auto-loading system skips manual tube lifting/positioning (a 2-3 minute per-tube process), while integrated beveling removes the need for post-cut grinding (another 1-2 minutes per part). Together, they slash per-tube processing time by 45% and reduce labor requirements by 1-2 operators per shift—ideal for high-volume production of weld-ready tubes.

Versatile Beveling for Weld Diversification: With V/U/Y-type bevel support and 6000W-20KW adjustable power, the machine adapts to diverse weld needs: low power (6000W-10KW) for precision beveling of thin-walled round tubes (Φ15-100mm) in trusses, high power (15KW-20KW) for deep-penetration beveling of thick-walled square tubes (300×300-500×500mm) in heavy machinery. This versatility eliminates the need for multiple machines, lowering equipment costs by 40% while maintaining consistent bevel quality across tube types.
