QH-GZ Zero-tailing Laser Tube Cutting Machine Horizontally-mounted Beveling Cutting
QH-GZ Zero-tailing Laser Tube Cutting Machine Horizontally-mounted Beveling Cutting
QH-GZ Zero-tailing Laser Tube Cutting Machine Horizontally-mounted Beveling Cutting
QH-GZ Zero-tailing Laser Tube Cutting Machine Horizontally-mounted Beveling Cutting
Specifications
Brand Name :
QIHAI
Model Number :
QH-GZ
Certification :
CE, ISO
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 Set/month
Delivery Time :
50 days
Packaging Details :
wood
Control software :
Cypcut,Ruida,Perfect Laser Professional Laser Cutting Software,PhotoShop,TAJIMA
Condition :
New
Cnc or not :
Yes
Graphic format supported :
PLT,DXF,AI,BMP,DST
Cutting thickness :
Depends,Materials,0-20mm,30mm acrylic,0-15mm
Cooling mode :
Water Cooling
Warranty :
1 Year
Laser power :
500W / 1000W / 2000W / 3000W,500-3000W,100W/130W/150W/280W,150W reci,80w/100w/130w/150w
After-sales service provided :
Engineers available to service machinery overseas
Color :
White,according to client,Required,Blue and white
Description
QH-GZ Zero-tailing Laser Tube Cutting Machine Horizontally-mounted Beveling Cutting
QH-GZ Zero-tailing Laser Tube Cutting Machine Horizontally-mounted Beveling Cutting

Description​

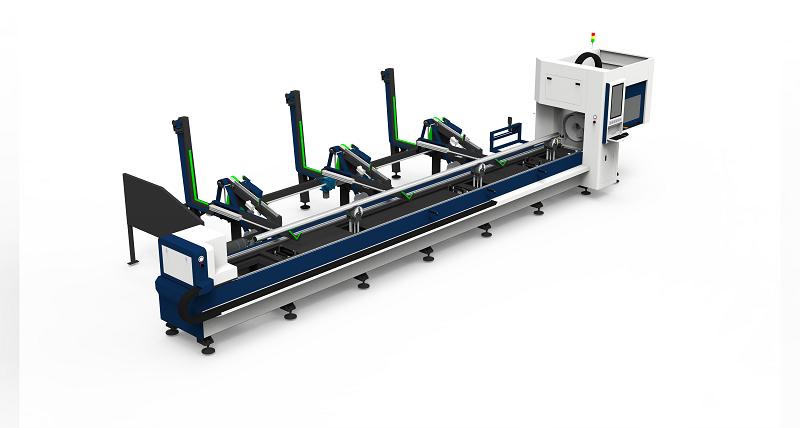

The QH-GZ Zero-tailing Laser Tube Cutting Machine, featuring Horizontally-mounted Beveling Cutting, is a specialized tube processing solution engineered for high-precision beveling of round and square tubes—ideal for automotive components, hydraulic systems, and structural engineering where weld-ready tube ends are critical. Its dual-core strengths lie in the horizontally-mounted beveling structure and zero-tailing technology: the horizontal layout ensures stable, consistent clamping of tubes (round tubes Φ15-500mm, square tubes 15×15-500×500mm, and lengths 5500-6500mm) during beveling, eliminating vertical deflection that often compromises angle accuracy.
​
Quick Detail​

Core Horizontal Beveling Highlights: Horizontally-mounted structure stabilizes Φ15-500mm/15×15-500×500mm tubes; supports ±45° adjustable bevel angles, paired with ≤5mm zero-tailing waste.​

Key Specs: 1500W-20KW laser power; ±0.03mm X/Y precision; 5500-6500mm tube length capacity (round/square tubes).​

Fit: Weld-ready tube applications (automotive/hydraulic); 2T weight + 9620×2950×2080mm size suits medium workshops.



Product Specifications
Model QH-GZ
Cutting Diameter Round Tube: Φ15-500mm
Square Tube: 15*15mm to 500*500mm
Tube Length Capacity 5500-6500mm
Machine Weight 2T
Dimensions (L*W*H) 9620*2950*2080mm
Laser Power Range 1500W-20KW
Positioning Accuracy ±0.03mm (X/Y-axis)
Repositioning Accuracy ±0.03mm (X/Y-axis)
Compatible Tube Types Round Tube / Square Tube


Advantage​

Horizontal Layout Guarantees Bevel Angle Consistency: The horizontally-mounted beveling structure aligns tubes parallel to the cutting plane, minimizing gravitational deflection—critical for large-diameter tubes (e.g., Φ500mm round tubes) or long 6500mm tubes. This, combined with ±0.03mm axis accuracy, ensures bevel angle deviation ≤±0.5° across the entire tube length, avoiding weld gaps caused by uneven vertical beveling and reducing rework rates by 40%-50%.​

Horizontal Beveling + Zero-tailing Synergy Cuts Costs: The horizontal design maintains tube stability even during the final cut (when residual length is minimized), ensuring the zero-tailing feature’s ≤5mm waste standard is consistently met. For a workshop processing 300 6500mm-long Φ300mm stainless steel tubes monthly, this saves ~380kg of material annually—while the horizontal beveling eliminates secondary angle grinding, lowering labor costs by 25%-30%.​

Efficient Beveling for Diverse Tube Types: The horizontal beveling system adapts seamlessly to both round (Φ15-500mm) and square (15×15-500×500mm) tubes. Unlike vertical beveling machines that require complex clamping adjustments for square tubes, the QH-GZ’s horizontal layout uses uniform side clamping to maintain bevel precision across tube shapes—cutting setup time per batch by 30%-35% and boosting daily throughput.​​

​
