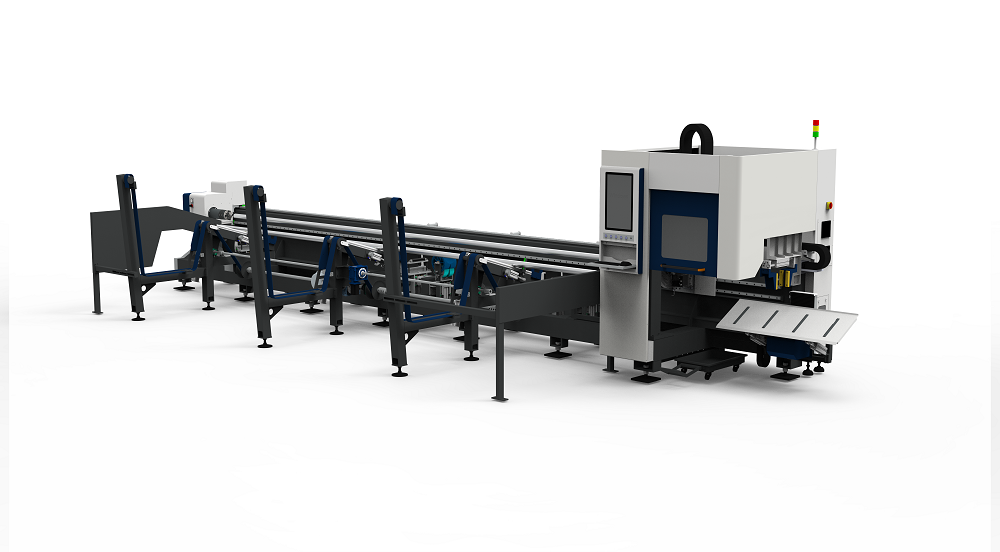

QH-GZ Zero-tailing Laser Tube Cutting Machine Beveling Cutting Fully-automatic Loading
QH-GZ Zero-tailing Laser Tube Cutting Machine Beveling Cutting Fully-automatic Loading
Specifications
Brand Name :
QIHAI
Model Number :
QH-GZ
Certification :
CE, ISO
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 Set/month
Delivery Time :
50 days
Packaging Details :
wood
Condition :
New
Cnc or not :
Yes
Graphic format supported :
PLT,DXF,AI,BMP,DST
Cutting thickness :
Depends,Materials,0-20mm,30mm acrylic,0-15mm
Cooling mode :
Water Cooling
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Color :
White,according to client,Required,Blue and white
Description
QH-GZ Zero-tailing Laser Tube Cutting Machine Beveling Cutting Fully-automatic Loading
QH-GZ Zero-tailing Laser Tube Cutting Machine Beveling Cutting Fully-automatic Loading

Description​
The QH-GZ Zero-tailing Laser Tube Cutting Machine integrates Fully-automatic Loading and high-precision Beveling Cutting into a single solution, tailored for efficient, low-waste tube processing in automotive components, hydraulic systems, and structural engineering. Its fully-automatic loading system eliminates manual intervention: it automatically feeds, positions, and clamps tubes (round: Φ15-500mm; square: 15×15-500×500mm) with lengths of 5500-6500mm, reducing loading time by 60% vs. manual setups and ensuring consistent tube alignment—critical for uniform bevel quality.

Complementing the automated workflow, its beveling cutting function supports versatile profiles (V-type, U-type, Y-type, single/double-sided bevels) with adjustable angles (0°-45°, 0.1° increments) and maintains ±0.03mm X/Y-axis positioning/repositioning accuracy. This enables one-pass beveling and cutting, eliminating secondary grinding or milling. Paired with a 1500W-20KW laser power range, it handles diverse tube thicknesses, while the zero-tailing design limits residual waste to ≤5mm. Built with a 2T robust frame and dimensions of 9620×2950×2080mm, it balances industrial durability with workshop space adaptability, operating seamlessly in medium-to-large-scale production environments.
​
Quick Detail​
  • Dual Core Functions: Fully-automatic loading (auto feeds/clamps 5500-6500mm tubes; no manual handling); Beveling cutting (0°-45° angles, V/U/Y-type profiles, ±0.03mm precision).
  • Key Specs: Round Φ15-500mm/square 15×15-500×500mm cutting diameter; 1500W-20KW laser power; ≤5mm zero-tailing waste.
  • Fit: Automotive/hydraulic/structural industries; 2T weight + 9620×2950×2080mm size for industrial workshops.


Product Specifications
Model QH-GZ
Cutting Diameter Round Tube: Φ15-500mm
Square Tube: 15*15mm to 500*500mm
Tube Length Capacity 5500-6500mm
Machine Weight 2T
Dimensions (L*W*H) 9620*2950*2080mm
Laser Power Range 1500W-20KW
Positioning Accuracy ±0.03mm (X/Y-axis)
Repositioning Accuracy ±0.03mm (X/Y-axis)
Compatible Tube Types Round Tube / Square Tube


Advantage​
  1. Fully-automatic Loading Boosts Bevel Efficiency: The auto-loading system’s automatic tube feeding, positioning, and clamping cut setup time per batch by 40%-50% (e.g., loading 10×6500mm Φ300mm tubes takes 8-10 mins vs. 20+ mins manually). It also ensures consistent tube alignment, preventing bevel angle deviations caused by manual clamping errors—critical for maintaining ±0.03mm precision across high-volume runs.
  2. One-pass Beveling Reduces Post-processing: By combining auto-loading (fast, accurate tube setup) with beveling cutting (versatile profiles, 0°-45° adjustability), the machine completes tube cutting + beveling in one pass. This eliminates secondary beveling steps (e.g., manual grinding), reducing total processing time by 35%-45% and lowering labor costs associated with post-finishing.
  3. Precision Synergy Cuts Rework: The fully-automatic loading system’s repeatable positioning (±0.03mm alignment accuracy) pairs with the beveling function’s ±0.03mm axis precision, ensuring uniform bevel angles and edge quality across every tube. This reduces rework rates by 50%-60% vs. semi-automatic machines, where manual loading inconsistencies lead to bevel mismatches in welding.
  4. Waste Reduction via Auto-loading + Zero-tailing: The fully-automatic loading system precisely controls tube feed length, maximizing the use of 5500-6500mm tubes and avoiding material waste from manual overfeeding. When combined with the zero-tailing design (≤5mm residual), it cuts material scrap rates by 12%-18%—a significant saving for high-value metals like stainless steel tubes.
