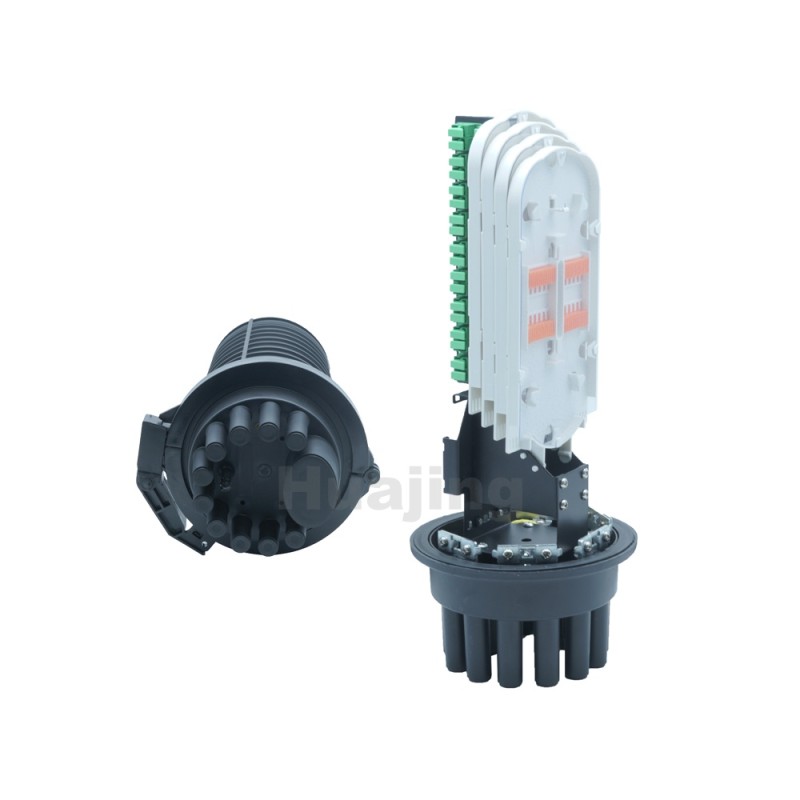

MPP Vertical Optical Fiber Splice Box Dia 230x440mm 96 Cores 11 Ports
MPP Vertical Optical Fiber Splice Box Dia 230x440mm 96 Cores 11 Ports
MPP Vertical Optical Fiber Splice Box Dia 230x440mm 96 Cores 11 Ports
MPP Vertical Optical Fiber Splice Box Dia 230x440mm 96 Cores 11 Ports
MPP Vertical Optical Fiber Splice Box Dia 230x440mm 96 Cores 11 Ports
MPP Vertical Optical Fiber Splice Box Dia 230x440mm 96 Cores 11 Ports
Specifications
Material :
MPP
Model :
GJS-M11/RS-A-SC32
Cable diameter :
Φ7-Φ12mm
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Price :
19.9-28.6USD/PC
Model Number :
GJS-M11/RS-A-SC32
Sealing type :
Heat shrinkable tube&Silicon rubber
MOQ :
100
Brand Name :
Huajing
Place of Origin :
China
Size :
Φ230×440mm
Delivery Time :
1-4weeks
Cable port :
11
Description

Application:

This product is used for optical splitting or direct connection during optical fiber transmission process, and provides joint connection protection.

Feature:

  1. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
  2. There are 11 circular cable ports, the bigger port can be used for cable loop through.
  3. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe
  4. Splicing tray is equipped a slot which is used to fix PLC splitter.
  5. The box body adopts mechanical sealing.
  6. Can be used for pole mounting, wall mounting, and underground;

Technical Index:

  • Fiber radius of curvature:≥40mm
  • Optical disk additional loss:≤0.01dB
  • Temperature Range: - 20℃ ~ + 60
  • Anti lateral pressure: ≥2000N / 10cm
  • Shock resistance:≥20N.n
  • Protection level:IP68

Specification:

Parameter Packing Detail
Size(mm): W*D*H(mm) Φ230×440 Carton size(mm) 540×485×465/4pcs
Weight(Kg) 3.15 CBM(m³) 0.12
Cable port 11 Gross weight(Kg) 14.3
Cable diameter(mm) Φ7-Φ12 Others
Tray capacity 24(single core)
Max tray number 4
Core capacity 96(single core) Installation wall mounting(optional)
Sealing type Heat shrinkable tube&Silicon rubber pole mounting(standard)
