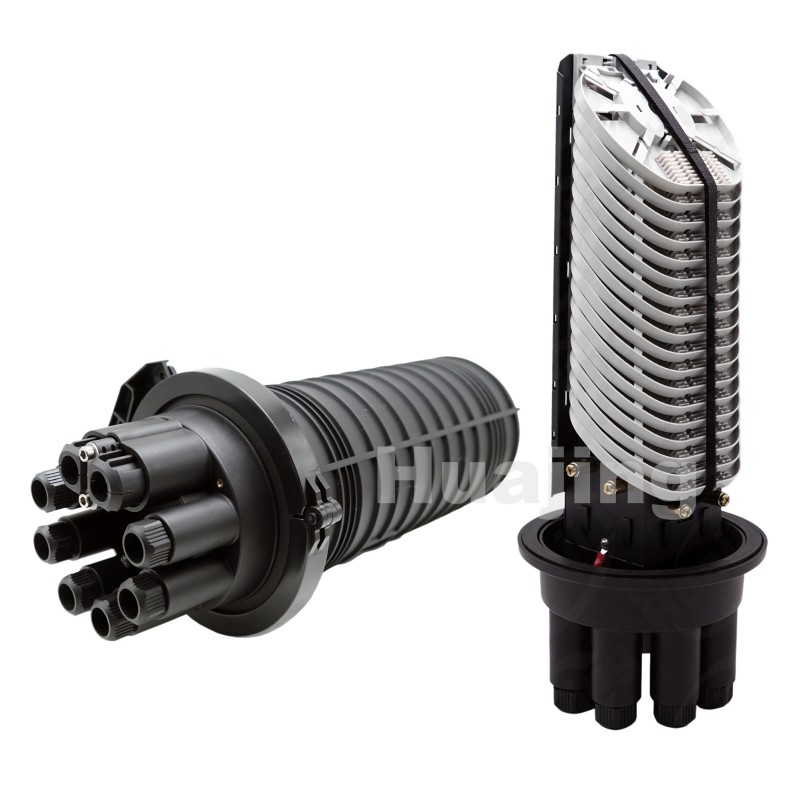

MPP Vertical Optical Fiber Splice Closure 7 Ports 432 Cores Mechanical Seal
MPP Vertical Optical Fiber Splice Closure 7 Ports 432 Cores Mechanical Seal
MPP Vertical Optical Fiber Splice Closure 7 Ports 432 Cores Mechanical Seal
MPP Vertical Optical Fiber Splice Closure 7 Ports 432 Cores Mechanical Seal
Specifications
Material :
MPP
Model.. :
GJS-M7/JFT-B
Splice tray capacity :
16 cores / 12 cores
Place of Origin :
China
Sealing type :
Mechanical sealing
Model Number :
GJS-M7/JFT-B
Delivery Time :
1-4weeks
Brand Name :
Huajing
MOQ :
100
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Capacity :
288 or 432 cores
Price :
19.8-31.5USD/PC
Size :
Φ230×450mm
Cable port :
7
Description

Application:

This product is used for optical direct connection during optical fiber transmission process, and provides joint connection protection.

Feature:

  1. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
  2. There are 6 circular cable ports and 1 oval port; the oval port can be used for cable loop through or access 2 cables.
  3. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe.
  4. The box body adopts heat shrinkable tube.
  5. Can be used for pole mounting, wall mounting, and underground.

Technical Index:

  • Fiber radius of curvature:≥40mm
  • Optical disk additional loss:≤0.01dB
  • Temperature Range: - 20℃ ~ + 60
  • Anti lateral pressure: ≥2000N / 10cm
  • Shock resistance:≥20N.n
  • Protection level:IP68

Specification:

Parameter Packing Detail
Size(mm): W*D*H(mm) Φ230×450 Carton size(mm) 540×485×465/4pcs
Weight(Kg) 3.35 CBM(m³) 0.12
Cable port 7 Gross weight(Kg) 15
Cable diameter(mm) Φ7-Φ18 Others
Tray capacity 16 or 12(single core)
Max tray number 18 or 36
Core capacity 288 or 432 cores(single core) Installation wall mounting(optional)
Sealing type Mechanical seal＆silicon rubber pole mounting(standard)
