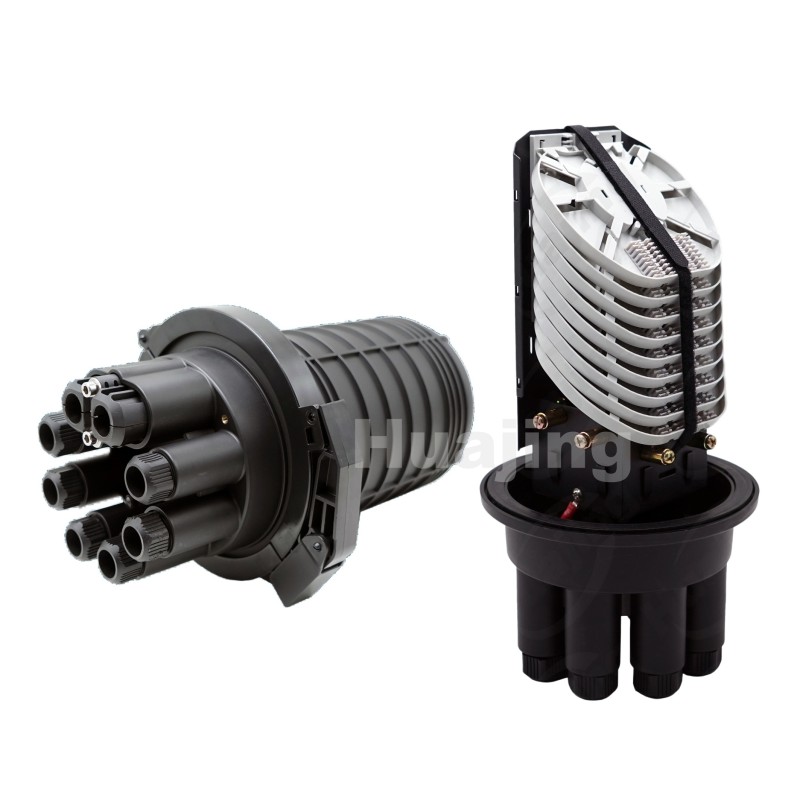

Vertical Fiber Optic Splice Closure 216 Cores 7 Ports With Mechanical Seal
Vertical Fiber Optic Splice Closure 216 Cores 7 Ports With Mechanical Seal
Vertical Fiber Optic Splice Closure 216 Cores 7 Ports With Mechanical Seal
Vertical Fiber Optic Splice Closure 216 Cores 7 Ports With Mechanical Seal
Specifications
MOQ :
100
Price :
15.8-25.6USD/PC
Material :
MPP
Model. :
GJS-M7/JFT-BS
Splice tray capacity :
16 or 12 cores
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Sealing type :
Mechanical seal＆silicon rubber
Place of Origin :
China
Model Number :
GJS-M7/JFT-BS
Capacity :
144 or 216 cores
Brand Name :
Huajing
Delivery Time :
1-4weeks
Size :
Φ230×335mm
Cable port :
7
Description

Application:

This product is used for optical direct connection during optical fiber transmission process, and provides joint connection protection.

Feature:

  1. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
  2. There are 6 circular cable ports and 1 oval port; the oval port can be used for cable loop through or access 2 cables.
  3. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe.
  4. The box body adopts heat shrinkable tube.
  5. Can be used for pole mounting, wall mounting, and underground.

Technical Index:

  • Fiber radius of curvature:≥40mm
  • Optical disk additional loss:≤0.01dB
  • Temperature Range: - 20℃ ~ + 60
  • Anti lateral pressure: ≥2000N / 10cm
  • Shock resistance:≥20N.n
  • Protection level:IP68

Specification:

Parameter Packing Detail
Size(mm): W*D*H(mm) Φ230×335 Carton size(mm) 490×420×720/8pcs
Weight(Kg) 2.8 CBM(m³) 0.148
Cable in/out 7 Gross weight(Kg) 24
Cable diameter(mm) Φ7-Φ18 Others
Tray capacity 16(single core)
Max tray number 9 or 18pcs
Core capacity 144(single core) Installation wall mounting(optional)
Sealing type Mechanical seal＆silicon rubber pole mounting(standard)
