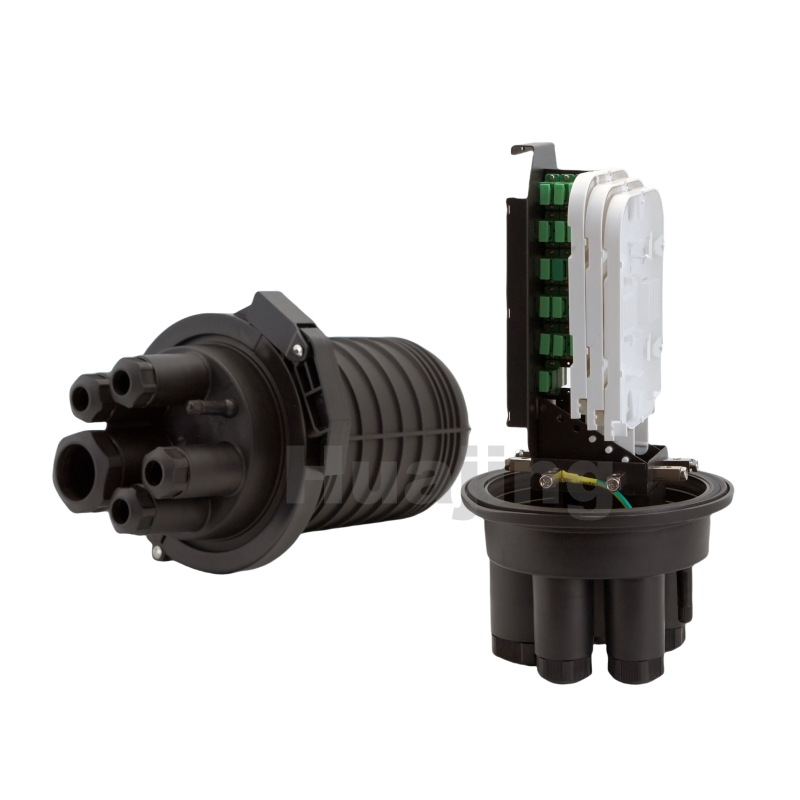

1:16 PLC Splitter 5 Ports Vertical Fiber Optic Closure Mechanical Sealing IP68 Protection
1:16 PLC Splitter 5 Ports Vertical Fiber Optic Closure Mechanical Sealing IP68 Protection
1:16 PLC Splitter 5 Ports Vertical Fiber Optic Closure Mechanical Sealing IP68 Protection
1:16 PLC Splitter 5 Ports Vertical Fiber Optic Closure Mechanical Sealing IP68 Protection
Specifications
Material :
MPP
Max splitting :
1:8 (2pcs) / 1:16 (1pc)
Sealing type :
Mechanical seal＆silicon rubber
Capacity :
72 cores
Adapter :
SC(max 17pcs)
Cable storage box :
metal box (1pc)
MOQ :
100
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Delivery Time :
1-4weeks
Model. :
GJS-M5/JF-AS-SC16
Brand Name :
Huajing
Place of Origin :
China
Size :
Φ230×320mm
Model Number :
GJS-M5/JF-AS-SC16
Price :
15.5-25.5USD/PC
Cable port :
5
Description

Application:

This product is used for optical splitting or direct connection during optical fiber transmission process, and provides joint connection protection.

Feature:

  1. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
  2. There are 5 circular cable ports, the bigger port can be used for cable loop through.
  3. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe.
  4. Splicing tray is equipped a slot which is used for PLC splitter.
  5. The box body adopts mechanical sealing.
  6. Can be used for pole mounting, wall mounting, and underground.

Technical Index:

  • Fiber radius of curvature:≥40mm
  • Optical disk additional loss:≤0.01dB
  • Temperature Range: - 20℃ ~ + 60
  • Anti lateral pressure: ≥2000N / 10cm
  • Shock resistance:≥20N.n
  • Protection level:IP68

Specification:

Parameter Packing Detail
Size(mm): W*D*H(mm) Φ230×320 Carton size(mm) 490×420×720/8pcs
Weight(Kg) 3 CBM(m³) 0.148
Cable port 5 Gross weight(Kg) 25.4
Cable diameter(mm) Φ7-Φ18 Others
Tray capacity 24(single core)
Max tray number 3 Fiber storage box metal box
Core capacity 72(single core) Installation wall mounting(optional)
Max splitting 1:8(2pcs) / 1:16(1pc) pole mounting(standard)
Sealing type Mechanical seal＆silicon rubber
