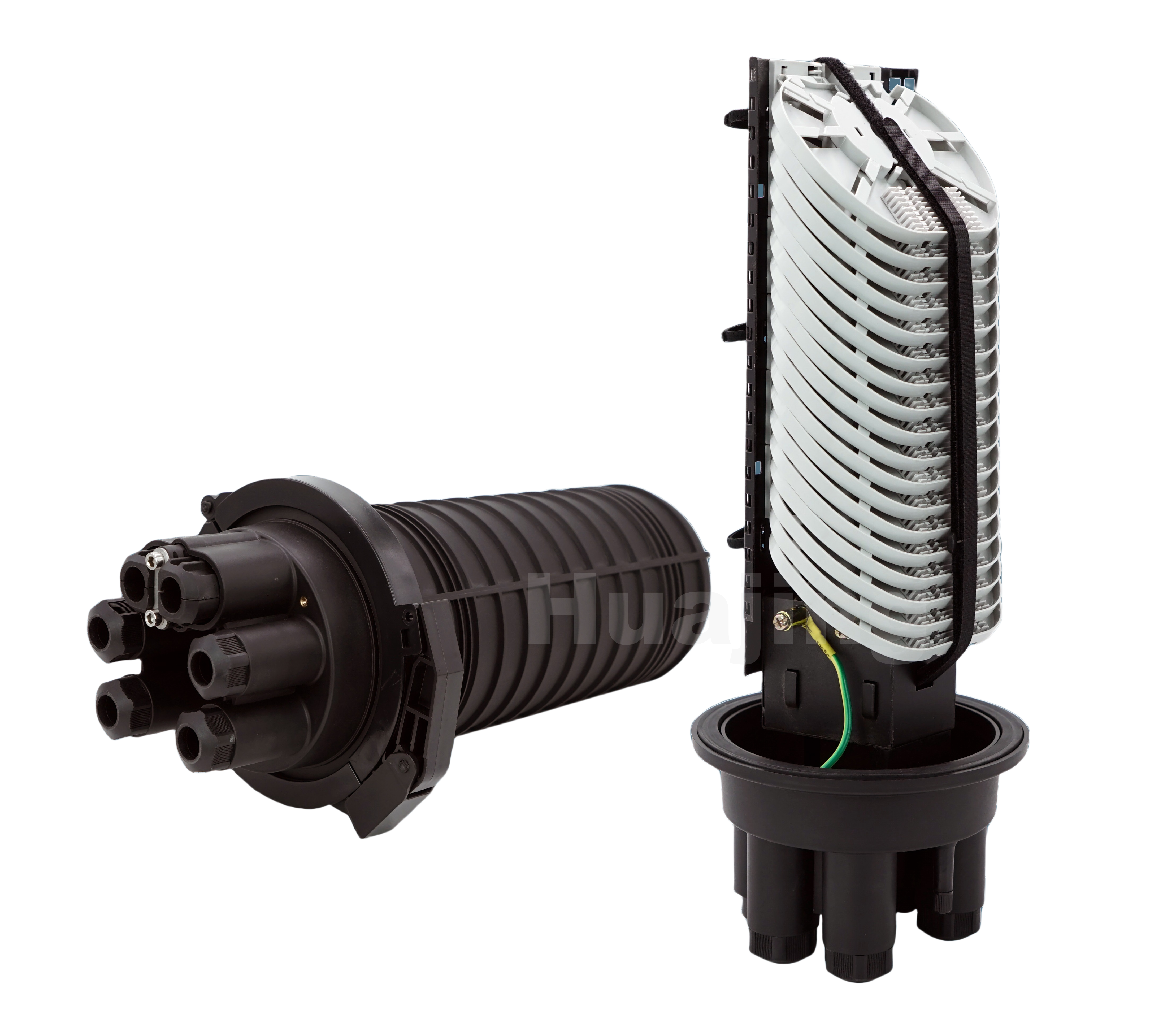

5 Ports Vertical Fiber Optic Splice Closure With 432 Cores Capacity Featuring Mechanical Sealing
5 Ports Vertical Fiber Optic Splice Closure With 432 Cores Capacity Featuring Mechanical Sealing
5 Ports Vertical Fiber Optic Splice Closure With 432 Cores Capacity Featuring Mechanical Sealing
5 Ports Vertical Fiber Optic Splice Closure With 432 Cores Capacity Featuring Mechanical Sealing
Specifications
Model Number :
GJS-M5/JFT-BS
Material :
MPP
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Splice tray capacity :
16 cores (single core)
Place of Origin :
China
Size :
Φ230×320mm
Price :
19.9-28.6USD/PC
Capacity :
432 cores (single core)
Delivery Time :
1-4weeks
Sealing type :
Mechanical seal＆silicon rubber
Brand Name :
Huajing
Model. :
GJS-M5/JFT-BS
MOQ :
100
Cable port :
5
Description

Application:

This product is used for optical splitting or direct connection during optical fiber transmission process, and provides joint connection protection.

Feature:

  1. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
  2. There are 4 circular cable ports and 1 oval port; the oval port can be used for cable loop through or access 2 cables.
  3. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe.
  4. The box body adopts mechanical sealing.
  5. Can be used for pole mounting, wall mounting, and underground.

Technical Index:

  • Fiber radius of curvature:≥40mm
  • Optical disk additional loss:≤0.01dB
  • Temperature Range: - 20℃ ~ + 60
  • Anti lateral pressure: ≥2000N / 10cm
  • Shock resistance:≥20N.n
  • Protection level:IP68

Specification:

Type: GJS-M5/JF-BS-C GJS-M5/JF-BS-H GJS-M5/JF-B-C GJS-M5/JF-B-H
Size (mm) Φ230*340 Φ230*445
Cable port 1 big and 4 small 1 big and 4 small
Cable diameter(mm) Φ7~Φ18 Φ7~Φ18
Splice tray capacity (core) 16 12 16 12
Max No. of splicing tray 9 pcs 18 pcs 18 pcs 36 pcs
Max capacity (single core) 144 216 288 432
Sealing type Thread mechanical seal Thread mechanical seal
Outer carton size(mm) /Qty. 490*420*720/8 pcs 540*485*465/4 pcs
Outer carton weight(kg) ≈25.4 ≈16.1
