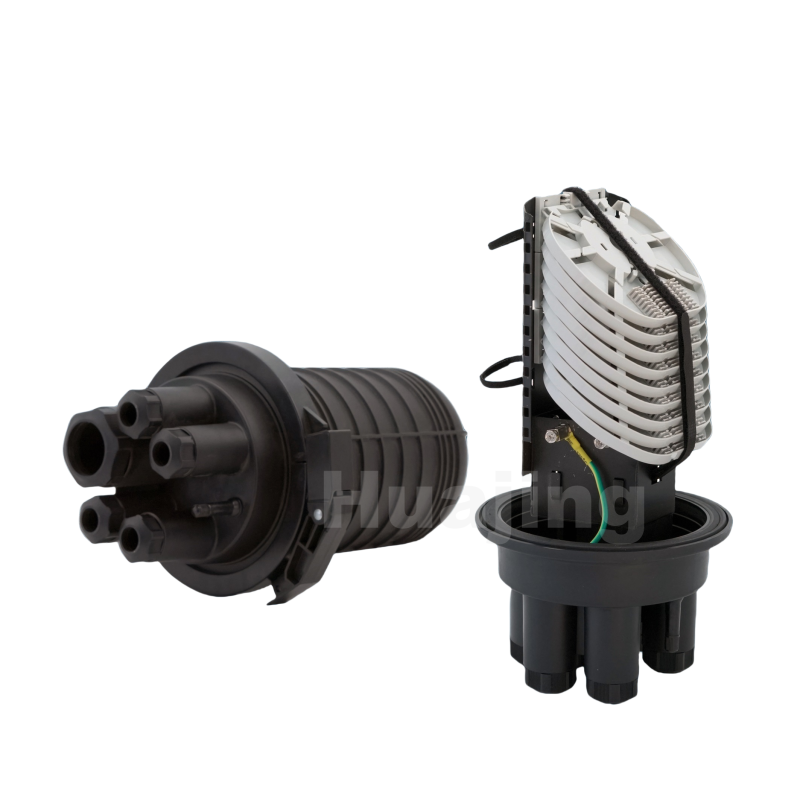

216 Cores 5 Ports Vertical Fiber Splice Case Mechanical Sealing IP68 Protection
216 Cores 5 Ports Vertical Fiber Splice Case Mechanical Sealing IP68 Protection
216 Cores 5 Ports Vertical Fiber Splice Case Mechanical Sealing IP68 Protection
216 Cores 5 Ports Vertical Fiber Splice Case Mechanical Sealing IP68 Protection
Specifications
Size :
Φ230×320mm
Price :
15.5-21.5USD/PC
Brand Name :
Huajing
MOQ :
100
Delivery Time :
1-4weeks
Material :
MPP
Place of Origin :
China
Model. :
GJS-M5/JF-BS
Splice tray capacity :
16 or 12 cores
Model Number :
GJS-M5/JF-BS
Sealing type :
Mechanical seal＆silicon rubber
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Cable port :
5
Capacity :
144 or 216 cores
Description

Application:

This product is used for optical splitting or direct connection during optical fiber transmission process, and provides joint connection protection.

Feature:

  1. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
  2. There are 5 circular cable ports, the bigger port can be used for cable loop through.
  3. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe.
  4. The box body adopts mechanical sealing.
  5. Can be used for pole mounting, wall mounting, and underground;

Technical Index:

  • Fiber radius of curvature:≥40mm
  • Optical disk additional loss:≤0.01dB
  • Temperature Range: - 20℃ ~ + 60
  • Anti lateral pressure: ≥2000N / 10cm
  • Shock resistance:≥20N.n
  • Protection level:IP68

Specification:

Parameter Packing Detail
Size(mm): W*D*H(mm) Φ230×320mm Carton size(mm) 490×420×720/8pcs
Weight(Kg) 3 CBM(m³) 0.148
Cable port 5 Gross weight(Kg) 25.4
Cable diameter(mm) Φ7-Φ18 Others
Tray capacity 16 or 12 cores (single core)
Max tray number 9 or 18
Core capacity 144 or 216 cores (single core) Installation wall mounting(optional)
Sealing type Heat shrinkable tube&Silicon rubber pole mounting(standard)
