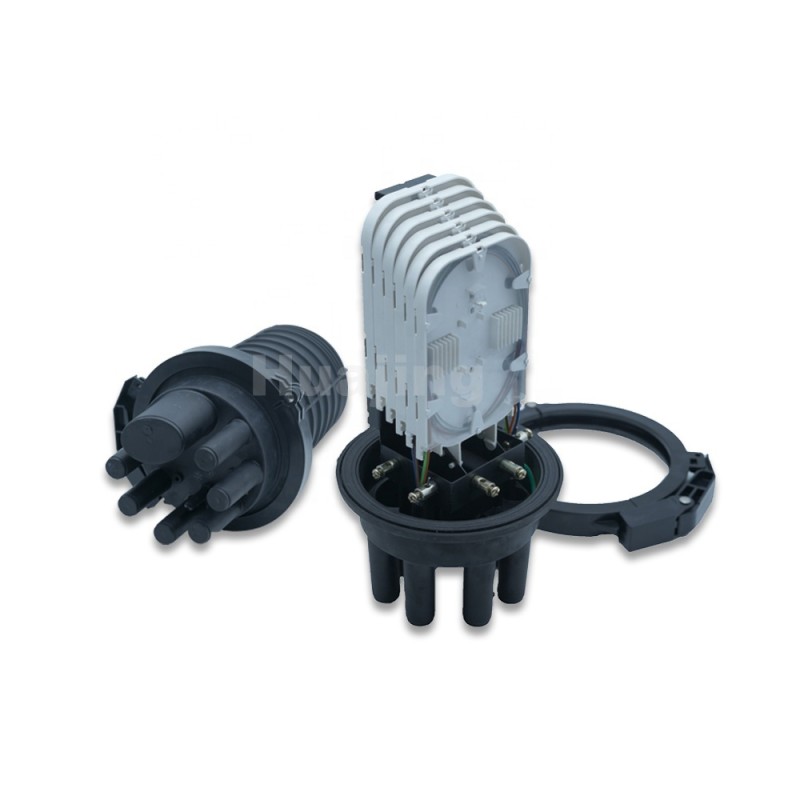

Cable Splice Box 144 Cores 7 Ports Vertical Optical Heat Shrinkable Sealing IP68 Protection
Cable Splice Box 144 Cores 7 Ports Vertical Optical Heat Shrinkable Sealing IP68 Protection
Cable Splice Box 144 Cores 7 Ports Vertical Optical Heat Shrinkable Sealing IP68 Protection
Cable Splice Box 144 Cores 7 Ports Vertical Optical Heat Shrinkable Sealing IP68 Protection
Cable Splice Box 144 Cores 7 Ports Vertical Optical Heat Shrinkable Sealing IP68 Protection
Cable Splice Box 144 Cores 7 Ports Vertical Optical Heat Shrinkable Sealing IP68 Protection
Specifications
Model Number :
GJS-M7/RS-AS
Place of Origin :
China
Delivery Time :
1-4weeks
Cable diameter :
Φ7-Φ20mm
Sealing type :
Heat shrinkable sealing
Supply Ability :
16.7-25.6USD/PC
Brand Name :
Huajing
MOQ :
100
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Capcity :
144 cores
Cable port :
7
Size :
Φ230×320mm
Model. :
GJS-M7/RS-AS
Material :
MPP
Splice tray capacity :
24 cors
Description

Application:

This product is used for optical direct connection during optical transmission process, and provides cable joint connection protection.

Feature:

  1. The outer box body is made of high-strength engineering plastics, It has features of light weight, high mechanical strength, anti aging, strong corrosion resistance, lightning resistance, and long service life.
  2. There are 6 circular cable ports, the oval port; among them oval port can be used for cable loop through.
  3. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe.
  4. The box body adopts heat shrinkable tube.
  5. Can be used for pole mounting, wall mounting, and underground.

Technical Index:

  • Fiber radius of curvature:≥40mm
  • Optical disk additional loss:≤0.01dB
  • Temperature Range: - 20℃ ~ + 60
  • Anti lateral pressure: ≥2000N / 10cm
  • Shock resistance:≥20N.n
  • Protection level:IP68

Specification:

Parameter Packing Detail
Size(mm): W*D*H(mm) Φ230×320 Carton size(mm) 490×420×720/8pcs
weight(Kg) 2.48 CBM(m³) 0.148
cable in/out 4 in /4 out Gross weight(Kg) 21.24
Cable diameter(mm) Φ7-Φ20 Others
Tray capacity 24(single core)
Max tray number 6 Fiber storage box metal box
Core capacity 144(single core) Installation wall mounting(optional)
Sealing type Heat shrinkable tube&Silicon rubber pole mounting(standard)
