Specifications
Brand Name :
Qingdao Zhenxiong Mechanical Equipment Co., Ltd.
Model Number :
ZX - RQG
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 set
Price :
220000 - 320000USD per set
Payment Terms :
L/C,T/T
Supply Ability :
20 sets per month
Delivery Time :
15 - 25 working days
Packaging Details :
After being wrapped with stretch film , it is shipped unpacked in the container.
Type :
ZXPE - 63 / 110 / 160 / 250 / 315 / 630 / 800 / 1200
Pipe spec :
20 - 1200 mm
Max.output :
According to the model
Speed :
According to the model
Description

High Yield Plastic Pipe Machine HDPE Gas Pipe / Water Pipe Extrusion Machine Price Concessions

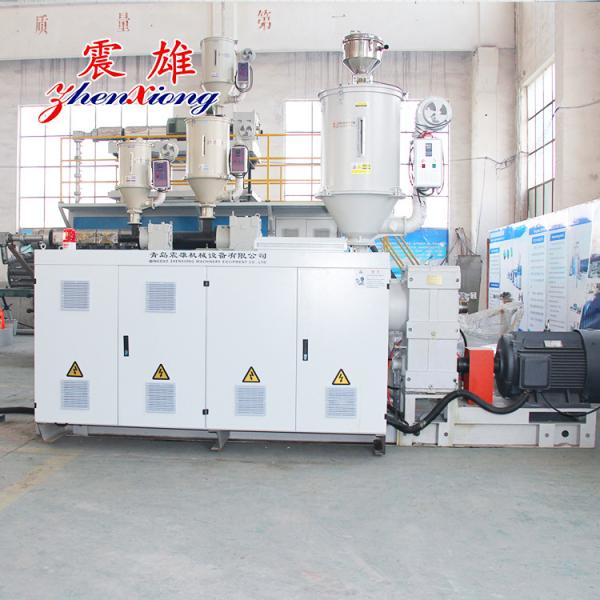

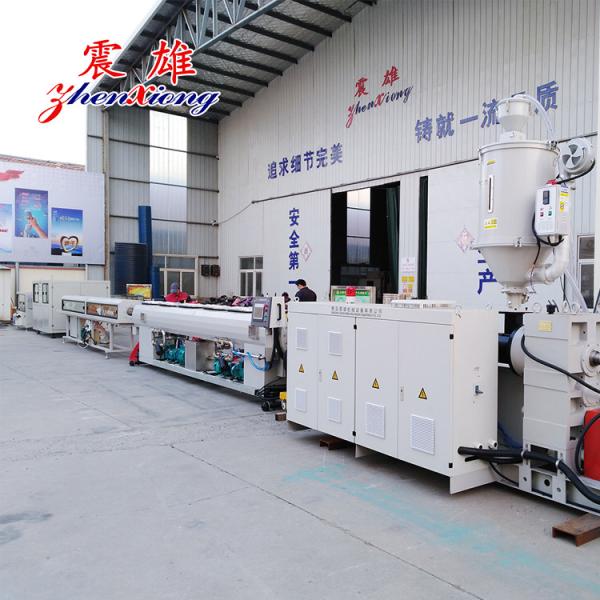

HDPE gas/water supply pipe extrusion production line saves 30% energy: optimizing screw structure+reverse slotting design of feeding section to ensure high production capacity while low-temperature melting of materials and uniform plasticization. The heating system of the extruder heats up quickly, and the main motor adopts a servo motor, which has the same extrusion volume and good energy-saving effect.
Core advantages:
  • The HDPE gas/water supply pipe extrusion production line can produce two-layer, three-layer, multi-layer composite pipes or reinforced composite pipes by replacing pipe molds and increasing the number of single screw extruders.
  • The HDPE gas/water supply pipe extrusion production line mold is made of 40Cr mold steel material, which has been quenched and tempered, forged, and plated with hard chromium treatment, making it more resistant to wear and tear, strong in deformation resistance, and high in precision.
  • The vacuum shaping box and spray box have stable vacuum degree, which can provide uniform cooling capacity around the pipe and meet sufficient cooling length of the pipe.
  • Special screw design, fast heating and warming up, main motor using servo motor, same extrusion volume, good energy-saving effect.
  • The HDPE gas/water supply pipe extrusion production line adopts the German INOEX brand gravity metering device, which has high accuracy in meter weight control and improves the quality of pipe materials.

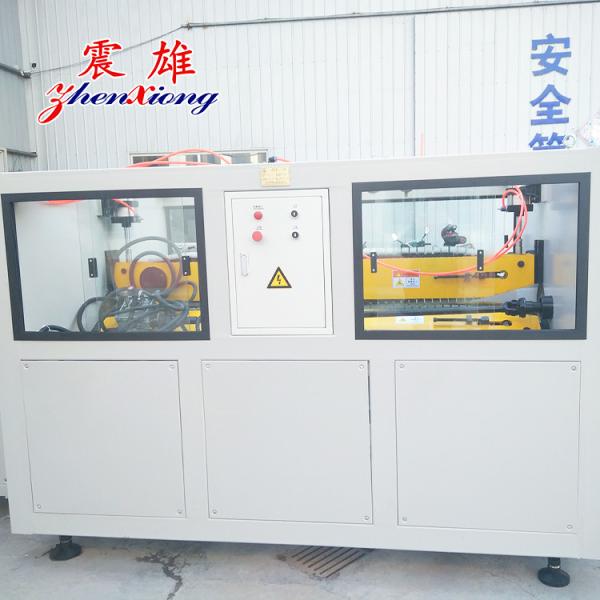

  • A reasonable traction structure ensures that the pipe is always consistent with the traction center, making it convenient for users to adjust.

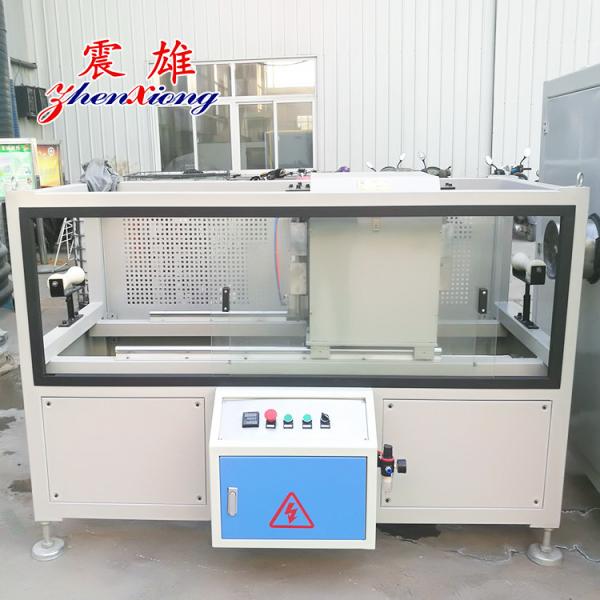

  • The end face of the pipe cut by the fully automatic chip free cutting machine is smooth, flat, noiseless, dust-free, low-energy consumption, avoiding waste and saving materials for users.
  • The Siemens PLC control system allows operating parameters to be freely defined and displayed on the screen.
Application scope:
The pipes produced by this line have significant performance advantages in terms of stiffness, flexibility, heat resistance, aging resistance, mechanical strength, creep resistance, corrosion resistance, and thermal connectivity. Widely used in urban water supply network systems, urban and rural drinking water pipelines, chemical/food/forestry/light industry/papermaking and other industrial material and liquid transportation pipelines, agricultural irrigation pipelines, postal and telecommunications lines, power line protection sleeves, mining mortar transportation pipelines, and postal and telecommunications lines.

Type

Pipe spec

(mm)

Extruder

Max.output (kg/h)

Speed

(m/min)

Total power (kw)

ZXPE-63

20-63

SJ50/33

120

0.2-16

65

ZXPE-110

20-110

SJ65/33

220

0.2-10

115

ZXPE-160

63-160

SJ75/33

300

0.3-6

160

ZXPE-250

75-250

SJ80/33

400

0.2-5

200

ZXPE-315

160-315

SJ90/33

550

0.2-2

250

ZXPE-630

315-630

SJ120/33

900

0.1-1

420

ZXPE-800

400-800

SJ135/33

1200

0.08-0.8

500

ZXPE-1200

630-1200

SJ150/33

1400

0.05-0.5

650
