Lightweight Steel Fire-resistant Metal Carved Board For Temporary Housing
Lightweight Steel Fire-resistant Metal Carved Board For Temporary Housing
Specifications
Brand Name :
HY
Model Number :
09
Place of Origin :
Tianjin,China
MOQ :
1 piece
Payment Terms :
Prepayment starting from 30%
Supply Ability :
1000m per day (in stock)
Delivery Time :
3 days
Packaging Details :
Packaging of individual items
Style :
Modern
Overall frame material :
Hot-dip galvanized Q235 steel, thickness 3mm
Customization :
Customized as needed
Application :
K value ≤1.5W/(㎡ · K), and it can maintain an indoor temperature difference of ≤8℃ in an environment ranging from -10℃ to 40℃
Origin :
China
Fire resistance grade :
The wall panels and floors meet the B1 grade flame-retardant standard
External dimensions :
length 6000mm× width 2400mm× height 2500mm
Service life :
15 years
Description

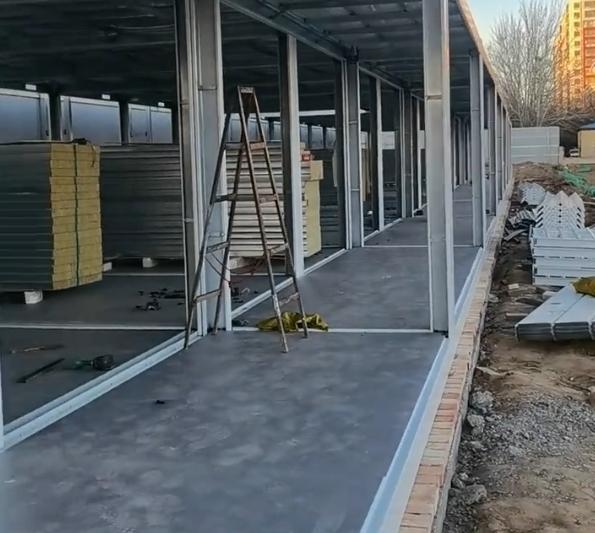

Customizable prefabricated movable panel houses - an efficient solution for temporary housing
Core Features: Quick Construction and Flexible Adaptation​
Prefabricated activity board houses adopt standardized components produced in factories. On-site assembly does not require complex procedures, and a single set can be installed within a day, significantly shortening the construction period. Its modular design supports multi-unit combination, which can be expanded into different functional spaces such as dormitories, offices, and meeting rooms according to needs, adapting to scenarios such as construction sites, field work camps, and emergency shelters. At the same time, the lightweight nature of the panels reduces transportation costs, and they can be reused after disassembly, featuring both economy and environmental protection.​
Customization is available according to your needs.​
Key Parameter Configuration Table​
​
Parameter Category​
Specification Details​
Main Material​
Steel structure frame + color steel sandwich panel (wall panel thickness optional: 50mm/75mm)​
Standard Single Set Size​
6m in length × 3m in width × 2.8m in height (can be combined and expanded, with no upper limit on the maximum combined area)​
Thermal Insulation Performance​
In winter, the room temperature is 8-10℃ higher than the outdoor; in summer, it is 5-7℃ lower (without auxiliary equipment)​
Service Life​
Main structure: 10-15 years; sandwich panel: 5-8 years​
Foundation Requirements​
No need for concrete pouring, can be placed on hardened ground or gravel cushion​
Weight of Single Set​
Approximately 1.2-1.5 tons (easy for hoisting and transportation)​




Application Scenarios: Multiple Needs from Temporary to Semi-Permanent​
  • Engineering Construction Field: Serve as dormitories for construction workers and project offices to meet short-term on-site needs.​
  • Public Service Scenarios: Quarantine sites for the epidemic, temporary shelters after disasters, quickly responding to emergency needs.​
  • Commercial Activity Scenarios: Temporary exhibition halls for exhibitions, rest areas for outdoor events, flexibly coping with short-term crowds gathering.​
  • Agriculture and Mining Industry: Field care houses, temporary rest rooms in mining areas, adapting to construction conditions in remote areas.​
One-Sentence Q&A​
  1. How many people can a single set of board house accommodate for accommodation?​
The standard model can place 4 bunk beds, accommodating 8 people (single/double layouts can be customized).​
  1. Is a professional team required for assembly?​
A professional team of 3-4 people with simple tools can complete the installation of a single set within a day.​
  1. Can it resist heavy rain or snow?​
With a waterproof structure and 200kg/㎡ snow load capacity, it can cope with moderate to heavy rain and ordinary snowfall.​
  1. Can the internal layout be modified later?​
Partitions can be removed to adjust the space, but professional personnel are required to avoid damaging the structure.​
  1. Is the transportation cost high?​
A single truck can transport 3-4 sets of disassembled components, and the transportation cost is lower than that of traditional building materials.
