Specifications
Battery Type :
LiFePO4
Model Number :
LVB15WTC
Brand Name :
EXLIPORC
Place of Origin :
Guangdong, China
Dimension (L*W*H) :
1000X1300X2199mm
Weight :
2850kg±100kg
Communication Port :
RS485, RS-232, CAN
Protection Class :
IP54
Grid connection :
Off grid, Hybrid grid, On grid
Cooling :
Liquid Cooling
System Rated Voltage :
832V DC (High Voltage Architecture)
Battery Chemistry :
LiFePO4 (Lithium Iron Phosphate)
Cell Technology :
Hithium 314Ah Grade A (8,500+ Cycles)
Inverter Integration :
Integrated 125kW Bi-directional PCS
Thermal Management :
Active Liquid Cooling (TMS)
Application Scenarios :

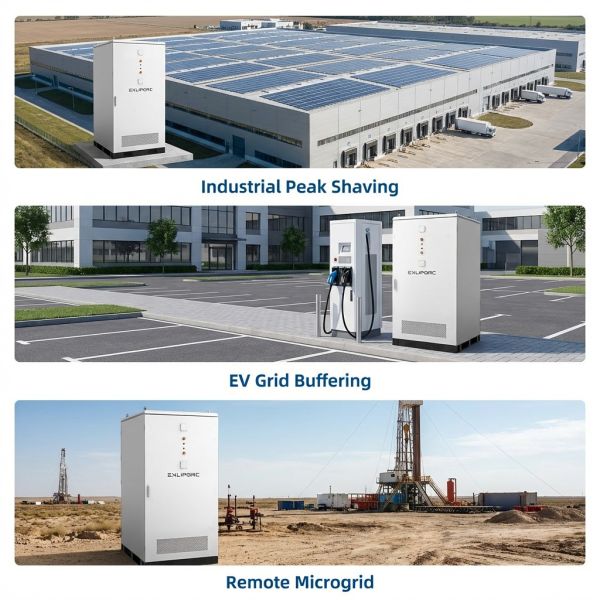

Factory Peak Shaving, EV Charging, Microgrid
Protection Rating :
IP54 Outdoor Rated All-weather Cabinet
Cycle Life :
8,500+ Cycles @ 0.5C/0.5C
Safety Standard :
Multi-tier BMS + Fire Suppression (Aerosol)
Certifications :
IEC 62619, CE, UN38.3, MSDS
MOQ :
1
Price :
$29,312-33,198
Description

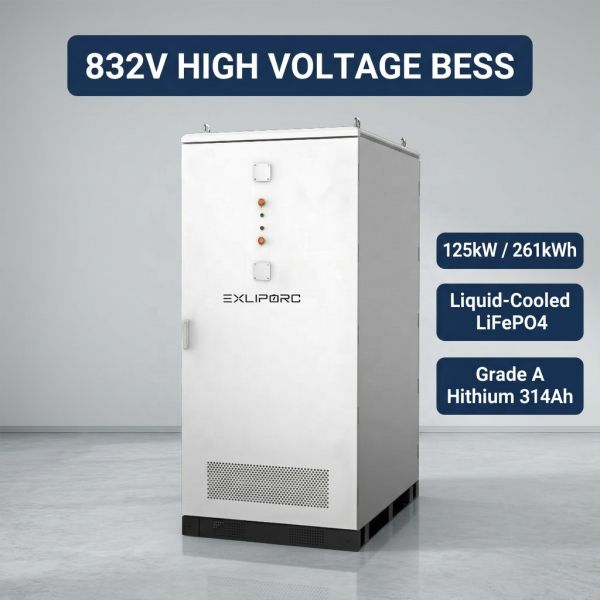

832V High Voltage LiFePO4 Industrial & Commercial Energy Storage System 125kW 261kWh BESS Hithium 314Ah
Product Overview
  • 832V High Voltage Architecture: Maximum efficiency with 3-5% improved Round-Trip Efficiency (RTE) compared to traditional low-voltage systems, reducing current-related heat loss for faster ROI and superior power stability.
  • Advanced Liquid Cooling & Grade A Cells: Engineered with premium Hithium 314Ah cells offering 8,500+ cycle life. Integrated Liquid Cooling (TMS) maintains cell temperature difference within ±3°C for thermal stability and safety.
  • All-in-One Integrated Commercial Solution: Complete BESS integrating 125kW PCS, BMS, EMS, and TMS in a single IP54-rated outdoor cabinet. Designed for rapid deployment with minimal site preparation.
  • Industrial Grade Safety & Compliance: Multi-tier safety architecture with real-time cell-level monitoring and integrated Aerosol fire suppression system. Fully compliant with IEC 62619 and CE standards.
Product Images
832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS 832V High Voltage LiFePO4 Energy Storage System with 125kW Bi-directional PCS and 8,500+ Cycles BESS
About EXLIPORC

Founded in 2017 and located in Shenzhen, EXLIPORC specializes in lithium battery solutions and provides comprehensive services including quality control, inspection, and after-sales support. Our modernized quality management system adheres to international standards.

Our battery models are widely used in Energy Storage Systems, commercial and industrial applications, E-bikes, E-scooters, RVs, golf carts, forklifts, and other transportation tools.

We adhere to "quality of products in order to survive, credibility and development services" as our business purpose, providing customers with excellent services and products. Most models have international certifications including UL, TUV-CB, CE, ROHS, FCC, IEC62619, EMC, UN38.3 and MSDS.

Our mission is "Live Green, Save Green" as we work to establish long-term successful business relationships worldwide.
