Specifications
Battery Type :
LiFePO4
Model Number :
LVB15WTC
Brand Name :
EXLIPORC
Place of Origin :
Guangdong, China
Dimension (L*W*H) :
1000X1300X2199mm
Weight :
2850kg±100kg
Communication Port :
CAN, RS485
Protection Class :
IP54
Grid connection :
Hybrid grid, On grid
Cooling :
Liquid Cooling
Product name :
All-in-One Outdoor Liquid-Cooled Energy Storage Cabinet
Series-parallel Mode :
1P260S
Nominal Voltage :
DC:832V
Rated Capacity :
314Ah
Rated Energy :
261.25kWh
Operating Voltage :
DC:650V~949V
Max Current :
200A (DC side)
Overall Efficiency :
≥88%@25℃±2℃,0.5P
Cycle Life :
≥8500 cycles@25℃±2℃,0.5P,70%SOH
Keywords :
Cabinet Energy Storage
MOQ :
1
Price :
€25,248.75-28,609.51
Description
Industrial BESS 125kW 261kWh Liquid Cooling 3 Phase 400V High Voltage Energy Storage System
Product Overview

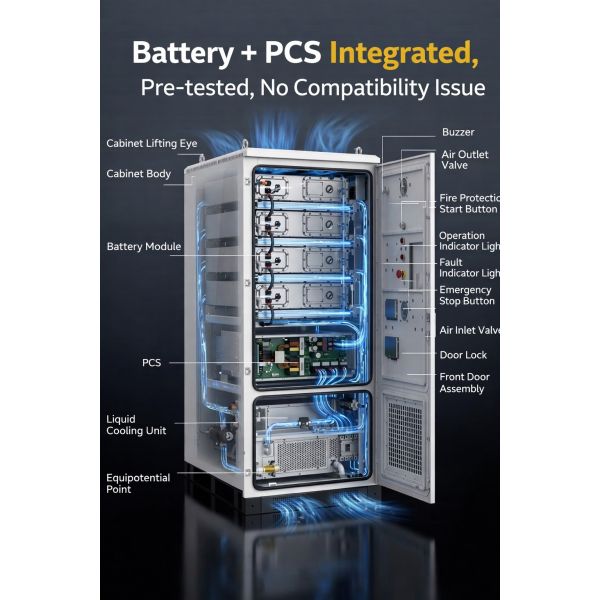

Commercial & Industrial Energy Storage Solution designed for EPC contractors and industrial energy projects. This 125kW / 261kWh liquid-cooled BESS integrates battery, PCS, BMS, EMS, fire protection, and thermal management into one compact outdoor cabinet.
Key Specifications
  • Power Rating: 125kW
  • Energy Capacity: 261kWh
  • High-voltage 832V platform
  • 3-phase 400V output
  • ≤100ms switching time
  • Operating temperature: -20°C to 50°C
  • Battery life: Over 8500 cycles
Advanced Features
  • Liquid cooling system for precise temperature control
  • Multi-level fire detection and automatic suppression
  • Water fire interface for industrial safety
  • Active/reactive power control
  • Harmonic suppression (THD <2%)
  • Black start capability
  • Grid-connected and off-grid operation
Applications

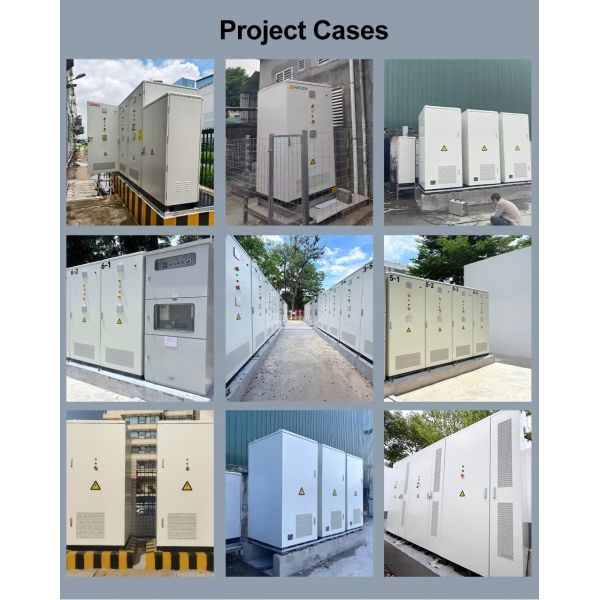

Ideal for peak shaving, solar integration, backup power, and microgrid projects. Pre-installed and factory tested for reduced on-site installation time.
For industrial and commercial use only. Not designed for residential applications.
Product Images
Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications Industrial 125kW 261kWh Liquid Cooling Energy Storage System BESS for High Voltage Applications
About EXLIPORC
Founded in 2017 and located in Shenzhen, EXLIPORC specializes in lithium battery solutions and provides comprehensive services including quality control, inspection, and after-sales support. Our modern quality management system adheres to international standards.
Product Applications
Our battery models are widely used in energy storage systems, commercial and industrial areas, E-bikes, E-scooters, RVs, golf carts, forklifts, and other transportation tools.
Quality Commitment
We adhere to "quality of products in order to survive, credibility and development services" business purposes. Most models have international certifications including UL, TUV-CB, CE, ROHS, FCC, IEC62619, EMC, UN38.3 and MSDS.
Company Mission
Live Green, Save Green. We are committed to establishing long-term successful business relationships with clients worldwide.
