IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
Specifications
Brand Name :
Sinuo
Model Number :
SN553-RV8000
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood
Frequency Range :
10----60Hz
Max. Load Capacity :
300KG
Acceleration Range :
0---11G
Waveform :
Sine wave
Equipment Weight :
500KG
Table Size :
1000mm×800mm
Equipment Dimensions :
W1050mm×D820mm×H680mm
Power Supply :
AC220V/50HZ/Single-phase
Description
IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
Product Overview

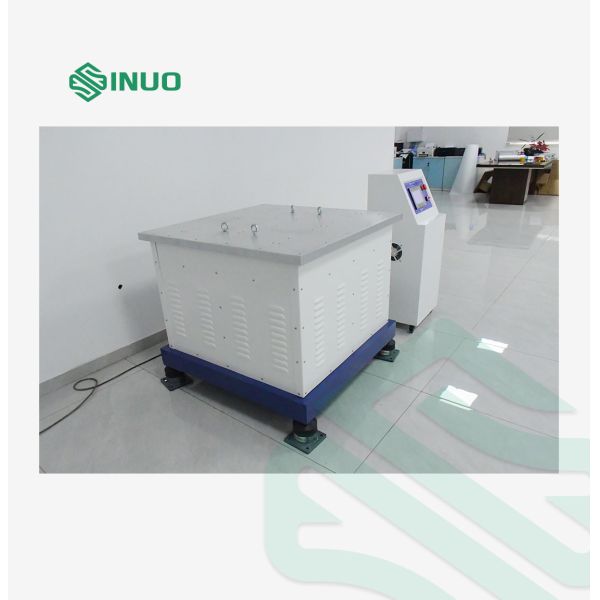

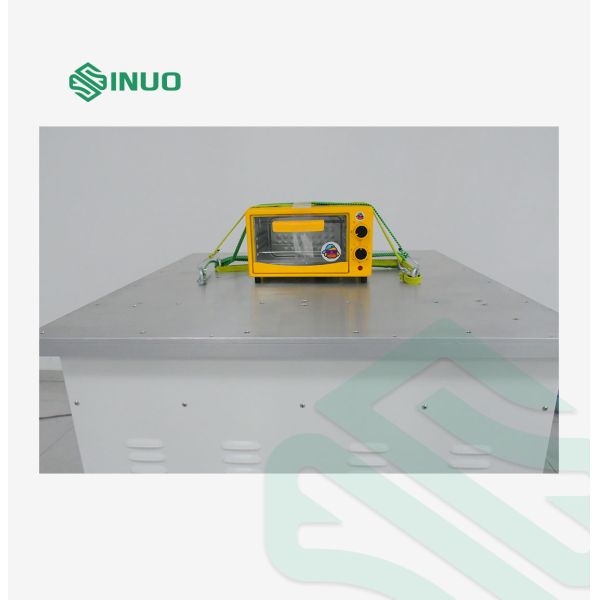

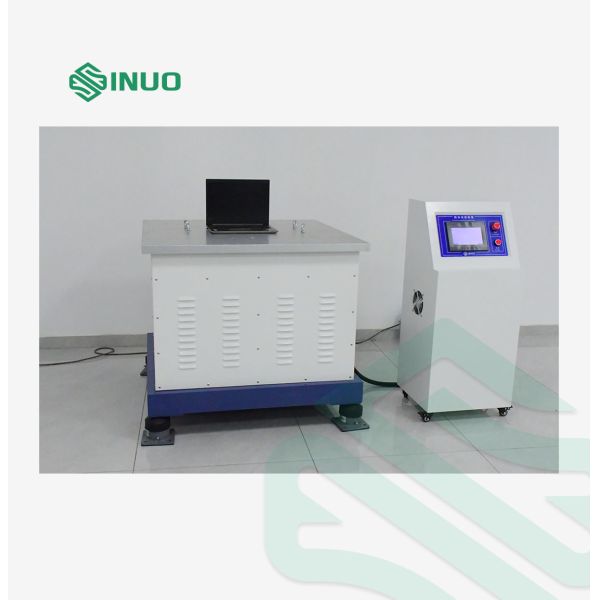

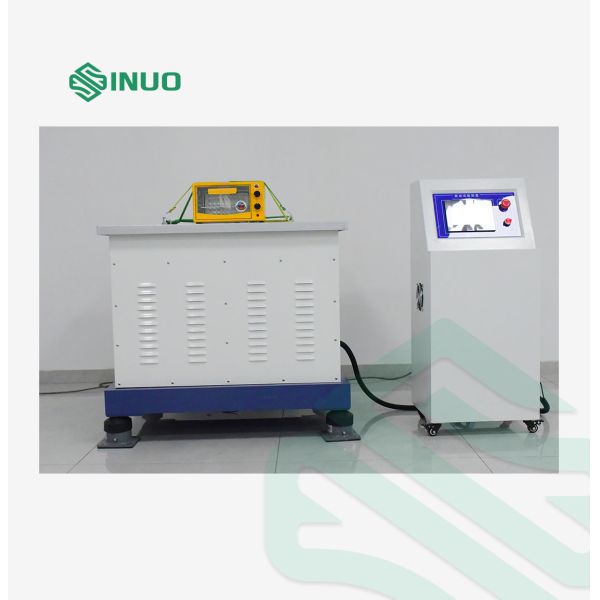

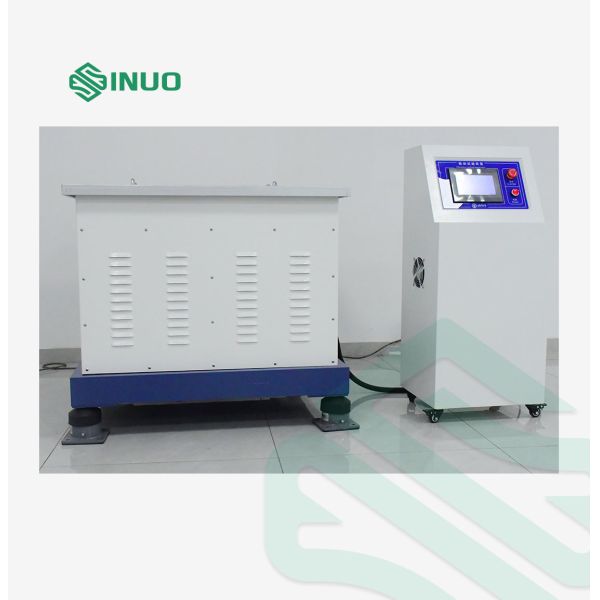

The SN553‑RV8000 Mechanical Vibration Testing Machine is designed to simulate transportation vibration and mechanical shock for household appliances, electronics, components, modules, instruments, and electromechanical products. It fully complies with reliability test standards including IEC 60068, MIL‑STD‑810, ISO 10816, and UL, making it ideal for quality verification, reliability testing, and transport simulation.

IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
Technical Parameters

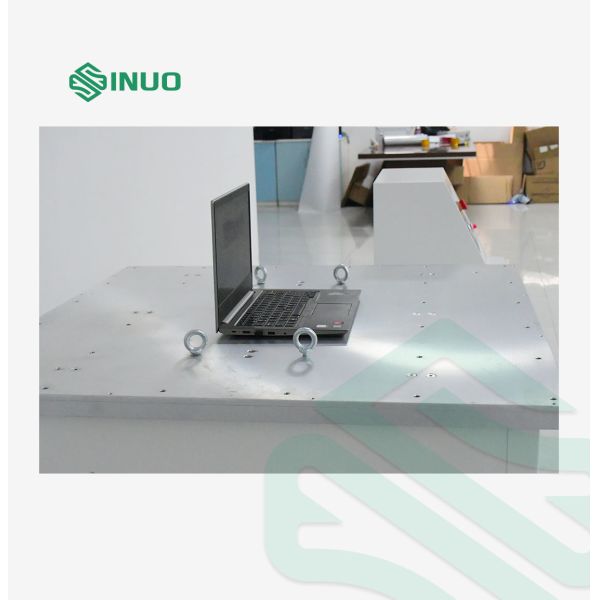

Table Size

1000mm×800mm

Frequency Range

10----60Hz

Max. Load Capacity

300KG

Acceleration Range

0---11G

Amplitude Range

0—2.6mm(P-P),adjustable

Control Interface

RS232 /9P

Functions

Fixed frequency, sweep (logarithmic Oct/min, linear), multi-stage random

Waveform

Sine wave

Vibration Direction

Vertical (X/Y/Z directions achieved by adjusting product orientation)

Equipment Dimensions

W1050 mm×D820 mm×H680 mm

Equipment Weight

500KG

Power Supply

AC220V/50HZ/Single-phase
Product Features
  • Centrifugal excitation structure, low noise, stable performance
  • Synchronous reverse drive for uniform vibration and minimal lateral displacement
  • Lockable casters for easy movement; no fixed foundation required
  • Amplitude preview & stepless adjustment for flexible testing

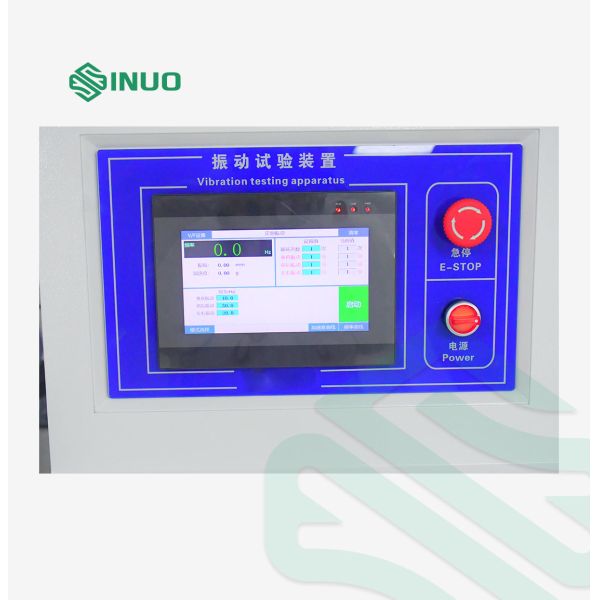

  • Real‑time display: amplitude, acceleration, frequency, test time & cycles
  • User‑friendly Chinese/English Windows operation interface
  • Supports unlimited test parameter groups & test report printing
  • Wide application: household appliances, electronics, components, modules, instruments
Product Details
IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
IEC 60068 Compliant Mechanical Vibration Testing Machine With 300KG Load
