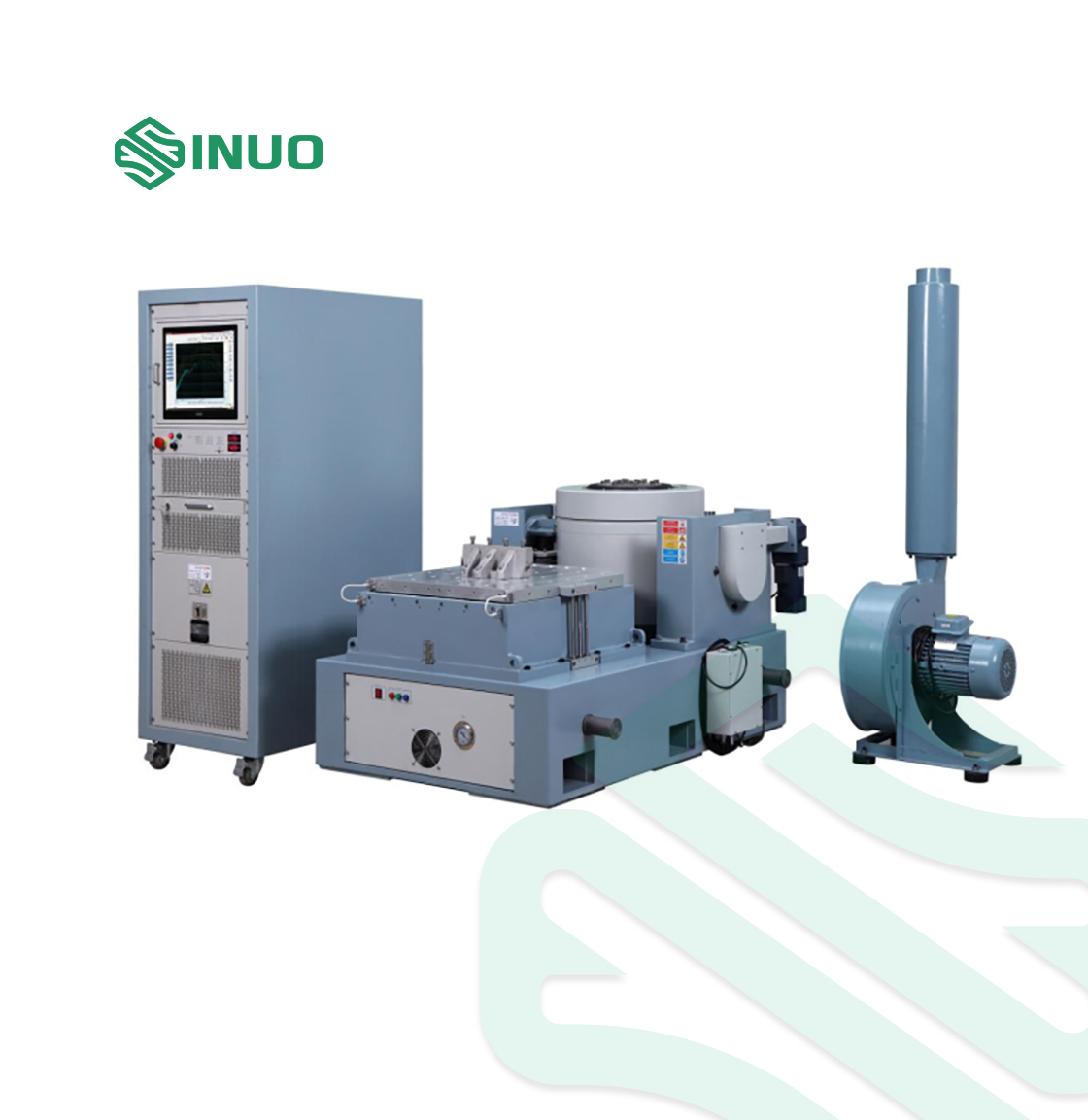

11KN High-power Vibration Tester – Full-band Sine, Random & Shock Simulation
Product Overview

Sinuo 11KN electromagnetic vibration test machine is a high-precision industrial environmental testing equipment designed for product mechanical reliability verification. It simulates real-world vibration, mechanical excitation and shock loads to detect structural stability and performance durability of industrial components, solving product failure risks caused by vibration impact in transportation, operation and extreme working environments.
Widely applicable to aerospace, automotive, marine, electronic circuit and home appliance industries, the system fully complies with global mainstream testing standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM. It supports professional formula-based model selection and customized testing schemes, becoming the preferred testing equipment for global manufacturers and third-party laboratories for product qualification certification.

Technical Parameters

A11S24 electromagnetic excitation generator parameters

Maximum sinusoidal excitation force

1100kg.f peak (11KN)

Maximum Random Exciting Force

1100kg.f rms (11KN)

Maximum impact excitation force

2200kg.f peak (22KN)

Frequency Range

1～3300 Hz

Maximum displacement

51 mm p-p

Maximum speed

2m/s

Maximum acceleration

100G(980 m/s2)

First-order Resonant Frequency

3100 Hz±5%

Effective load

300 kg

Vibration isolation frequency

2.5 Hz

Moving coil diameter

Ф240 mm

Moving coil weight

10kg

Screw on the table

16×M10

Flux leakage

＜10gauss

Allowable Eccentric Moment

300N·m

Equipment size

920Lmmx740Dmmx785mm (without expansion table)

Equipment weight

About 1100Kg (without horizontal slip table)

LA12K digital switching power amplifier

Output power

12KVA

Output voltage

100V

Output current

100A

Amplifier Efficiency

≥90%

Switching Frequency

116KHz

Signal-to-Noise Ratio (SNR)

≥65dB

Noise Level

≤70dB

Amplifier size

910Lmmx610Dmmx1150Hmm

Servo protection system

Function

Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss

Digital vibration controller VCSusb-2

Hardware configuration

2 simultaneous input channels, 1 output channel

Sine, random, classical shock

Control computer

Brand-name computer with 17" LCD monitor, keyboard and optical mouse

Software

With bilingual (Chinese/English) operation interface, it supports time-domain and frequency-domain analysis, signal source control, sine sweep analysis, and more. It can automatically generate WORD test reports, and features functions for signal/data display, storage, test parameter configuration, and data analysis.

Acceleration sensor LTE C04A07

Frequency range: 1-8000Hz

Sensitivity: 30pc/g

Temperature range: -40 - 160℃

VT60 vertical extension table

Material

Aluminum/Magnesium alloy, surface hard anodized

Table size

600mm×600mm

Fixed hole

M8 stainless steel screw sleeve, durable and wear-resistant

Usage frequency

Sine:2000 Hz; Random: 2000Hz

Weight

About 45KG

HG60 horizontal oil film slide table

Material

Aluminum/Magnesium alloy, surface hard anodized

Table size

600mm×600mm

Fixed hole

M8 stainless steel screw sleeve, durable and wear-resistant

Usage frequency

Sine:2000 Hz; Random: 2000Hz

Weight

About 57KG

B402S cooling fan(Including silencer)

Fan power

4KW

Fan flow rate

40.8m³/Min

Fan pressure

0.049kgf/cm2

Electrical requirements

Power supply

AC 3-phase 380V/50Hz, 25 KVA

Compressed Air

0.6Mpa

Ground resistance

≤4Ω
11KN High-power Vibration Tester – Full-band Sine, Random & Shock Simulation

Equipment Performance & Structural Advantages

1. Optimized Vibration Table Body Structure

Adopts precision cast and manually polished moving coil, matched with dual bearing axial guidance and photoelectric load support system. It effectively suppresses axial deviation and rotational displacement during high-frequency vibration tests, greatly improving test stability and service life. The double magnetic circuit design realizes uniform magnetic field distribution and ultra-low flux leakage, avoiding interference with test specimens and surrounding equipment. The surface adopts phosphating anti-corrosion treatment and high-grade car paint technology, with excellent wear resistance and rust resistance for long-term industrial continuous operation.
Equipped with honeycomb air duct and double-layer shunt heat dissipation structure, matched with low-noise silencer fan, it solves the overheating problem of long-time high-load testing, realizing low-noise and high-efficiency heat dissipation.

2. High-efficiency Digital Switching Power Amplifier

LA12K digital power amplifier adopts advanced IGBT technology and sinusoidal frequency multiplication PWM modulation algorithm, with signal-to-noise ratio ≥65dB and working efficiency over 90%. It meets EU CE safety standards, features stable output, low noise and strong anti-interference ability. The electronic automatic current sharing technology ensures balanced power output, effectively avoiding signal distortion and ensuring the authenticity and accuracy of vibration test data.

3. Full-protection Servo Safety System

Built-in multi-dimensional safety protection mechanism, covering over-voltage, under-voltage, phase loss, over-current, over-temperature, over-displacement, external fault and logic error protection. It can automatically alarm and stop the machine in case of abnormal conditions, protecting test samples, equipment body and operators, realizing zero-risk test operation.

4. High-precision Intelligent Vibration Controller

Adopts 32-bit floating-point DSP processor (main frequency 300MHz) and 24-bit high-resolution ADC/DAC chip, with dynamic control range over 90dB and signal-to-noise ratio over 100dB. Independent control loop design separates PC operation from system control, ensuring real-time response and ultra-high control precision.
Support three core test modes: random vibration, sine sweep and classical shock. It covers rich sweep modes, pulse waveforms and frequency bands, meets MIL-STD-810, ISO and industrial standards. The bilingual Chinese/English system supports one-click generation of Word/PDF test reports, with complete data analysis, curve display and data storage functions, convenient for laboratory certification and factory quality inspection filing.

5. Multi-directional Test Expansion Capability

Equipped with 600*600mm magnesium alloy vertical and horizontal test platforms, with hard anodized surface and durable M8 stainless steel screw sleeves, supporting high-frequency long-term testing. The independent horizontal oil film slide table is equipped with natural granite base and separate oil source, with strong lateral restraint and high overturning moment resistance, meeting multi-angle and multi-directional vibration test requirements of large and irregular specimens.
