Specifications
Brand Name :
Sinuo
Model Number :
SN553- EV203HG60VT60VCSusb-2
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1 set per month
Delivery Time :
30 days
Packaging Details :
plywood case
Sine Force :
300Kg.f peak （3KN）
Random Force :
300Kg.f rms （3KN）
Impact Force :
600Kg.f peak（6KN）
Frequency Range :
1～4500 Hz
Maximum displacement :
25 mm p-p
Maximum acceleration :
100G(980 m/s2)
Maximum load :
120 kg
Maximum speed :
2.0m/s
Description
ASTM & IEC Laboratory Vibration Test Equipment For Automotive Components
Product Overview

Vibration testing is essential for predicting product reliability in real-world environments. Whether you are testing automotive components, aerospace systems, hardware, or consumer electronics, our system helps you validate mechanical integrity under sine, random, and shock conditions.

Sinuo provides complete exciter and control solutions, supporting global standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.

Do you need to test battery packs, PCBs, or complete assemblies? This system handles vertical and horizontal vibration with high precision.
ASTM&IEC Laboratory Vibration Test Equipment For Automotive Components
Technical Specifications
Specification Value
Maximum sinusoidal excitation force 300Kg.f peak (3KN)
Maximum Random Exciting Force 300Kg.f rms (3KN)
Maximum impact excitation force 600Kg.f peak (6KN)
Frequency Range 1～4500 Hz
Amplitude 40mm p-p
Maximum displacement 25 mm p-p
Maximum speed 2.0m/s
Maximum acceleration 100G (980 m/s²)
Maximum load 120 kg
Vibration isolation frequency 2.5 Hz
Moving coil diameter Ф150 mm
Moving coil weight 2.8kg
Screw on the table 13×M8
Flux leakage ＜10gauss
Equipment size 750Lmm x 560Dmm x 670mm (Vertical Table)
Equipment weight 600Kg

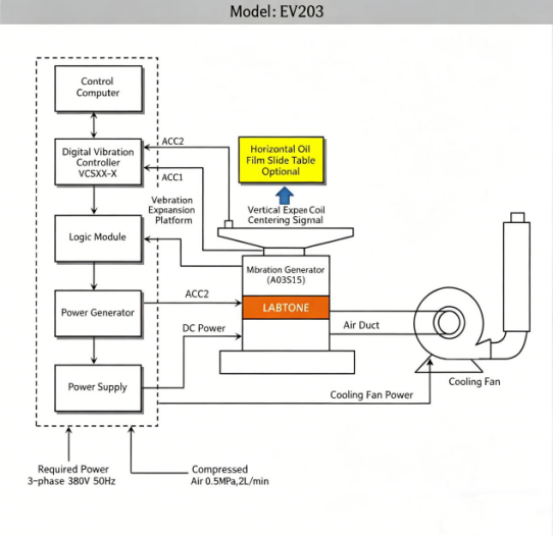

System Components
Component Description
Vibration Generator A03S15 electromagnetic exciter with dual-bearing guidance
Power Amplifier LA3K digital switching (IGBT, 3 kVA)
Controller VCSusb-2 with 2 input / 1 output channels
Expansion Tables VT60 vertical (600×600 mm) + HG60 horizontal oil film slide
Cooling Fan B751 with silencer (11 m³/min)
Sensors 2 × LTE C04A07 accelerometers (50 mV/g, 1-8000 Hz)
Control PC Industrial computer, bilingual software
Accessories Cables, tool kit, clamps, manuals, calibration certificate
Digital Vibration Controller Functions

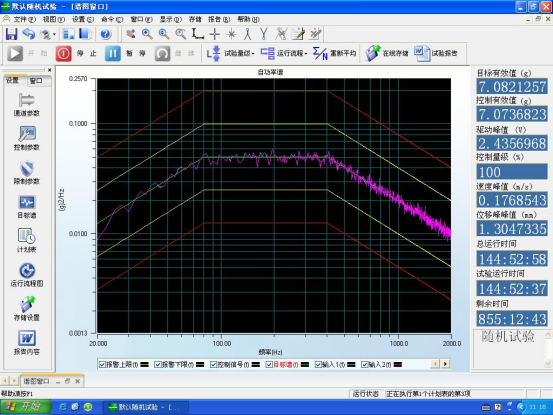

Random Control

According to the user-defined power spectrum diagram (made by the target spectrum editor), random control adopts the method of transfer function equalization. Continuously output Gaussian random signals to quickly implement real-time and accurate multi-channel closed-loop control. Built-in adaptive control algorithms react quickly to system nonlinearities, resonant frequency, and load changes.

  • Frequency range: 0~4800Hz, extendable to 18750Hz
  • Resolution: 100, 200, 400, 800, 1600, 3200 spectral lines
  • Control power range: >90dB
  • Control strategy: single channel control, weighted average, maximum value, minimum value
ASTM&IEC Laboratory Vibration Test Equipment For Automotive Components

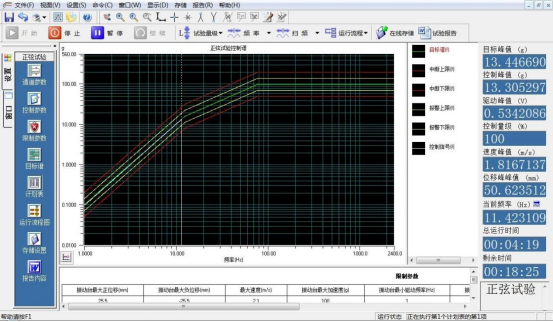

Sine Control

Sine provides analog-quality sine and sine sweep signals with control over the amplitude of the sine waveform. The dwell magnitude, dwell frequency can be set, and the dwell duration can be determined by setting the time or the number of cycles of the sinusoidal signal.

  • Frequency range: 1Hz~5000Hz, expandable to 10000Hz
  • Closed loop time: 5ms
  • Harmonic distortion: <-100dB
  • Frequency sweep mode: linear frequency sweep 0~6000 Hz/min | Logarithmic sweep 0~100 Oct/min
  • Sweep direction: up, down
  • Sweep duration: can be set as the number of sweeps or test times
ASTM&IEC Laboratory Vibration Test Equipment For Automotive Components

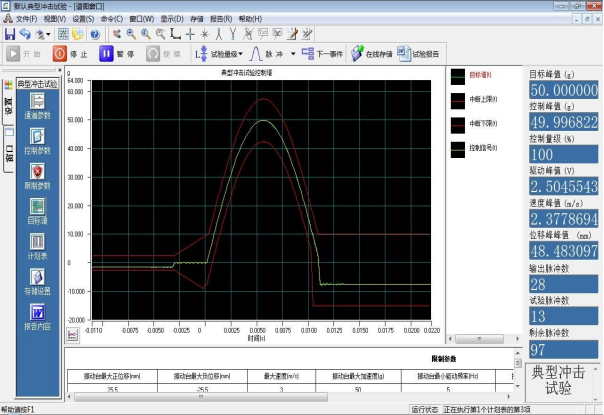

Classical Shock

Adopt transfer function equalization method, support half sine wave, bell wave, rectangular wave, trapezoidal wave, front peak sawtooth wave, back peak sawtooth wave, triangular wave. Users can also input pulse peak value according to their needs.

  • Pulse duration from 0.5 to 3,000mS
  • Maximum analysis bandwidth 18750Hz
  • Frame size: up to 16384
  • Meet the standards: MIL-STD-810 (US standard), ISO standard, user-defined interrupt control limit
ASTM&IEC Laboratory Vibration Test Equipment For Automotive Components
