High-Capacity Vibration Testing System with Integrated Electrodynamic Shaker
High-Capacity Vibration Testing System with Integrated Electrodynamic Shaker
High-Capacity Vibration Testing System with Integrated Electrodynamic Shaker
High-Capacity Vibration Testing System with Integrated Electrodynamic Shaker
High-Capacity Vibration Testing System with Integrated Electrodynamic Shaker
High-Capacity Vibration Testing System with Integrated Electrodynamic Shaker
Specifications
Brand Name :
Sinuo
Model Number :
SN553-EV222HG80VT80
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30 days
Supply Ability :
5 sets/month
Packaging Details :
plywood case
Price :
Customized
Sine Force :
2400Kg.f
Random Force :
2200Kg.f
Shock Froce :
4400Kg.f
Max.Velocity :
2m/s
Max Acceleration :
100G (980 m/s2)
Payload :
400 kg
Description
High-Capacity Vibration Testing System with Integrated Electrodynamic Shaker
Product Application
Vibration testing involves exciting or shocking components and devices to simulate real-world environmental conditions. This system is designed for a wide range of industrial applications including circuit boards, aircraft, ships, rockets, missiles, automobiles, and household appliances.
Sinuo provides comprehensive excitation and testing solutions that comply with national and international standards including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC, and ASTM.
Vibration Machine Selection and Generator Structure
  • Customer-provided test conditions
  • Test types: Sine sweep; Random
  • Frequency response range: 2-5000Hz
  • Formula: A(g)=(2πf)²Dcm/980≒A=0.002DmmF² | D=A/0.002F² | F=M(kg)×A(g)
Equipment Configuration

Item

Configuration

Qty.

1)

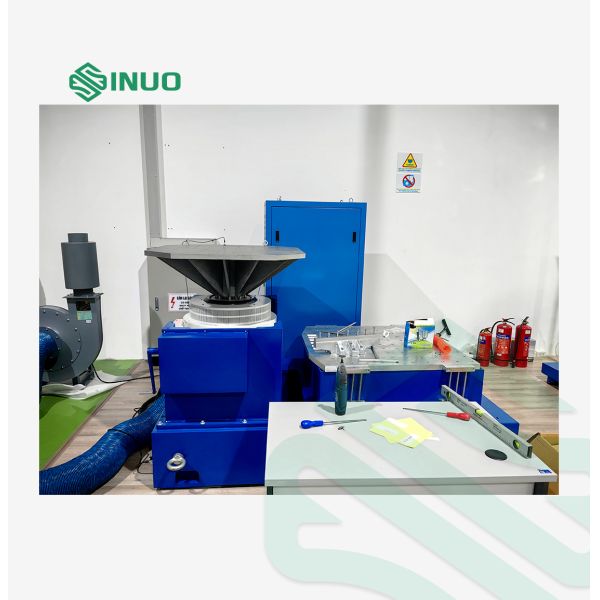

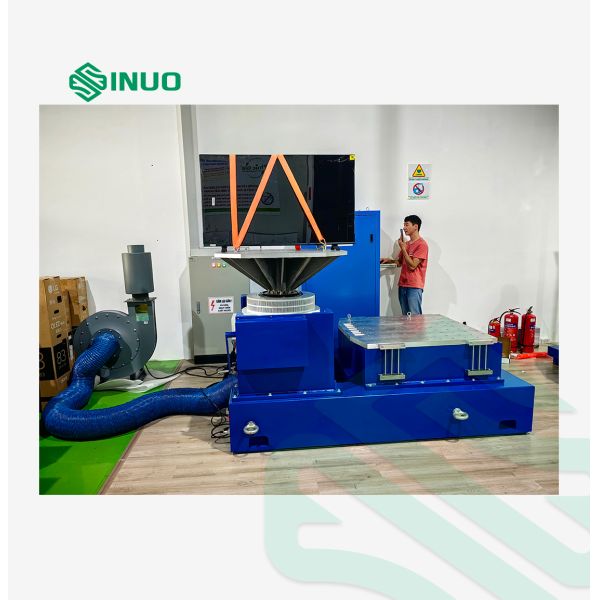

Vibration shaker



A20S34 shaker (included Pneumatic Centering Controller)

1 set


B752S blower (included silencer and Duct )

1 set


Head Expander VT80CM

1 set

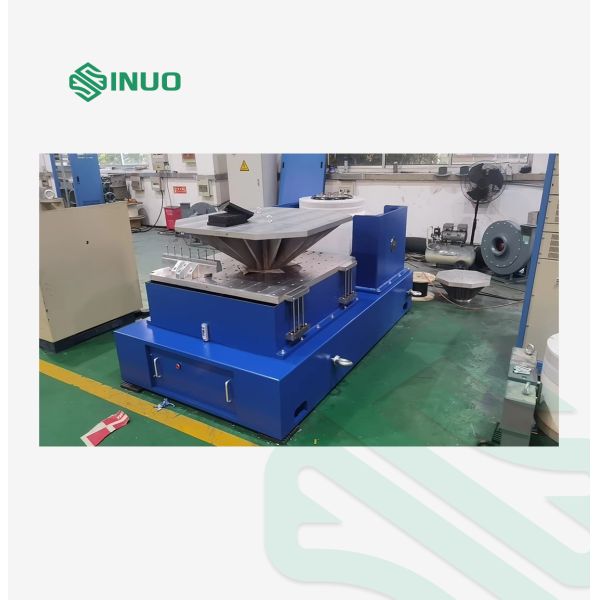

Horizontal Slip table HG80M

1 set

2)

Power Amplifier



LA20K Power amplifier(including Field power supply)

1 set

3)

Vibration Controller-Vcs-02

(Including Hardware and Control Functions Program software CDS



Accelerometer (Including Length 7m low noise BNC-M5 cable)

2 set


Computer(Including keyboard, mouse and monitor)

0 set

4)

Documentation

Operation Manual, Packing List

1 set

5)

Accessories



Maintenance Tools

1 set


Standard Spare Parts



Specification


Shaker Specifications

Peak Sine (Pk)

2400Kg.f peak (24KN)

Random (RMS)

2200Kg.f rms (22KN) @ISO5344

Shock (Pk)

4400Kg.f peak (44KN) @6ms

Usable Frequency

DC～3000Hz

Maximum Displacement (p-p)

51mm (2inch)

Max. velocity

2m/s

Max. acceleration

Sine:100g (980 m/s2)；Random: 60g (588 m/s2)

Vertical Load Support

400 kg

Body Suspension Natural

Frequency (Thrust Axis)

Less than 2.5 Hz

Armature Diameter

Ф340 mm

Armature Weight

About 24kg

Fundamental Resonance

Frequency (Bare table)

2,600 Hz (nom.) +/- 5%

Load Attachment

Points (Standard)

21stainless steel M10 Inserts

Stray Flux Density

＜10gauss

Allowable partial force

500.N.M

Shaker dimensions

1190mmL×860mmD×1060mmH

Power Amplifier Specifications LA20K

Rated Output Capacity

22KVA

Signal to Noise Ratio

Greater than 65 dB

Amplifier Efficiency

Greater than 90%

Amplifier Overall Dimensions

650mmL×920mmD×1780mmH


Main Features


1) Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
3) High efficiency D class power switching, 3-sigma peak current, low power consumption and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety reliability
5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different applications
7) Simple controller operation
