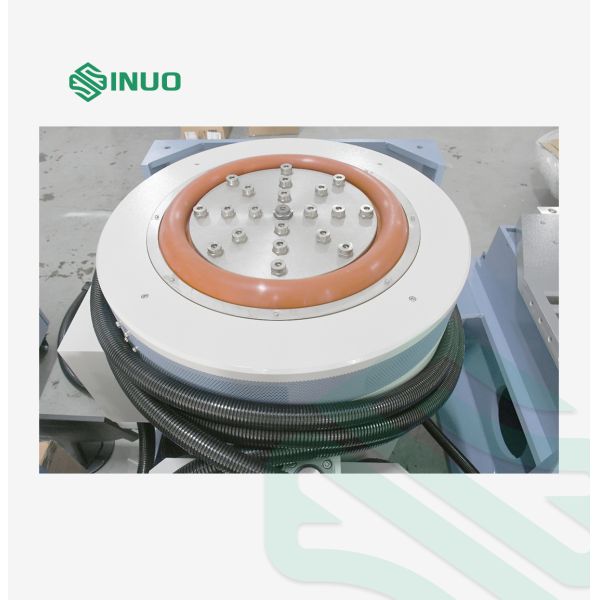

ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing
ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing
ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing
ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing
ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing
ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing
ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing
ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing
Specifications
Brand Name :
Sinuo
Model Number :
SN553-EV203
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30 days
Supply Ability :
5 sets/month
Packaging Details :
Plywood Case
Price :
Customized
Max Acceleration (g) :
100
Max Displacement :
50.8 mm
Max Exiting Force :
600 kg
Max Velocity :
4.200 cm/s
Frequency Range :
2.1 - 3000 Hz
Payload :
5.200 kg
Description


ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing



Product Overview


Our 100G Vibration Shaker Machine is specifically designed for carton package vibration testing to meet a range of industry standards, including: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, and more. This high-performance equipment ensures that your products undergo rigorous testing to simulate real-world shipping conditions, providing valuable insights into packaging integrity and durability.

Key Specifications


1. Max Exiting Force: 600 kg

2. Frequency Range: 1 - 3000 Hz

3. Max Displacement: 50.8 mm

4. Max Velocity: 200 cm/s

5. Payload: 200 kg

6. Power Supply: AC 3-phase 380V / 50Hz

Performance Specifications


Vibration Generator

VG300/40

Frequency Range (Hz)

2-2500

Max Exiting Force (kg.f)

300

Max Displacement (mm p-p)

40

Max Acceleration (g)

100

Max Velocity (cm/s)

120

Payload (kg)

120

Armature Mass (kg)

3

Armature Diameter (mm)

φ150

Cooling Method

Forced Air Cooling

Vibration Generator Weight (kg)

460

Power Amplifier

Amp3k

Aggregate Capacity (KW)

9

Features


1. Suspension System: The strong suspension and linear motion guiding ensure exceptional carrying capacity and high stability, making it suitable for a variety of vibration testing scenarios.

2. Performance: High-efficiency D-Class power conversion ensures optimal power consumption with minimal harmonic distortion. The 3-Sigma peak current delivers precise vibration control.

3. Safety and Reliability: Equipped with rapid self-test diagnostics and chain safeguard features, the shaker offers enhanced safety and reliability for both short-term and long-term operations.

4. Vibration Isolation: The air gasbag isolation damping device eliminates the need for special foundations, while effectively reducing vibration transmission.

5. Versatility: Can be applied to both vertical and horizontal vibration testing tables for different applications.

6. Easy Operation: The shaker system is designed for simple operation with a user-friendly controller interface.


ISTA Standard 100G Vibration Shaker Machine for Carton Package Testing
