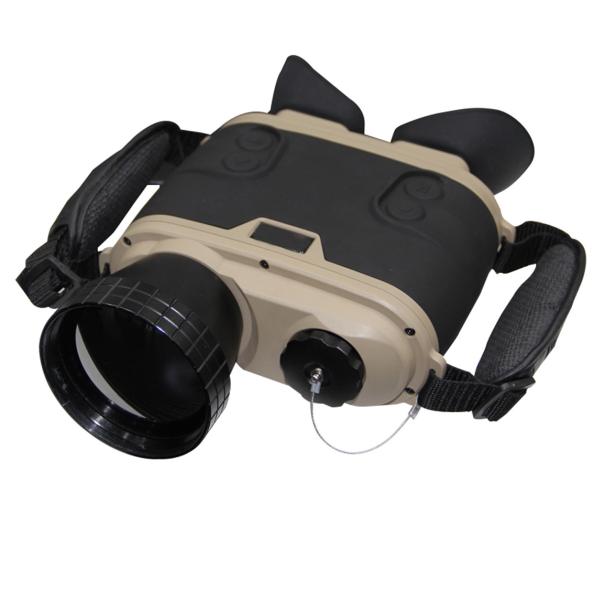

Anti Vibration Thermal Imaging Binocular Handheld IP66 For Comfortable Viewing
Anti Vibration Thermal Imaging Binocular Handheld IP66 For Comfortable Viewing
Specifications
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
Description

Features:
1.High-Performance Thermal Imaging
Resolution: 640×512 IR sensor
Thermal Sensitivity: ≤50mK (high detection accuracy)
Spectral Band: 8–14 μm (optimal for environmental conditions)
Frame Rate: 50Hz (smooth real-time imaging)
2.Dual-Binocular Design for Comfortable Viewing
OLED Display: High-contrast, low-latency imaging
Adjustable Eyecups: Reduces eye strain during prolonged use
Diopter Adjustment: Custom focus for individual users
3.Rugged & Reliable Construction
IP66 Rating: Dustproof and waterproof for harsh environments
Anti-Vibration Design: Stable imaging even in dynamic conditions
Shock-Resistant Housing: Reinforced structure for durability

Details

Detector type

Uncooled focal plane detector

Specifications

640×480@17μm

Working band

8～14μm

Frame rate

50Hz

Sensitivity

<60mK@300k

Eyepiece

800×600OLED binocular microdisplay Imaging time: <5 seconds Image degradation

Noise

digital filtering

Image adjustment

automatic/manual adjustment

Electronic zoom

×2/×4

Lens focal length

75mm/F1.0

Field of view

8.3°×6.2°

Focusing method

Manual photography

Function

JPEG format photo and video recording function;MPEG4 format video recording storage and output;Recording format 640×480 (optional): Built-in 16G card; USB2.0 interface output

Observation distance

Personnel (1.7m×0.5m)

Detection:2.0km

Recognition:0.7km

Vehicle ( 2.3m×2.3m)

Detection: 3.5km

Recognition: 1.5km

Power supply

One 26650 rechargeable lithium battery 3.7V@5000mAH

Working voltage range

DC: +2.8V～+5.0V

Normal working power consumption

<3.0W working

Time: Continuous working time

≥6 hours

Product protection level

IP66 Anti-vibration;Sweep frequency 5-200-5Hz, acceleration 2.5g

Shock resistance

30g/11ms half sine wave

Storage temperature

-40°C～+60°C

Operating temperature

-30°C～+50°C

Product weight

<1.2kg (excluding battery)

Overall size (mm)

220 (L) × 170 (W) × 85 (H)
