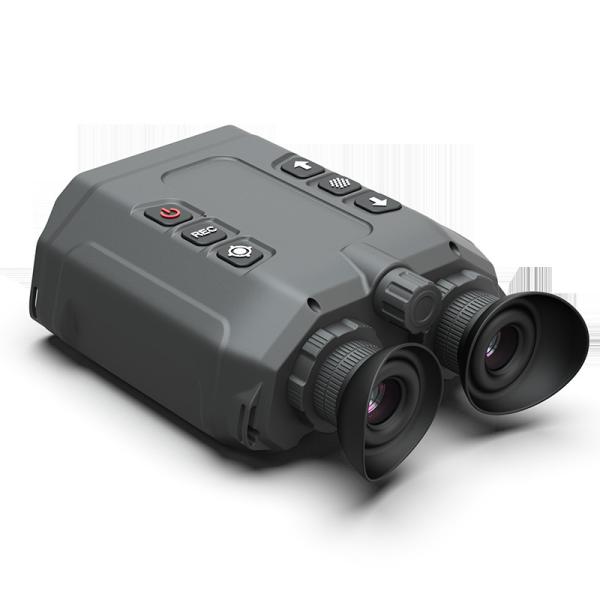

Integrated Thermal Imaging Binocular Portable With Electronic Compass
Integrated Thermal Imaging Binocular Portable With Electronic Compass
Specifications
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Description

Features:
1.Integrated Laser Rangefinder (LRF)
High-precision distance measurement (e.g., up to 1000m+).
Instant targeting for tactical, hunting, and surveying applications.
2.Real-Time GPS & Beidou Dual Positioning
Accurate global positioning with dual-satellite support (GPS + BeiDou).
Tracks and logs coordinates for navigation and mission mapping.
3.Electronic Compass & Pitch Angle Sensor
Provides azimuth (bearing) and tilt angle for precise directional awareness.
Enhances situational awareness in outdoor and tactical operations.
4.WiFi & Wireless Data Transmission
Live data streaming to smartphones, tablets, or command centers.
Remote control and real-time viewing via dedicated apps.

Details

Detector type

Uncooled VOX

Resolution

384×288

Frame rate

50Hz

Pixel size

12μm

Band

8-14μm

NETD

≤ 50mk

Objective lens focal length

50mm

Overall magnification

4.8x

Field of view

5.3°×3.9 °

Minimum imaging distance

5m

Diopter adjustment

-5D-5D

Electronic zoom

1X/2X/4X

Color palette

black hot, white hot, green hot, red hot, fusion (outline)

Start-up time

≤5 seconds

Image Enhancement

DDE

Brightness and Contrast

AGC

WIFI

Video Output

Photo/Video

32G

Storage Online Update

Code and GUI

Resources Display Mode

Binocular Imaging

Display Type

OLED

Display Resolution

1024×768

Battery Type

Built-in Lithium

Battery charging

5V TYPEC USB

Operating time with battery

8 hours (without WIFI)

Weight

1100g

Dimensions

180*155*75mm

Protection level

IP67

Working temperature

-40℃-50℃

Storage temperature

-40℃-60℃

Laser equipment

safety level

1

Ranging range

5-2000m

Ranging accuracy

± 1m

Electronic compass

Supports pitch angle

±0~90° or ±0~180°

Roll angle

± 0-90°

Resolution

0.1

Accuracy

2%

Low power consumption

3.3V-5V 18mA

GPS+Beidou positioning system

BDS/GPS/QZSS/GLONASS, which can achieve joint positioning, navigation and timing

Positioning accuracy

2.5 meters (CEP50)

Tracking sensitivity

-162dBm

low Power consumption

continuous operation 25mA@3.3V
