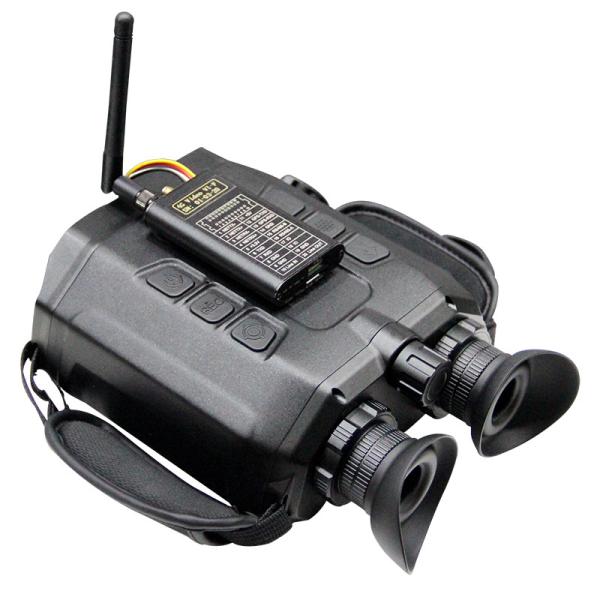

Military Heat Imaging Binoculars 4G Image Transmission Long Range Detection LRF
Military Heat Imaging Binoculars 4G Image Transmission Long Range Detection LRF
Specifications
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
Description

Applications:
1.Military & Defense
Long-range reconnaissance and target acquisition in day/night conditions.
Battlefield surveillance with real-time 4G feed to command centers.
2.Law Enforcement & SWAT
Hostage rescue operations with thermal suspect tracking.
Perimeter security and anti-smuggling surveillance.
3.Border & Coastal Patrol
Detects illegal crossings or maritime intrusions in darkness.
Combines thermal imaging and LRF for accurate distance reporting.

Details

Detector type

Uncooled VOX

Resolution

384×288

Frame rate

50Hz

Pixel size

12μm

Band

8-14μm

NETD

≤ 50mk

Objective lens focal length

50mm

Overall magnification

4.8x

Field of view

5.3°×3.9 °

Minimum imaging distance

5m

Diopter adjustment

-5D-5D

Electronic zoom

1X/2X/4X

Color palette

black hot, white hot, green hot, red hot, fusion (outline)

Start-up time

≤5 seconds

Image Enhancement

DDE

Brightness and Contrast

AGC

WIFI

Video Output 4G

Data Image Wireless Transmission

Photo/Video

32G Storage

Online Update

Code and Graphical User Interface Resources Display

Mode

Binocular Imaging

Display Type

OLED

Display Resolution

1024× 768

Battery type

Built-in lithium battery

Charging

5V TYPEC USB

Working time with battery

8 hours (without WIFI)

Weight

1100g

Size

180*155*75mm

Protection level

IP67

Working temperature

-40℃-50℃

Storage temperature

-40℃-60℃

Laser equipment safety level

1

Ranging range

5-2000m

Ranging accuracy

± 1m

Electronic compass

Support

Pitch angle

±0~90° or ±0~180°

Roll angle

± 0- 90°

Resolution

0.1 degree

Accuracy

2%

Low power consumption

3.3V-5V 18mA

GPS+Beidou positioning System

BDS/GPS/QZSS/GLONASS, can achieve joint positioning, navigation and timing

Positioning accuracy

2.5 meters (CEP50)

Tracking sensitivity

-162dBm

Low power consumption

continuous operation 25mA@3.3V
