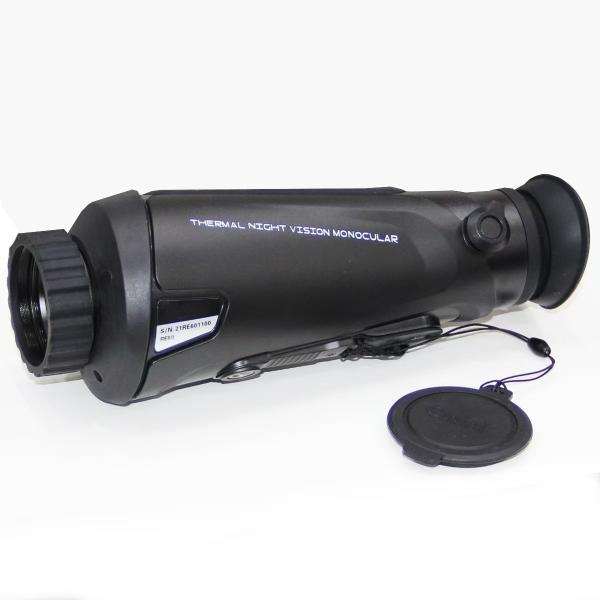

Pocket Sized High Sensitivity Thermal Camera Binoculars Thermal Sight Goggles
Pocket Sized High Sensitivity Thermal Camera Binoculars Thermal Sight Goggles
Specifications
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Description

Features:
1.Compact & Portable Design
Pocket-sized for easy carrying and quick deployment.
Lightweight and ergonomic for one-handed operation.
2.High-Sensitivity Thermal Sensor
Detects heat signatures with precision (e.g., 160×120 or higher resolution).
Temperature measurement range: typically -20°C to 400°C (-4°F to 752°F).
3.Real-Time Thermal Imaging
Displays heat distribution in vivid color palettes (rainbow, ironbow, grayscale, etc.).
High refresh rate (e.g., 25Hz) for smooth imaging.
4.Non-Contact Temperature Measurement
Spot temperature measurement with adjustable emissivity settings.
High/low temperature alarms for safety monitoring.

Details

Uncooled Focal Plane

Detector Type

Pixels

384×288

Image function

Field of view

14°*10.5°

Focal length: 25mm

Noise equivalent temperature difference

<50mk@30℃

Frame rate

50HZ

Focus

fixed focus

Electronic zoom

2X, 3X, 4X

Wavelength range

8-14μm

Image transmission

WiFi real-time image transmission, supports mobile APP image browsing, photo taking, video recording and other functions

Cross cursor

Yes

Hotspot tracking

Yes

Laser pointer

Yes

Picture-in-picture

Yes

Ranging

yes

Image display

Monitor

Color 1280*960

Image polarity

black hot, white hot, red hot

Dimension adjustment

Adjust by knob

Power Systems

Battery type

lithium battery, rechargeable

Battery working time

5 hours of continuous operation

Charging type

supports USB charging, can be powered by an external power bank

External power supply

DC5V/2A (Micro USB)

Environmental parameters

Working temperature

-20℃- +50℃

Storage temperature

-40℃- +60℃

Protection level

IP66

Drop

1M

physical properties

Weight

0.45kg

Size

＜190x70x70mm

Interface

Power interface

Yes

Video output

PAL

USB

external charging

Configuration list

thermal imaging, USB data cable, video cable, shoulder strap, soft bag, lens cleaning cloth, manual, warranty card, color box
