Custom Industrial Fiber Switch 1310nm / 1550nm 20km Long Transmission Distance
Custom Industrial Fiber Switch 1310nm / 1550nm 20km Long Transmission Distance
Custom Industrial Fiber Switch 1310nm / 1550nm 20km Long Transmission Distance
Custom Industrial Fiber Switch 1310nm / 1550nm 20km Long Transmission Distance
Custom Industrial Fiber Switch 1310nm / 1550nm 20km Long Transmission Distance
Custom Industrial Fiber Switch 1310nm / 1550nm 20km Long Transmission Distance
Specifications
Brand Name :
MESTECHS
Model Number :
MTE200
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
45 work days
Price :
Negotiable
Supply Ability :
200sets/week
Packaging Details :
Common package
Port :
AC / 220V power input (European type terminal)
Transmission wavelength :
TX：1310nm/RX：1550nm
Cable :
UTP and STP
Operating temperature :
-40℃～70℃
Description

Industrial Custom Optical Switch MFE200

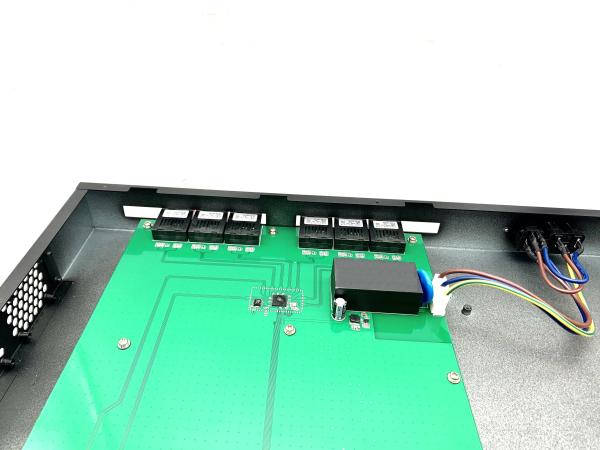

MFE200 is a 100-megabyte single-mode single-fiber optical transceiver, which provides 2 100Mbps cable interfaces and 2 FC optical fiber interfaces. It can carry out long-distance data and video signal transmission through optical fiber, and converge the optical signal of the remote equipment to the upper computer through the electrical port after conversion.

MFE200 USES wavelength division multiplexing technology, sending wavelength 1310nm, receiving wavelength 1550m, through a single mode optical fiber simultaneously transmit receive and send data, the longest transmission distance of 20 km.It can be used together with ipf-r08 to give full play to product performance.

Feature

  • 2 megabit FC optical fiber interface, 2 megabit RJ45 interface
  • Based on wavelength division multiplexing technology, single mode single fiber transmission, the maximum transmission distance is 20 km
  • Working wavelength: 1310nm (sending), 1550nm (receiving)

Specification

Supported Standards

IEEE 802.3

IEEE802.3i

IEEE 802.3u

IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x
Port 2 100Mbps FC optical fiber interface
2 10Mbps/100Mbps adaptive port (RJ45)
AC / 220V power input (European type terminal)
Transmission wavelength TX:1310nm
RX:1550nm
Cable UTP and STP
Optical fiber 9/125um single-mode fiber
LED Optical and electrical port Link/Act, PWR
Power 100-240V～ 50/60Hz
Size 440mm×222mm×44.5mm
Operating temperature -40℃～70℃
Operating humidity 10% ~ 90%RH non-condensing
Storage temperature -40～85℃
Storage Humidity 5% ~ 90%RH non-condensing
Average transmitted power -14 ～ 7dBm
Receive sensitivity -32dBm
Data transfer rate per port 100 MBPS full-duplex

Order Information

Product Description Order Code

Industrial Custom Optical Switch MFE200
