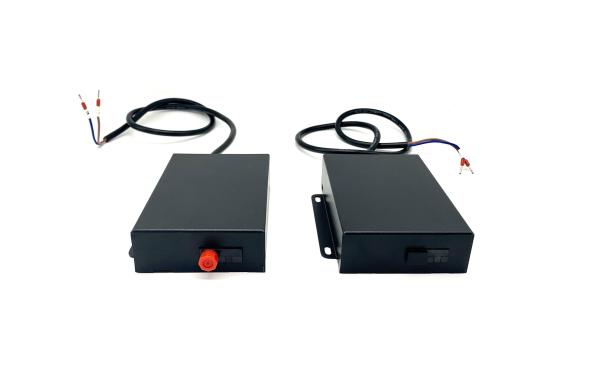

Outdoor Industrial Ethernet Device , Industrial Fiber Converter 220V AC Input Ethernet To Fiber
Outdoor Industrial Ethernet Device , Industrial Fiber Converter 220V AC Input Ethernet To Fiber
Outdoor Industrial Ethernet Device , Industrial Fiber Converter 220V AC Input Ethernet To Fiber
Outdoor Industrial Ethernet Device , Industrial Fiber Converter 220V AC Input Ethernet To Fiber
Outdoor Industrial Ethernet Device , Industrial Fiber Converter 220V AC Input Ethernet To Fiber
Outdoor Industrial Ethernet Device , Industrial Fiber Converter 220V AC Input Ethernet To Fiber
Specifications
Brand Name :
MESTECHS
Place of Origin :
CHINA
Model Number :
IPA-R08
MOQ :
1
Payment Terms :
T/T
Supply Ability :
200sets/week
Delivery Time :
45 work days
Price :
Negotiable
Packaging Details :
Common package
material :
Fiber copper power line
power input :
100-265 AC
standard :
ADSL HD-PLC 802.3
application :
industrial outdoor railway
Description

IPF-R08 industrial outdoor broadband power line communication to fiber converter 220v AC input ethernet to fiber


IPF-R08 is an industrial optical to carrier repeater, the upper interface is 100 megabytes single-mode single-fiber FC fiber interface, and a broadband power line carrier interface + 100 megabytes Ethernet port is provided to realize the power line carrier signal Ethernet and optical port signal conversion, long-distance data and video signal transmission through optical fiber.
IPF-R08 upload uses WDM technology, sending wavelength is 1550nm, receiving wavelength is 1310nm, simultaneously transmitting and sending data through a single-mode optical fiber, the longest transmission distance is 20km.
IPF-R08 uses industrial design, wide working temperature range, good reliability, outstanding quality, superior performance, suitable for residential areas, enterprises, roads, factories, mines, buildings and other monitoring scenarios.

Feature

  • one 100-megabit FC fiber uplink interface;
  • one PLC power line carrier interface (multiplexing 220V power supply interface);
  • one RJ45 Ethernet port;
  • Based on WDM technology, single-mode single-fiber transmission, the longest transmission distance is 20km,
  • working wavelength: 1550nm (send), 1310nm (receive)
  • Operating temperature: -40℃ ~ 70℃


Specification

Hardware Specifications
Supported Standards:

IEEE 802.3 IEEE802.3i IEEE 802.3u

IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x
Port One 100Mbps FC Fiber Interface
One 10Mbps/100Mbps RJ45

SH-PLC communication interface (Europe type terminal)
and AC/220V Shared with power input
Transmission wavelength TX:1550nm
RX:1310nm

Transmission media
Line UTP and STP
Optical 9/125um single mode fiber
LED Optical port and electrical port Link/Act,PWR
Power 220V/0.012A
Size 94.5mm*73mm*27mm

Operating environment
Operating temperature -40℃～70℃
Operating humidity 10 ～ 90RH non-condensing
Storage temperature -40～85℃
Storage humidity 5 ～ 90RH non-condensing
Average transmitted power -14 ～ 7dBm
Receive sensitivity -32dBm
Data transfer rate per port 100Mbps full duplex



Outdoor Industrial Ethernet Device , Industrial Fiber Converter 220V AC Input Ethernet To Fiber
Order Information

Product Description Order Code
Industrial outdoor broadband PLC fiber converter IPF-R08
