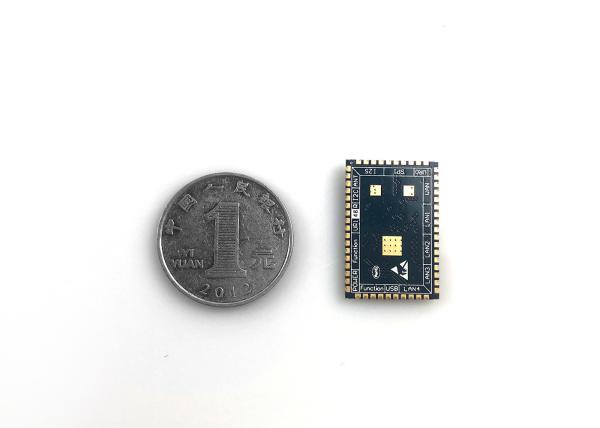

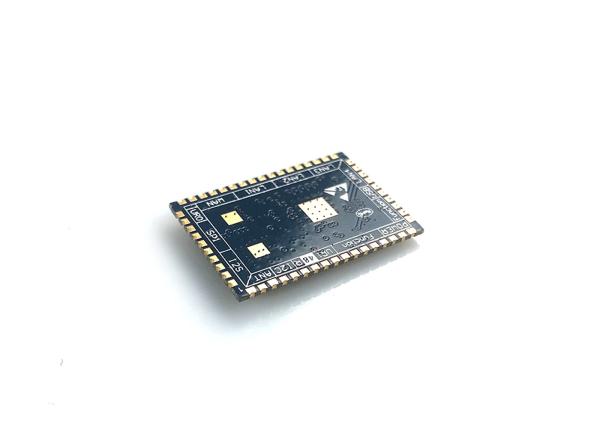

IF05RS 5 ports managed Ethernet switch embedded industrial switch module

The IF05RS is an industrial grade, embedded, managed and redundancy Ethernet switch module which supports 5 Fast Ethernet ports, 2 serial ports and wifi ports.IF05RS embedded module can make the customer's industrial equipment has the function of network management switch and AP.It has integrated functions of serial port server. Each serial port support multiple TCP or UDP session connections and multiple operating modes including TCP Server, TCP Client and UDP, etc. CLI, WEB, Telnet, SNMP and other access methods are also supported.
Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, aerospace, intelligent manufacturing, military project and other industrial fields.

Features and Benefits

• Standards: IEEE 802.3 10Base-T Ethernet
  IEEE 802.3u 100Base-TX Fast Ethernet
  IEEE 802.3x flow control
• Protocol: CSMA/CD,802.11,TCP/IP
• Filtering and Transmitting speed: RS232:9600bps -2500000bps
  Fast Ethernet 100Mbps (half duplex),200Mbps (full duplex);100BASE-TX :148800pps/port
• Network Medium: 10Base-T:Cat 3 or above Cat.3 UTP(≤100m)
  100Base-TX:Cat 5 UTP(≤100m)
• Temperature: Operating Temperature 0 C~40 C (32 F~104 F)
  Storage Temperature -40 C~70 C (-40 F~158 F)
• Humidity: Operating Humidity 10%~90% non-condensing
  Storage humidity 5%~95% non-condensing
• Switch capacity: 1G
• LED Indications: 1* power LED(Power: Red)
  5* port LEDs(Link/Act: Green)

Applications

Specification

Dimension:(mm)

Order Information

Product Description Order Code

Serial to LAN Embedded Module IF05RS
