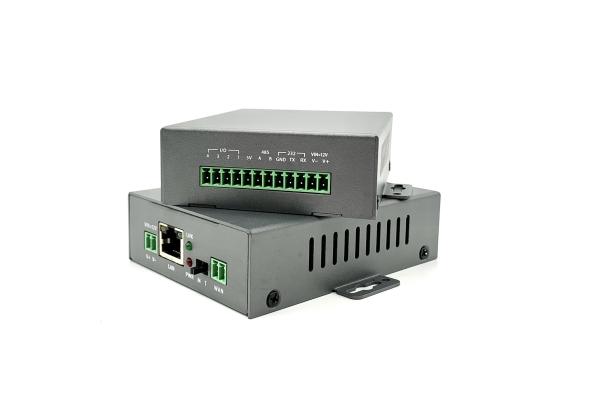

2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50
2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50
2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50
2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50
2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50
2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50
2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50
2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50
Specifications
Brand Name :
MESTECHS
Model Number :
MLE50
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200sets/week
Delivery Time :
45 work days
Packaging Details :
Common package
Uplink WAN :
3.81mm connector (2Pin）
Working frequency :
2-28Mhz
Port Protocol :
TCP/IP
Size :
100x74x26(mm)
Description

Point-to-multi-point networking capability Network Extender MLE50

MLE50 is a broadband network extender developed for the industry market. It adopts more advanced carrier modulation technology and can realize Ethernet and serial port extension on any two wire materials such as twisted-pair cable, coaxial cable and armor wire.Compared with the point-to-point VDSL2 product, MLE50 supports both point-to-point and point-to-multi-point networking mode, plug and play without configuration, and easily realizes the bandwidth upgrade of traditional CAN/485 networking.

  • Support network port and serial port independent networking, also support network port and serial port mixed networking;
  • The point-to-multi-point networking capability can be realized, tree and hybrid cables.
  • The unique relay protocol can double the transmission distance in non-video and non-big data acquisition application scenarios.
  • Compared with point-to-point VDSL2, MLE50 has the advantages of lower power consumption and lower cost.
  • Simplified configuration Settings, factory automatic negotiation CO/CPE state to establish a connection, support dropped automatic reconnection;
  • TCP/IP protocol transmission mechanism is adopted to improve transmission reliability;
  • Suitable for harsh working environment, din-Rail is installed to support wide temperature working range and wide power input range;

Specifications

Hardware interface
Uplink WAN 3.81mm connector (2Pin)
Etherner LAN 10/100M RJ45
Port RS232 3.81mm connector:TTL(2Pin),RS232(2Pin)
LED WAN LINK, ETH LINK
Power input 3.81mm connector (2Pin),,support DC/12-72V
Standard
Modulation technology OFDM
Working frequency 2-28Mhz
Communication protocol IEEE 1901,IEEE 802.3X
Port protocol TCP/IP
Electrical parameters
Size 100x74x26(mm)
Weight 0.16kg
Working voltage DC/12-72V
Largest power 2W
Working temperature -40 to 75°C

Dimensions

2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50

2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50

2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50

Application

2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50

2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50

2-28Mhz 2 Pin 3.81mm Connector Broadband Network Extender MLE50

Order Information

MLE50 Single port network extender host
MLE50-T Single port network extender terminal
MLE50RS Network port + serial port network extender host
MLE50RS-T Network port + serial port network extender terminal
