Specifications
Brand Name :
MESTECHS
Model Number :
ATP70RS
Place of Origin :
CHINA
MOQ :
2
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000pcs/Month
Packaging Details :
Command package
Delivery Time :
35 work days
Medium :
Powerline
Serial :
RS232 to Ethernet
Size :
100X74X26mm
Warranty :
1 year
Description

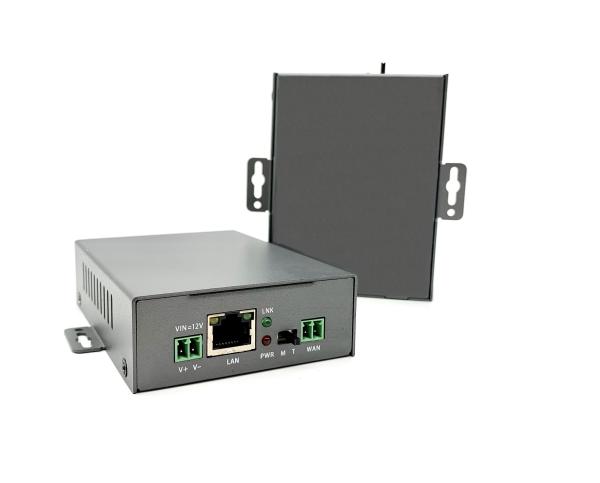

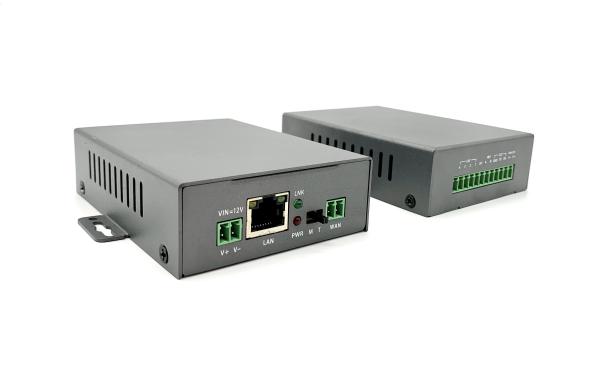

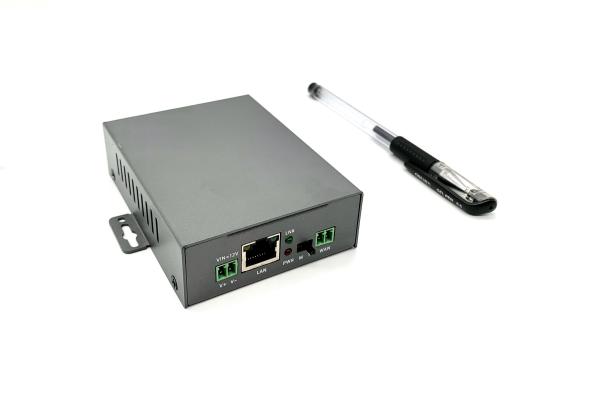

ATP70RS point to multipoint RS232 to Ethernet converter

ATP70 is different from other serial port converters in that it can transmit data on power lines. It can convert RS232 serial port data into Ethernet data and transmit it on the power line by TCP/IP protocol. The local terminal can adopt Ethernet equipment or RS232 serial port equipment.It can realize point-to-point and point-to-multipoint networking communication.Based on ITU-T G.cmsr standard multi-hop technology, can support the maximum 10-level relay, relay delay is less than 10 ms, theoretical maximum distance is 10KM, to meet the needs of long-distance communication.It can connect 128 nodes, and the power consumption of a single machine is less than 4W.

Application scenario

RS232 equipment needs TCP/IP communication with host computer
Many RS232 serial devices need networking communication, and the upper computer is a serial device or an Ethernet device
Point To Multipoint Serial Port Converter Over Broadband Powerline Communication
Network topology

Point To Multipoint Serial Port Converter Over Broadband Powerline Communication
Electrical specifications

Category Item Parameter
Power Input DC12V ~ 48V
Output
Transmission Power dissipation ≤4W
Transmission Medium Telephone lines, twisted pair lines, shoulder lines, armored cables, power lines, etc..
Communication distance Up to 10km(relay mode)
Bandwidth Up to 45Mbps
Appearance Size 100mm(not include master dialing switch) X 74mm(not include Hanging ears) X 26mm
Color gray
Weight 160 g
Interface ETH(Configuration) RJ45(1,2,3,6)
RS232(Tx,Rx,GND) Junction seat(Distance 3.81 mm)
Power in/out Junction seat(Distance 3.81 mm)
Environmental Requirements Operating temperature -40℃-70℃
Humidity 0-95%
Storage temperature -40℃-85℃


Point To Multipoint Serial Port Converter Over Broadband Powerline Communication

Order Information

Product Description Order Code

Ethernet Cable Extender ATP70RS
