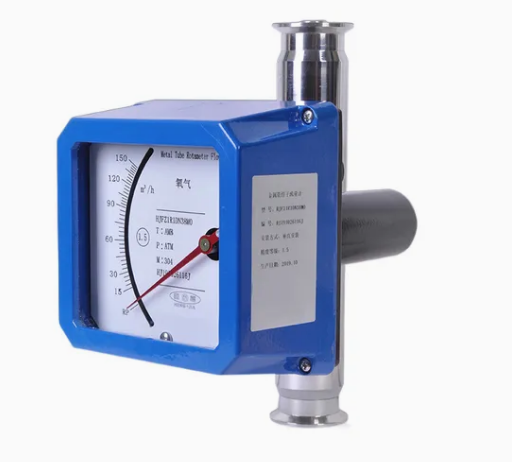

Digital Metal Tube Rotameter High Durability DN15 DN50 for Various Industries
Digital Metal Tube Rotameter High Durability DN15 DN50 for Various Industries
Specifications
Brand Name :
INSTE
Model Number :
INSTE H250
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
200$-1000$
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per day
Delivery Time :
3 work days
Packaging Details :
wooden package
Explosion Proof Grade :
Exia II CT5Ga, Exd II BT5Gb
Connection Form :
Stabndard:DIN2501 standard flange
Port :
Shenghai/ Shenzhen
Display Type :
Analog
Installation Height :
DN15-DN200:250mm; more tahn DN80:350mm
Output :
NO
Scale Units :
L/min
Precision Class :
1.5
Applicable Medium :
Gas, Liquid
Exportation :
NO
Measurement Range :
0-100 L/min
Connection :
Flange
Flow Direction :
Bottom to Top
Warranty :
18 months
Temperature Rating :
Max. 100°C
Description
Digital Metal Tube Rotameter High Durability DN15-DN50 for Various Industries
Product Overview

High durability digital metal tube rotameter designed for various industrial applications with flange vertical mounting capability. This variable area flow meter is suitable for oil, liquid, and gas measurement across multiple industries.

Technical Description

The metal tube float flowmeter is a commonly used area flow measurement instrument in industrial automation process control. It features compact design, stable and reliable operation, and is suitable for measuring liquids and gases at various flow rates in diverse environmental conditions.

The intelligent transmitter utilizes MCU microprocessor technology with magnetic sensors to detect magnetic field changes through advanced digital signal processing including digital filtering and software correction. It provides excellent human-machine interaction through LCD display and outputs 4-20mA current signals with upper and lower limit alarm capabilities.

Key Features & Specifications
Feature Description
01 Suitable for flow measurement of large diameter and low speed media
02 Low requirements for the front and rear straight pipe sections
03 Pointer indicates instantaneous flow rate & LCD dual row display for instantaneous flow rate and cumulative total amount
04 All metal structure suitable for high temperature, high pressure, and highly corrosive media
05 Can be used in flammable and explosive hazardous environments
06 Equipped with data backup and power down protection function (LCD display type)
07 Reliable work with minimal maintenance and long lifespan
08 Wide measuring range ratio 10:1
09 Optional external power supply or built-in lithium battery power supply
10 Multi parameters calibration & keyboard setting alarm (with alarm type)
Advanced Design Features
1
Robust all-metal structure design
2
Suitable for gas and liquid measurement in various industries
3
Cone-shape measuring tube design with wide measuring range and good linearity
4
Wetted parts material options: SS304, SS316L, FEP, Hastelloy C, Titanium
5
Advanced magnetic coupling system design for improved accuracy and stability
Applications: Widely used in flow detection and process control across industrial sectors including defense, chemical, petroleum, metallurgy, energy, medicine, light industry, food, and water treatment.
