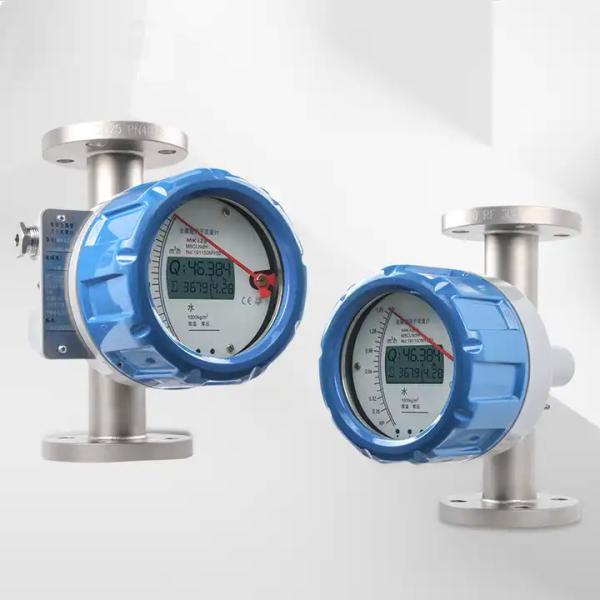

Stable Rotary DN80 Metal Tube Rotameter Long Service Life Industrial Flow
Stable Rotary DN80 Metal Tube Rotameter Long Service Life Industrial Flow
Specifications
Brand Name :
INSTE
Model Number :
INSTE H250
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
200$-1000$
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per day
Delivery Time :
3 work days
Packaging Details :
wooden package
Explosion Proof Grade :
Exia II CT5Ga, Exd II BT5Gb
Connection Form :
Stabndard:DIN2501 standard flange
Port :
Shanghai/guangzhou
Display Type :
Analog
Installation Height :
DN15-DN200:250mm; more tahn DN80:350mm
Output :
4-20mA
Scale Units :
L/min
Precision Class :
1.5
Applicable Medium :
Gas, Liquid
Exportation :
Two-wire System 4~20MA
Measurement Range :
0-100 L/min
Connection :
Flange
Flow Direction :
Bottom to Top
Warranty :
18 months
Temperature Rating :
Max. 100°C
Operating Pressure :
Max. 10 bar
Measuring Range :
0-100 L/h
Display Mode :
Liquid Crystal, Pointer
Accuracy Class :
Standard:1.5; Special: 1.0
Type :
Local display; remote type
Keyword :
metal tube flowmeter
Protection Grade :
IP 65
Measuring Tube Material :
316L, 304, 304 lined with PTFE, etc
Medium :
corrosion, non corrosion meduim
Description
Stable Rotary DN80 Metal Tube Rotameter Long Service Life Industrial Flow

Stable Metal Tube Rotary Flow Meter DN80 With Long Service Life

A DN80 (3-inch) metal tube rotameter is a rugged, variable-area flow meter designed for industrial environments where glass tubes are too fragile. Its all-metal construction—typically stainless steel—provides the structural integrity needed to handle high pressures, extreme temperatures, and corrosive fluids, ensuring a long service life.

Specifications
Parameter Value
Measuring medium Water (20ºC): 6~200000 l/h
Air: 0.05~4000 m³/h
Range ratio 10:1
Accuracy 1.5%
Pressure DN15~DN50: PN4.0MPa
DN80~DN100: PN1.6MPa
Medium temperature Standard: -80ºC ~ +140ºC
High temperature type: 400ºC
PTFE lining: ≤85ºC
Ambient temperature -40ºC ~ +120ºC (teletransmission ≤65ºC)
Medium viscosity DN15: ≤5mPa.s (F15.0~F15.4), ≤30mPa.s (F15.5~F15.9)
DN25: ≤250mPa.s
DN50~DN150: ≤300mPa.s
Display Instantaneous flow: 0 ~ 50000
Cumulative flow: 0 ~ 99999999
Output 2-wire 4 ~ 20mA
Pulse signal: minimum interval 50ms
Alarm signal: open collector, MAX100Ma@30VDC Internal Impedance 100Ω
Power Standard type: 24VDC (10.8VDC ~ 36VDC)
AC type: 220VAC (85 ~ 265VAC)
Flange Standard HG20592 or customized
Threaded type DIN11851 or customized
Electrical Interface M20×1.5, PG11, 1/2"NPT
Overall height Standard: 250mm (except for other installation methods)
Protection grade IP65
Key Features for Stability & Longevity
  • Magnetic Coupling: These meters use a non-contact magnetic system to track the internal float. This eliminates the need for mechanical seals, preventing leaks and reducing wear over time.
  • Corrosion Resistance: For aggressive chemicals, you can choose models with SS316L, Titanium, or FEP/PTFE lining to prevent material degradation.
  • Mechanical Simplicity: With only one moving part (the float), there are no bearings or gears to fail, which significantly lowers maintenance requirements.
  • Stable Readings: Many industrial models include magnetic damping to minimize pointer jitter caused by rapid flow fluctuations or vibrations.
Stable Rotary DN80 Metal Tube Rotameter Long Service Life Industrial Flow Stable Rotary DN80 Metal Tube Rotameter Long Service Life Industrial Flow Stable Rotary DN80 Metal Tube Rotameter Long Service Life Industrial Flow
Frequently Asked Questions
How long will you give me the reply?
We will contact you within 1 hour as soon as we can.
Could I visit your factory?
We sincerely invite you to visit our factory.
Do you provide samples?
Yes, we have materials in stock to help you get samples as soon as possible.
How about the quality of the management?
We have a complete quality control system. All products are fully pre-inspected by QC departments before shipping. We have ISO and CE certifications available.
What is your terms of payment?
We accept T/T, PayPal, Western Union, and Credit Assurance.
What is the warranty for your product?
Warranty: 1 year, Lifetime maintenance
