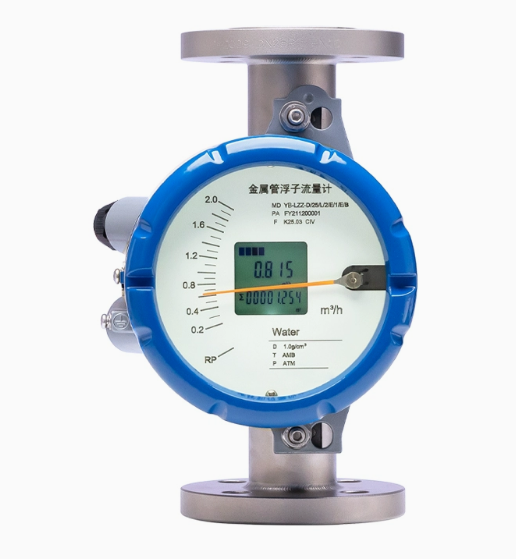

Advanced DN150 Metal Tube Rotameter Magnetic Coupling Accurate Flow Design
Advanced DN150 Metal Tube Rotameter Magnetic Coupling Accurate Flow Design
Specifications
Brand Name :
INSTE
Model Number :
INSTE H250
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
200$-1000$
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per day
Delivery Time :
3 work days
Packaging Details :
wooden package
Explosion Proof Grade :
Exia II CT5Ga, Exd II BT5Gb
Connection Form :
Stabndard:DIN2501 standard flange
Port :
Shenghai/ Shenzhen
Display Type :
Analog
Installation Height :
350mm
Output :
4-20mA
Scale Units :
L/min
Precision Class :
1.5
Applicable Medium :
Gas, Liquid
Exportation :
Two-wire System 4~20MA
Measurement Range :
0-100 L/min
Connection :
Flange
Flow Direction :
Bottom to Top
Warranty :
18 months
Temperature Rating :
Max. 100°C
Description
Advanced DN150 Metal Tube Rotameter Magnetic Coupling Accurate Flow Design

The Advanced DN150 Metal Tube Rotameter is a heavy-duty variable area flow meter engineered for high-volume industrial flow measurement. Specifically designed for DN150 (6-inch) pipelines, this meter utilizes a sophisticated non-contact magnetic coupling system to provide accurate and real-time flow data for liquids, gases, and steam in the most demanding environments.

Constructed with a robust all-metal body, the DN150 series eliminates the risks associated with glass tube meters, making it the ideal choice for high-pressure, high-temperature, and hazardous industrial applications.

Technical Specifications
Parameter Specification
Measuring Range Water (20ºC) 16~150000 l/h
Air (0.1013MPa 20ºC) 0.5~4000 m³/h
Range Ratio 10:1 (Special type 20:1)
Accuracy Class 2.5 (Special type 1.5% or 1.0%)
Working Pressure DN15~DN50 PN16MPa (Special type 25MPa)
DN80~DN150 PN10MPa (Special type 16MPa)
Pressure rating of jacket 1.6MPa
Medium Temperature Normalized type -80ºC~+220ºC
High-temperature type 300ºC
Lined with FEP type ≤85ºC
Ambient Temperature -40ºC~+120ºC (Remote display without LCD≤85ºC)
(Remote display with LCD≤70ºC)
Output Standard signal: two-wire system 4~20mA (with HART communication)
Standard signal: three-wire system 0~10mA
Alarm signal: Two-way relay output, One-way or two-approach switches
Pulse signal output: 0-1KHz isolated output
Process Connection Standard type: 24VDC±20%
AC type: 220VAC (85~265VAC) (optional)
Connection Mode Flange, Thread, Tri-clamp
Levels of Protection IP65/IP67
Ex-mark Intrinsically safe: ExiaIICT3~6
Exd type: ExdIICT4~6
Key Features
  • Robust all-metal structure design
  • Suitable for gas and liquid measurement in various industries
  • Cone-shape measuring tube design with wide measuring range and good linearity
  • Wetted parts material options: SS304, SS316L, FEP, Hastelloy C, Titanium
  • Advanced magnetic coupling system design for improved accuracy and stability
  • Dual display: upper row shows instantaneous flow, lower row shows total flow
  • Digital LCD display allows on-site flow range correction for different media
  • Six-level data backup technology with automatic total flow save during power-off
  • Supports battery power supply in addition to AC/DC power
  • Magnetic pen operation without opening cover; key operation also available
  • HART protocol compatibility for configuration via handheld operator or software
